Windows




Moveable Window Schematics

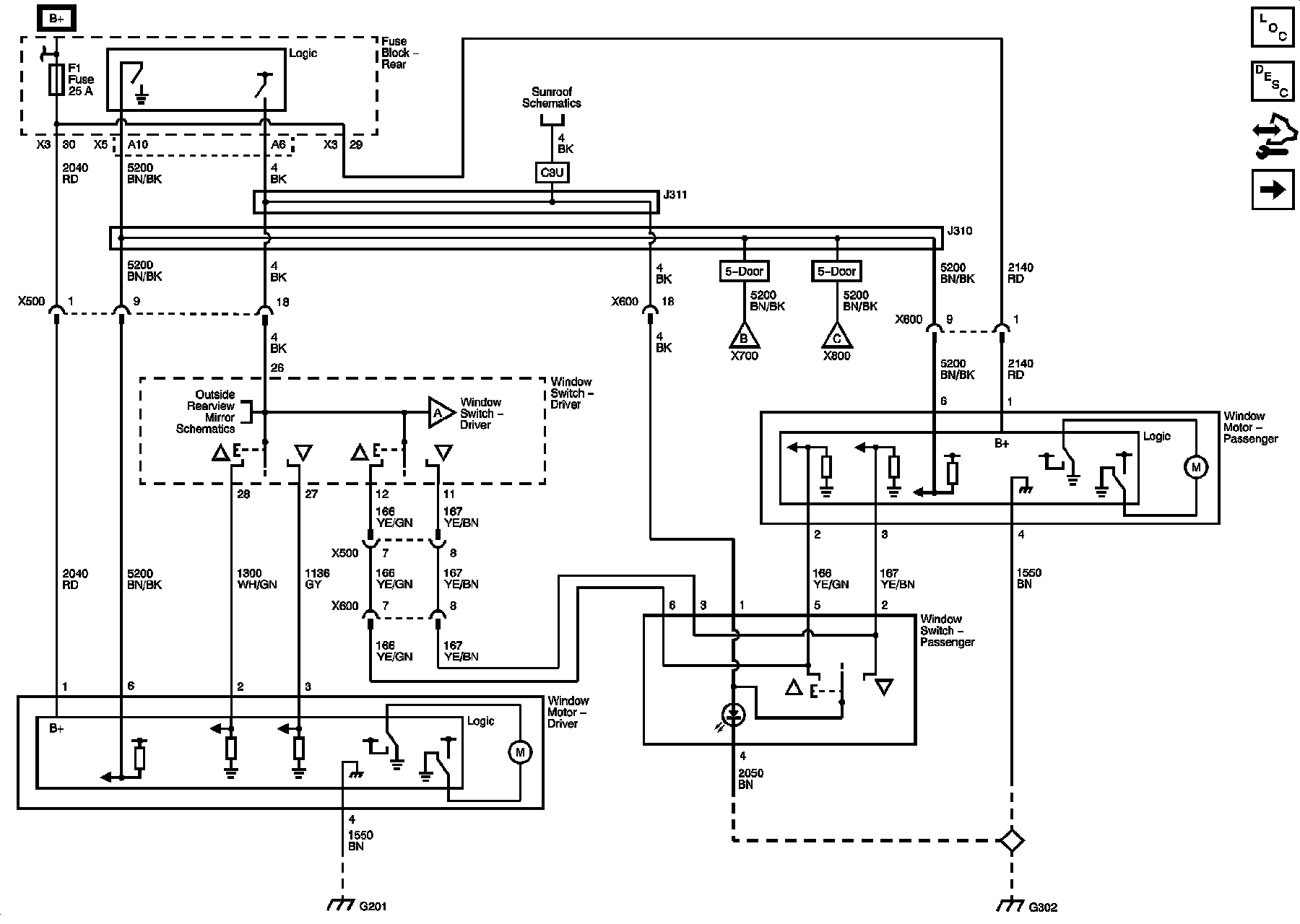

Driver/Passenger Window Motors and Switches

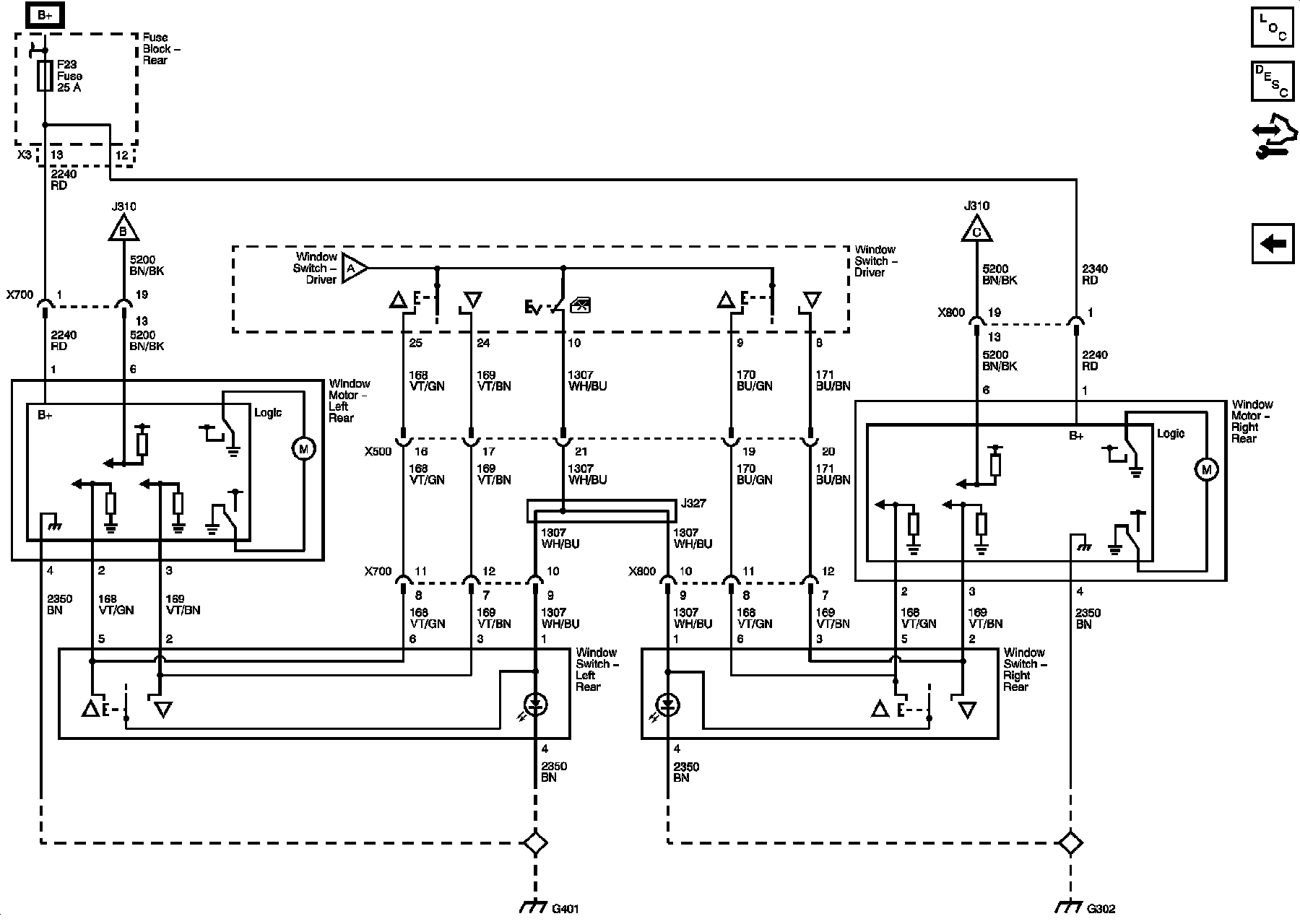

Left/Right Rear Window Motors and Switches
