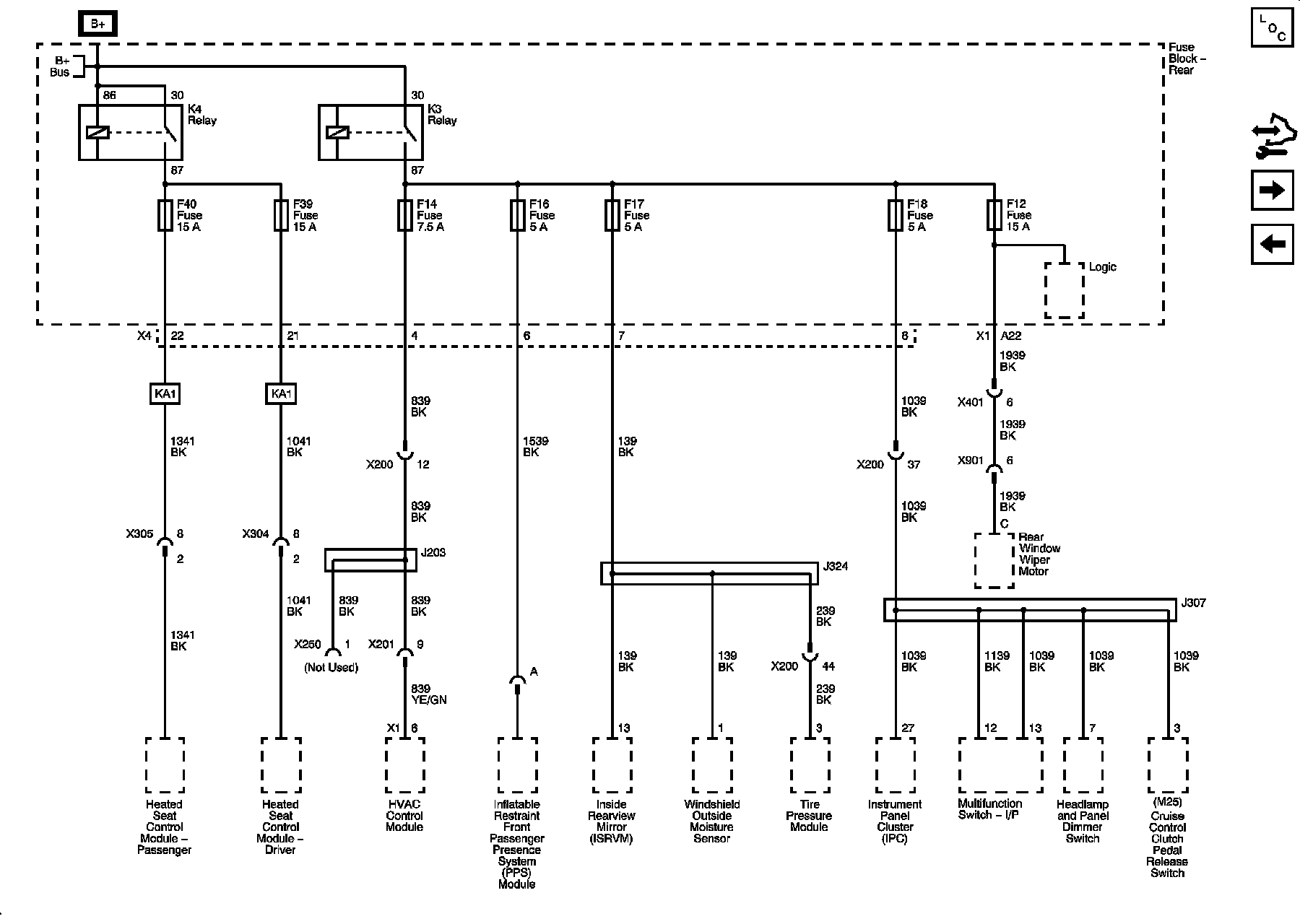

Home >> Saturn >> 2009 >> Astra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Diagrams >> Power Distribution Diagram 9
