Air Dam: Service and Repair

Front Air Deflector Extension Replacement


Removal Procedure

1.Raise the vehicle.

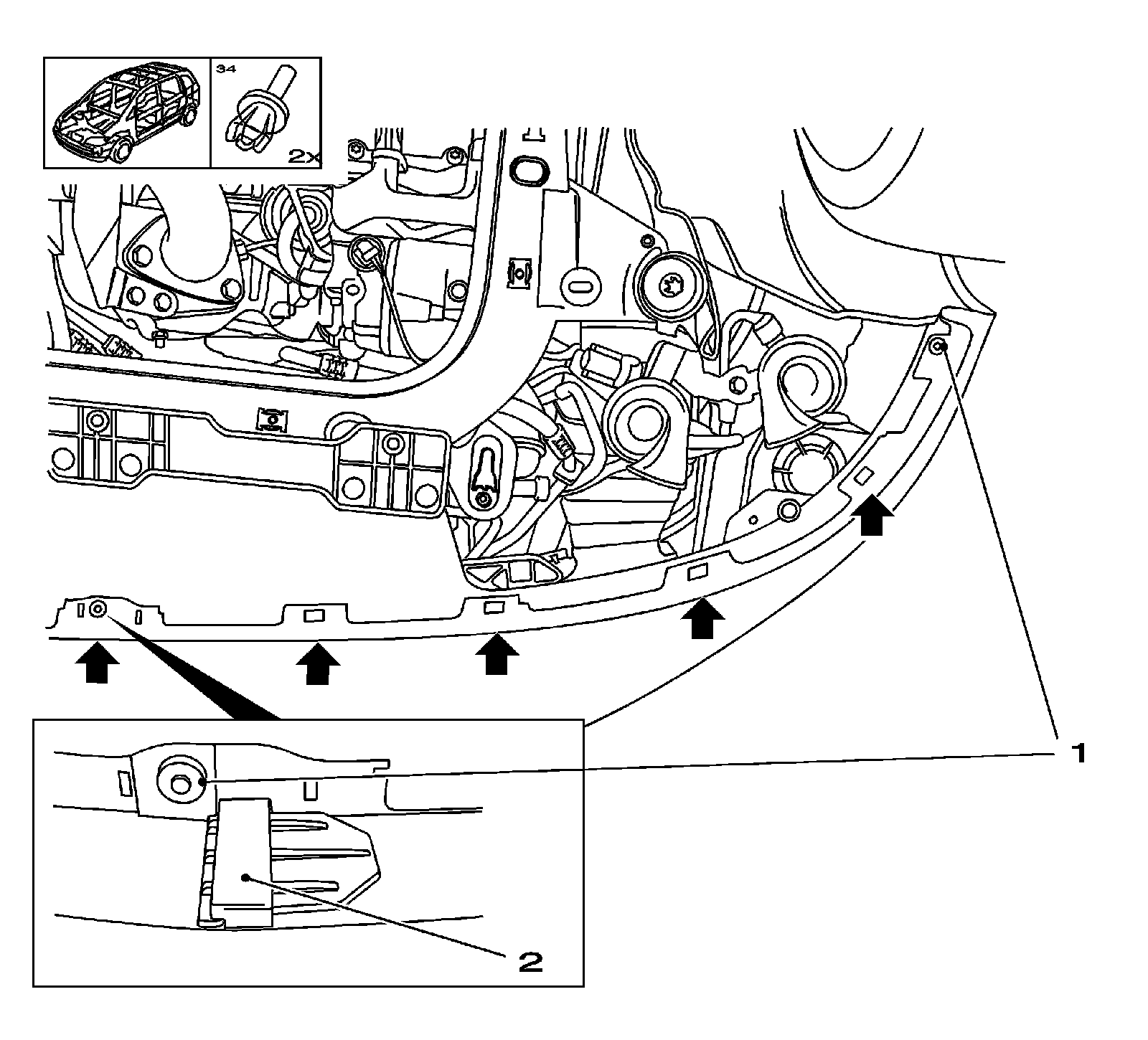

2.Remove the air deflector extension.

-Remove the 2 body-bound rivets (1).

-Release the 5 retainers (arrows).

-Remove from the guide (2).

Installation Procedure

1.Install the air deflector extension.

-Insert into the guide.

-Install the 5 retainers.

-Install 2 body-bound rivets.

2.Lower the vehicle.
