Front Seat Back Cushion Pad Support Replacement

Front Seat Back Cushion Pad Support Replacement

Removal Procedure

1. Remove the pad, front seat backrest. Refer to Front Seat Back Cushion Pad Replacement (Front Seat Back Cushion Pad Replacement).




2. Remove the cushion pad support.

* Remove the bolt.

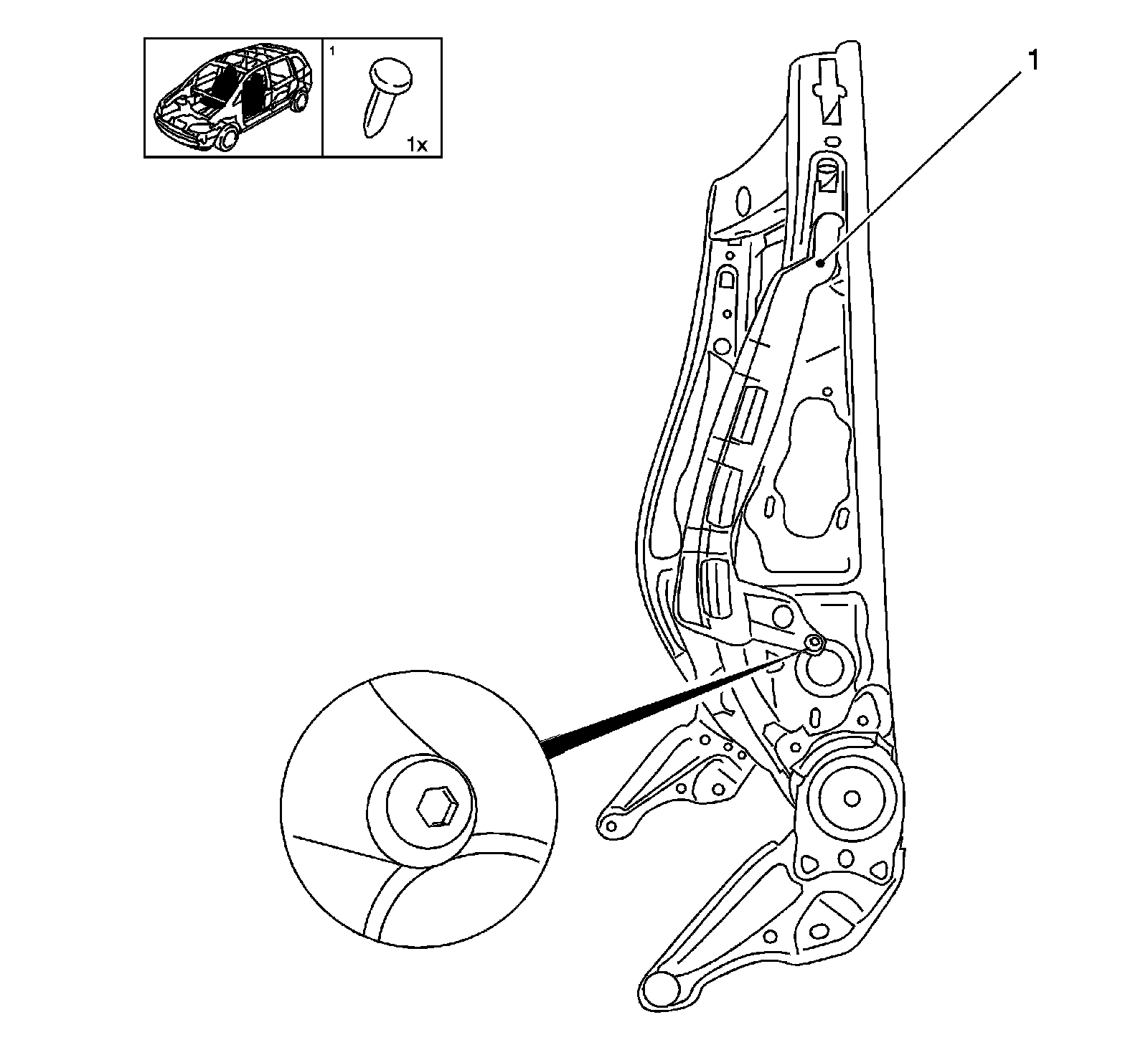

* Release the panel (1).

Installation Procedure

Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the cushion pad support.
Install the panel.

Tighten the bolt to 3 Nm (26 lb in).

2. Install the pad, front seat backrest. Refer to Front Seat Back Cushion Pad Replacement (Front Seat Back Cushion Pad Replacement).
