Automatic Transmission Controls Schematics

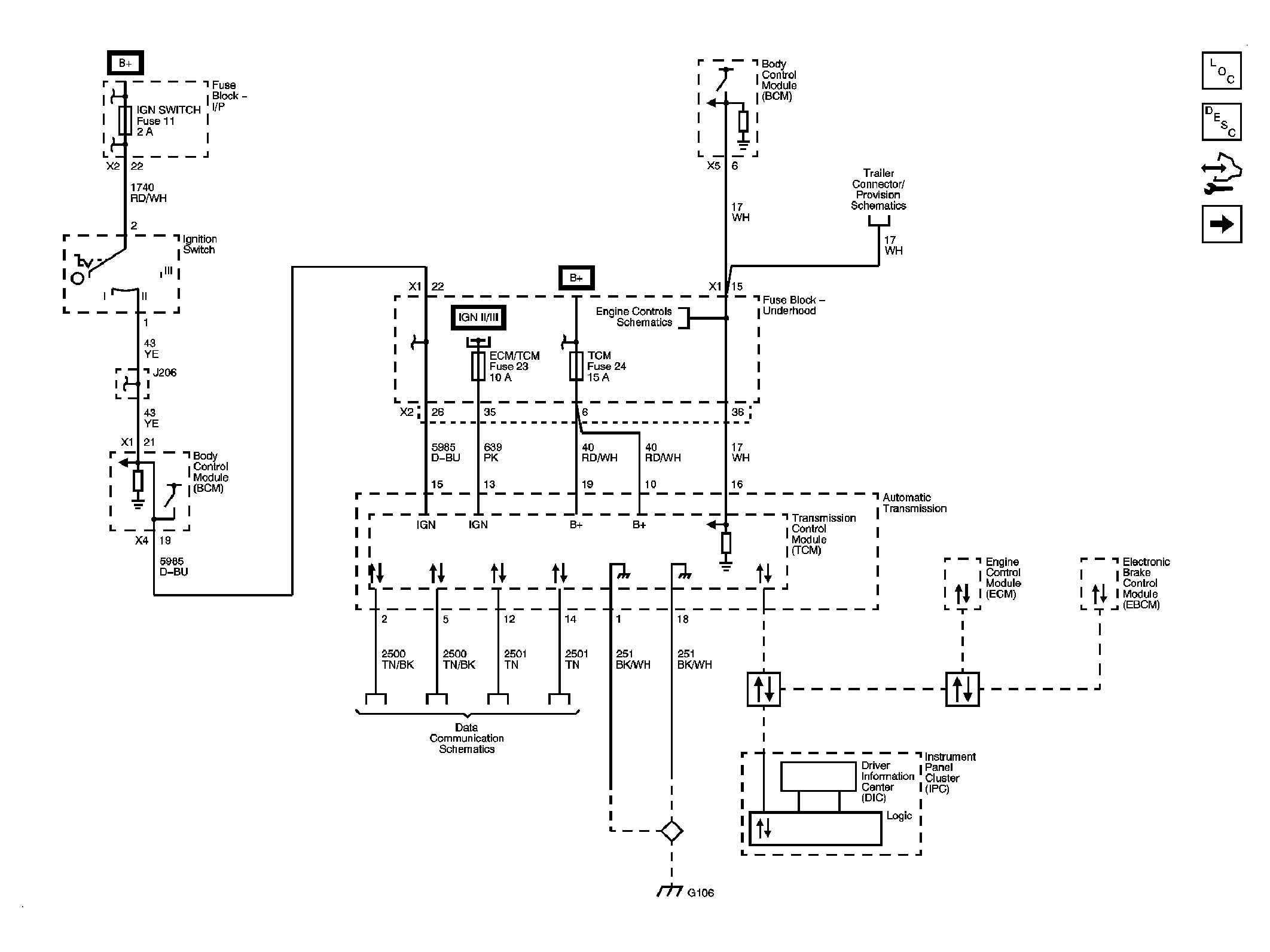

Fig 1: Module Power, Ground, Data Communications, MIL And Brake Signal (6T70/6T75) - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Pressure And Shift Controls (6T70/6T75) - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: ISS, OSS, TFP And TFT (6T70/6T75) - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: IMS And Tap Up/Tap Down (6T70/6T75) - Schematic

Courtesy of GENERAL MOTORS CORP.
