Power Steering System Wiring Schematics

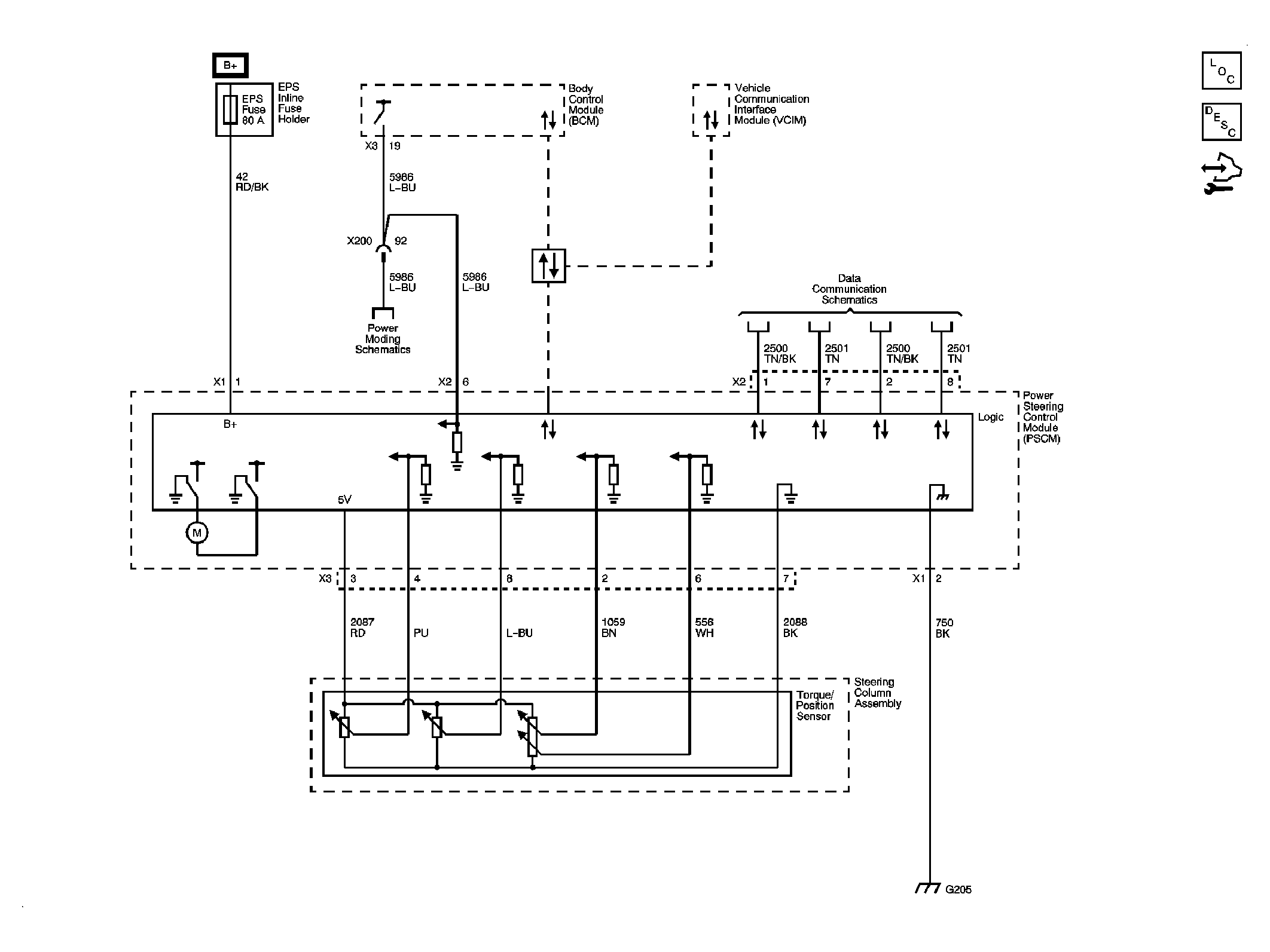

Fig 1: Power Steering System Wiring Schematic

GM1883272

Courtesy of GENERAL MOTORS CORP.
