SIR Schematics

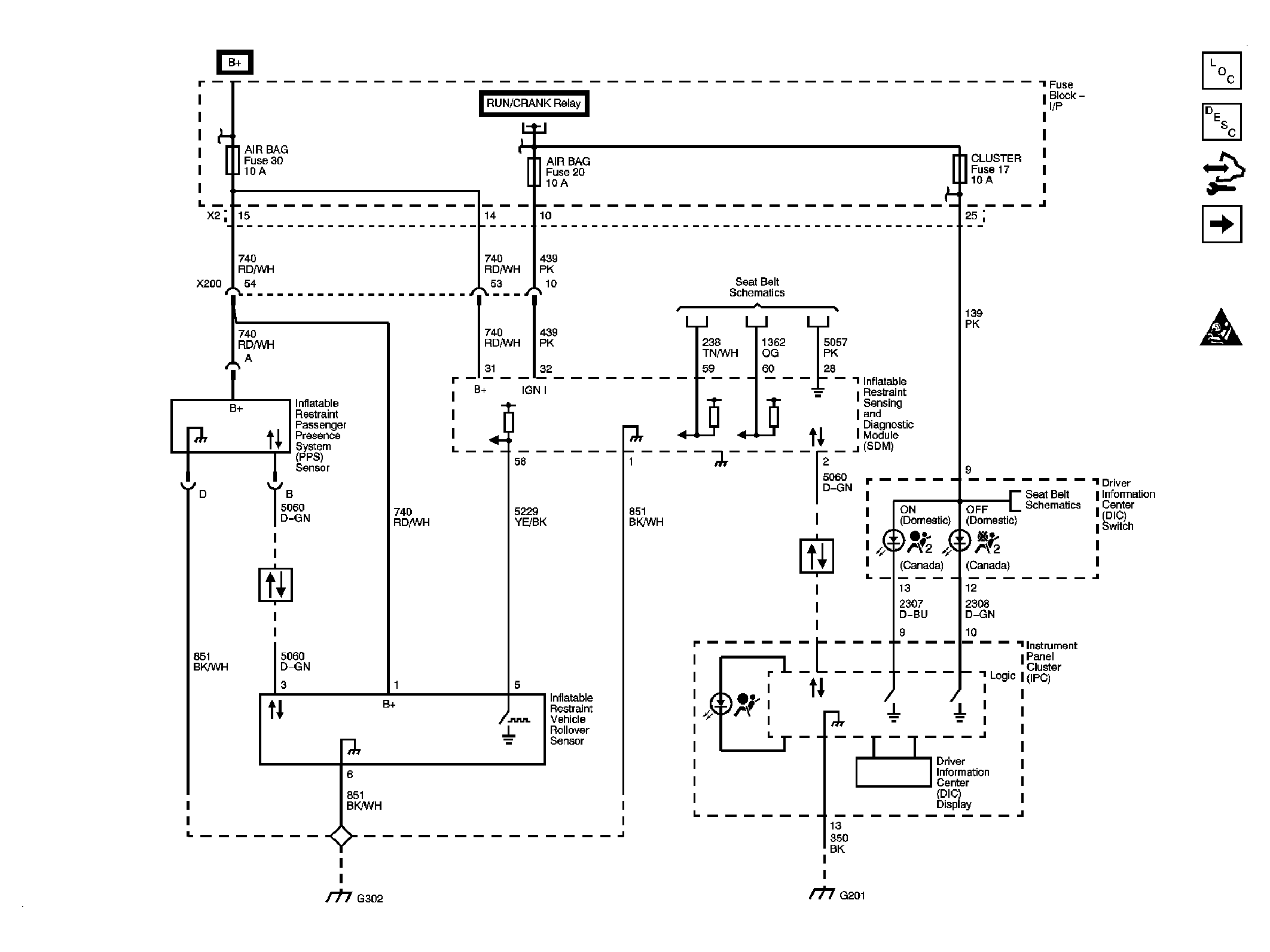

Fig 1: Module Power, Grounds And Data Communications - Schematic
GM1883489Courtesy of GENERAL MOTORS CORP.

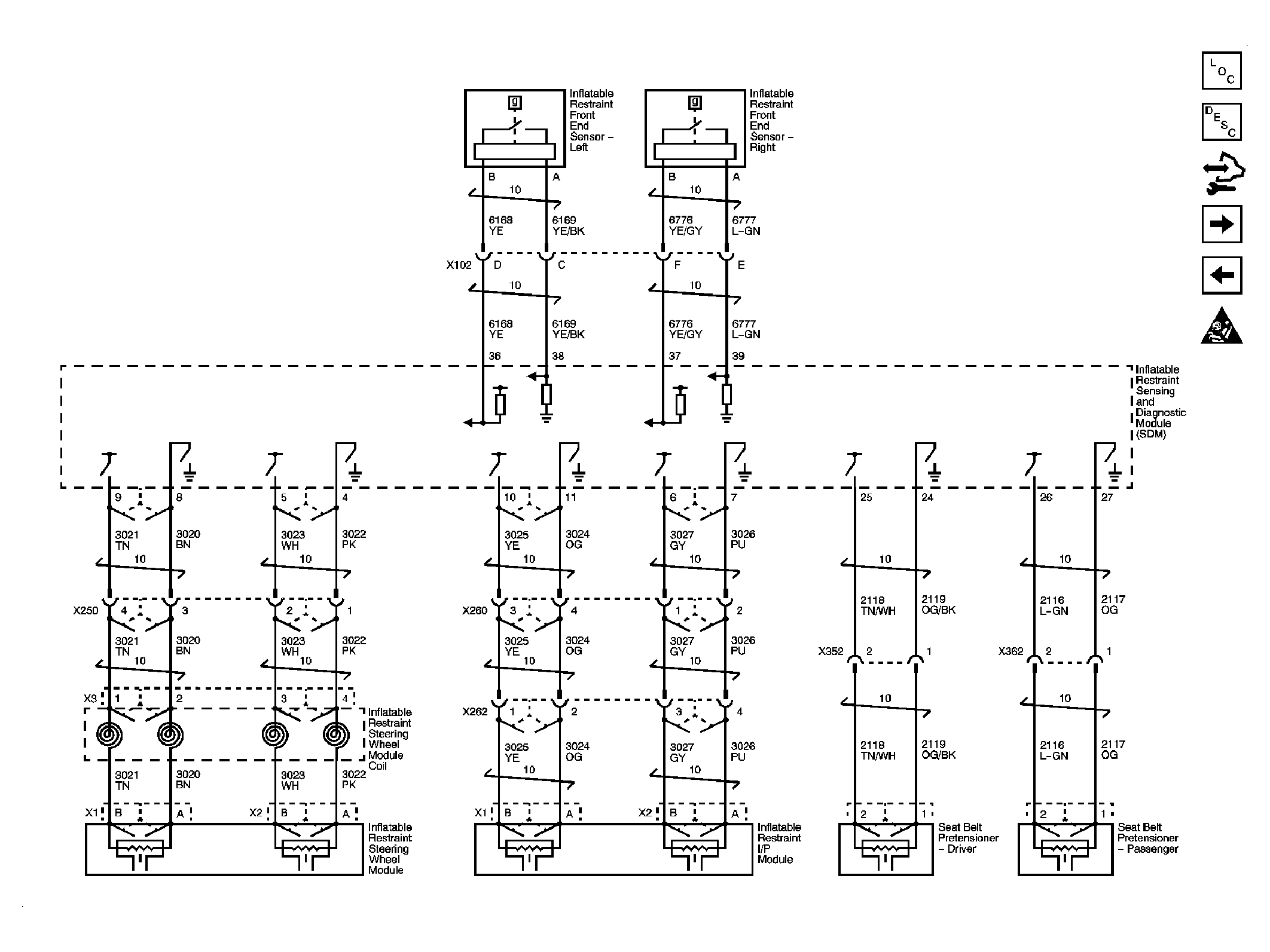

Fig 2: Front Sensors, Seat Belt Pretensioners - Schematic
GM1883490Courtesy of GENERAL MOTORS CORP.

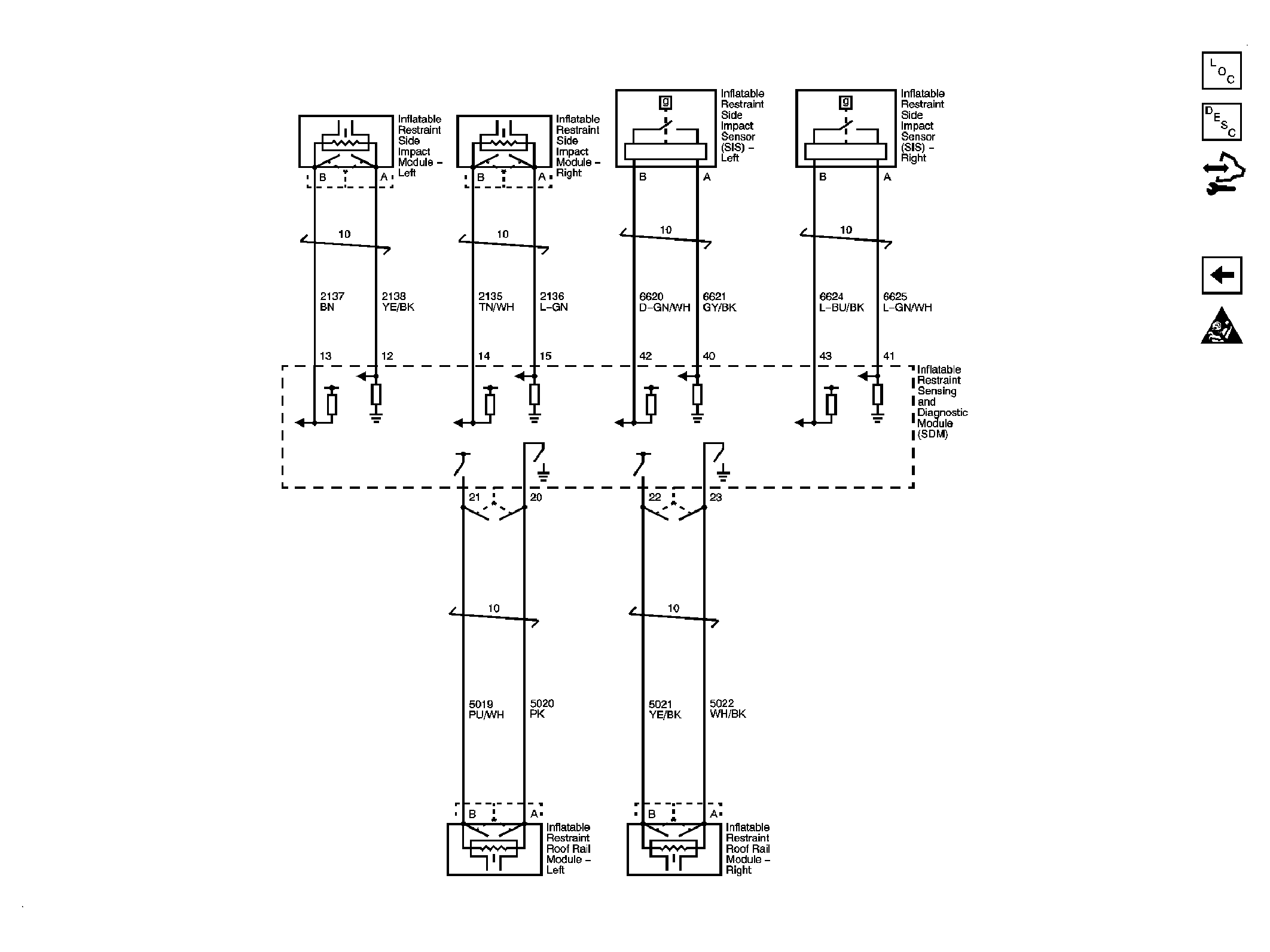

Fig 3: Roof Rail Modules And Side Impact Sensors - Schematic
GM1883491Courtesy of GENERAL MOTORS CORP.
