Hybrid Controls Schematics

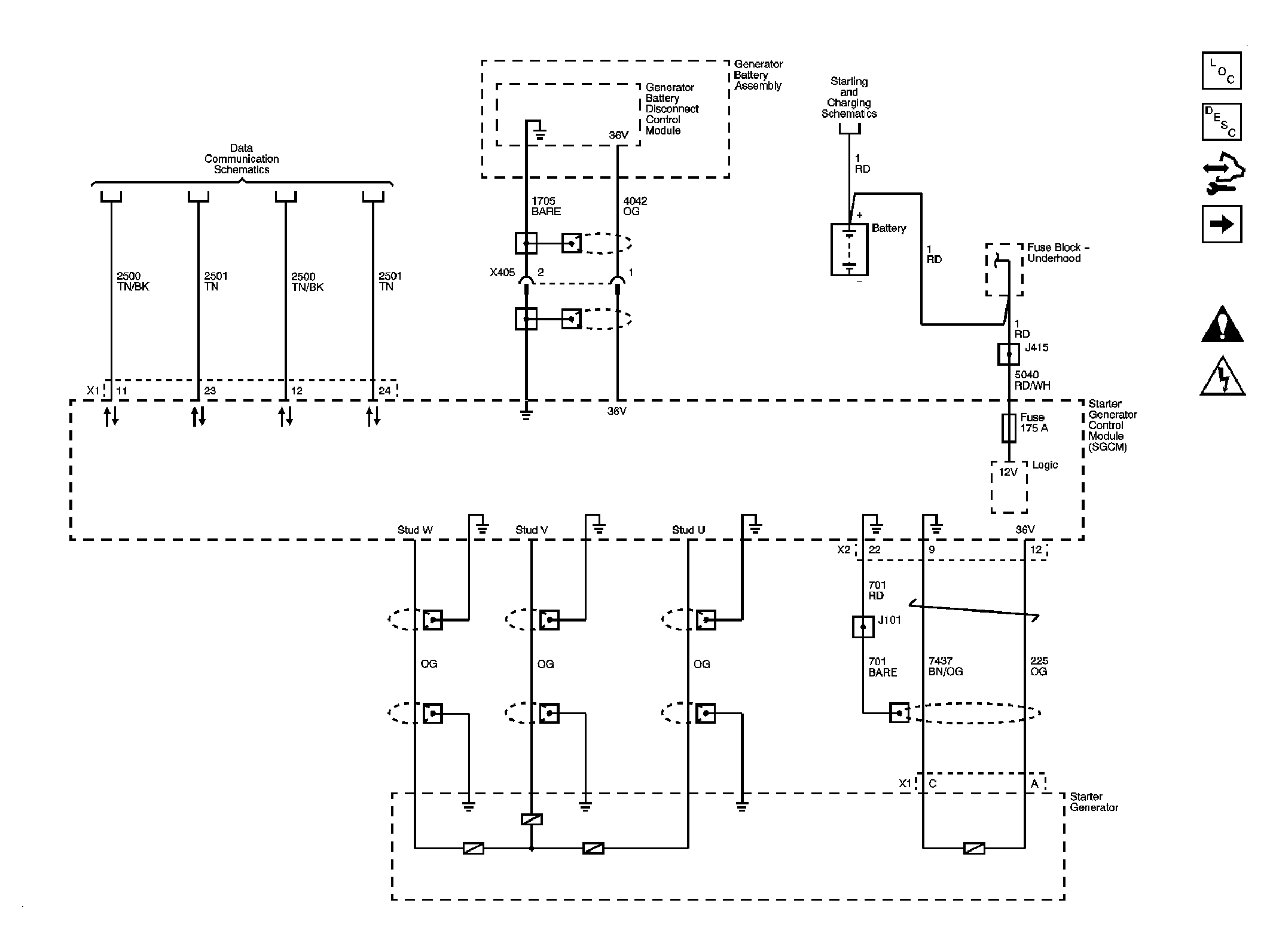

Fig 1: A/C Field Voltage - Schematic

GM1999309

Courtesy of GENERAL MOTORS CORP.

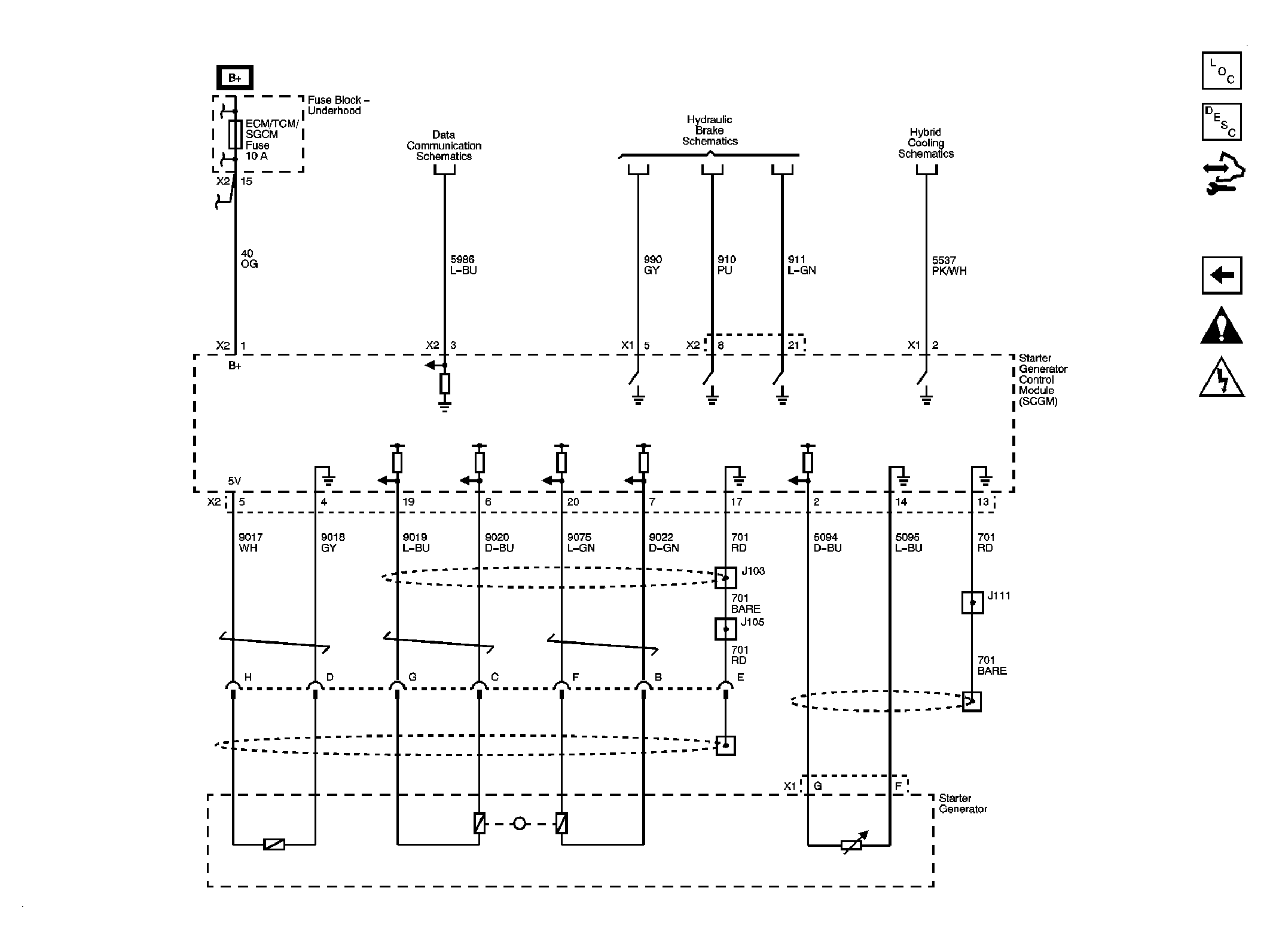

Fig 2: Motor Controls - Schematic

GM1999310

Courtesy of GENERAL MOTORS CORP.
