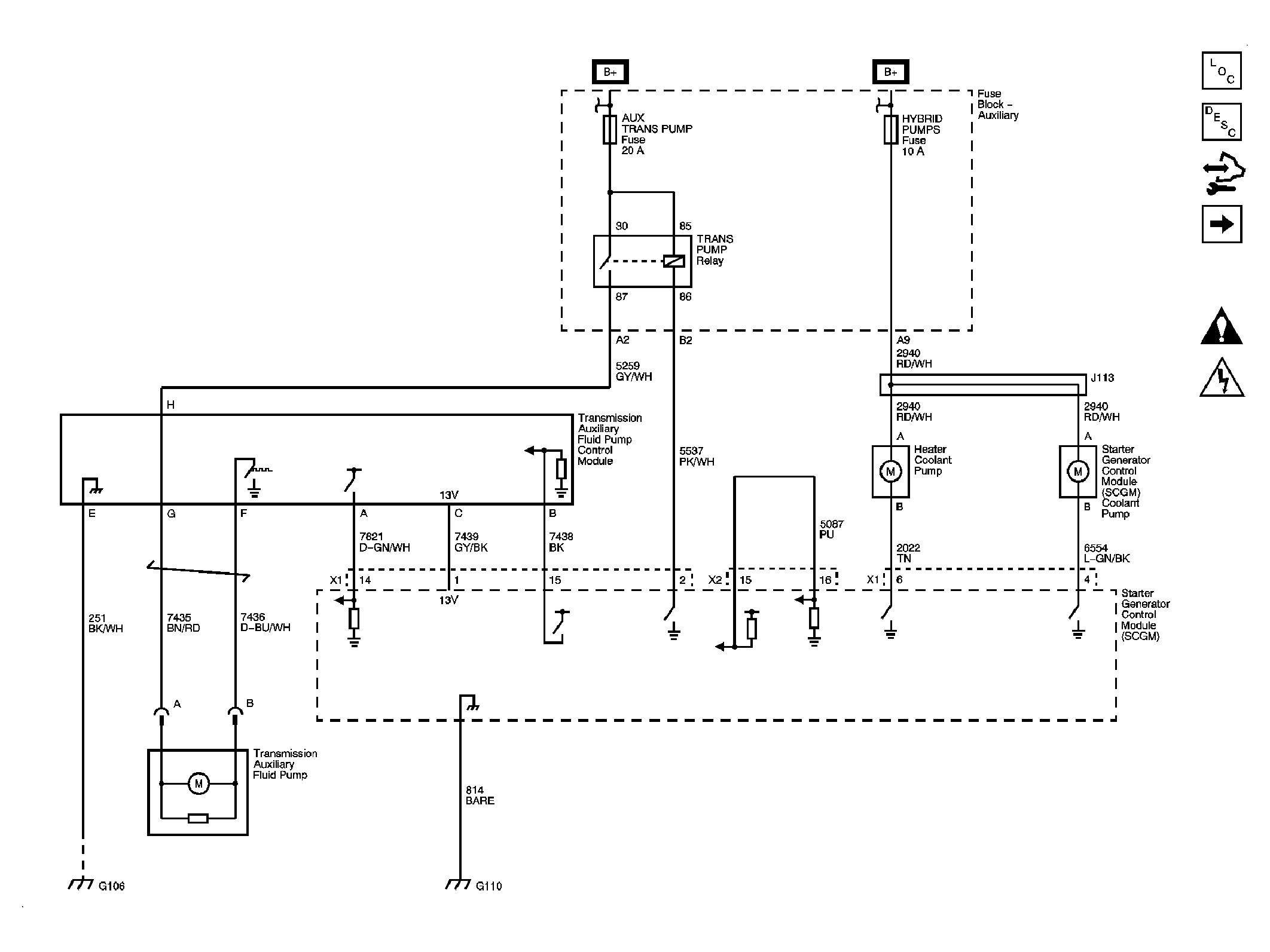

Home >> Saturn >> 2008 >> Vue Red Line, AWD >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Cooling Systems >> Hybrid Engine Cooling System >> Schematic and Routing Diagrams >> Hybrid Cooling Schematics
