Hybrid Energy Storage Schematics

Fig 1: Power, Ground And Serial Data - Schematic
GM1999316Courtesy of GENERAL MOTORS CORP.

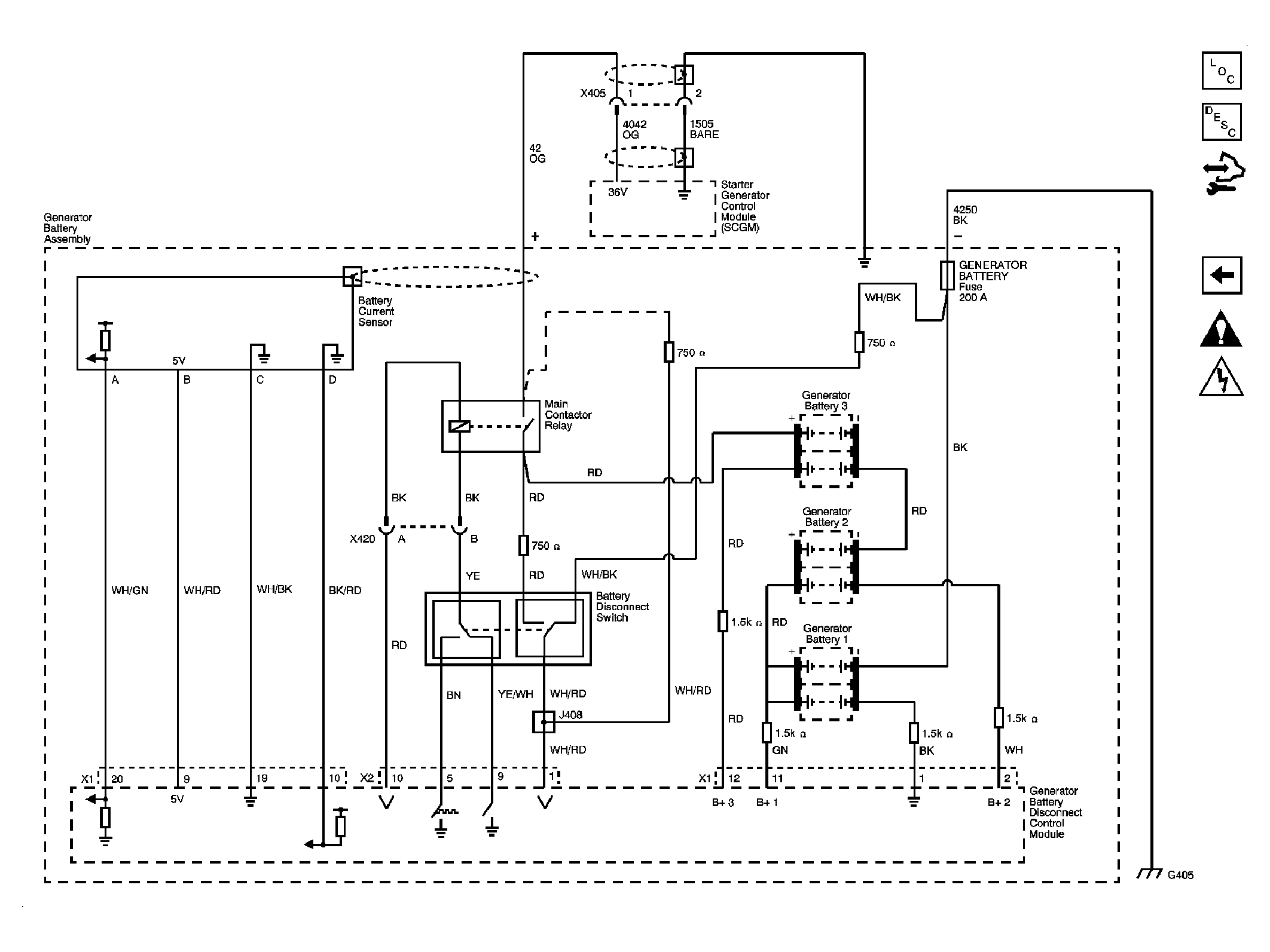

Fig 2: Batteries, Battery Current Sensor, Battery Disconnect Switch And Main Contactor Relay - Schematic
GM1999318Courtesy of GENERAL MOTORS CORP.
