HVAC Schematics

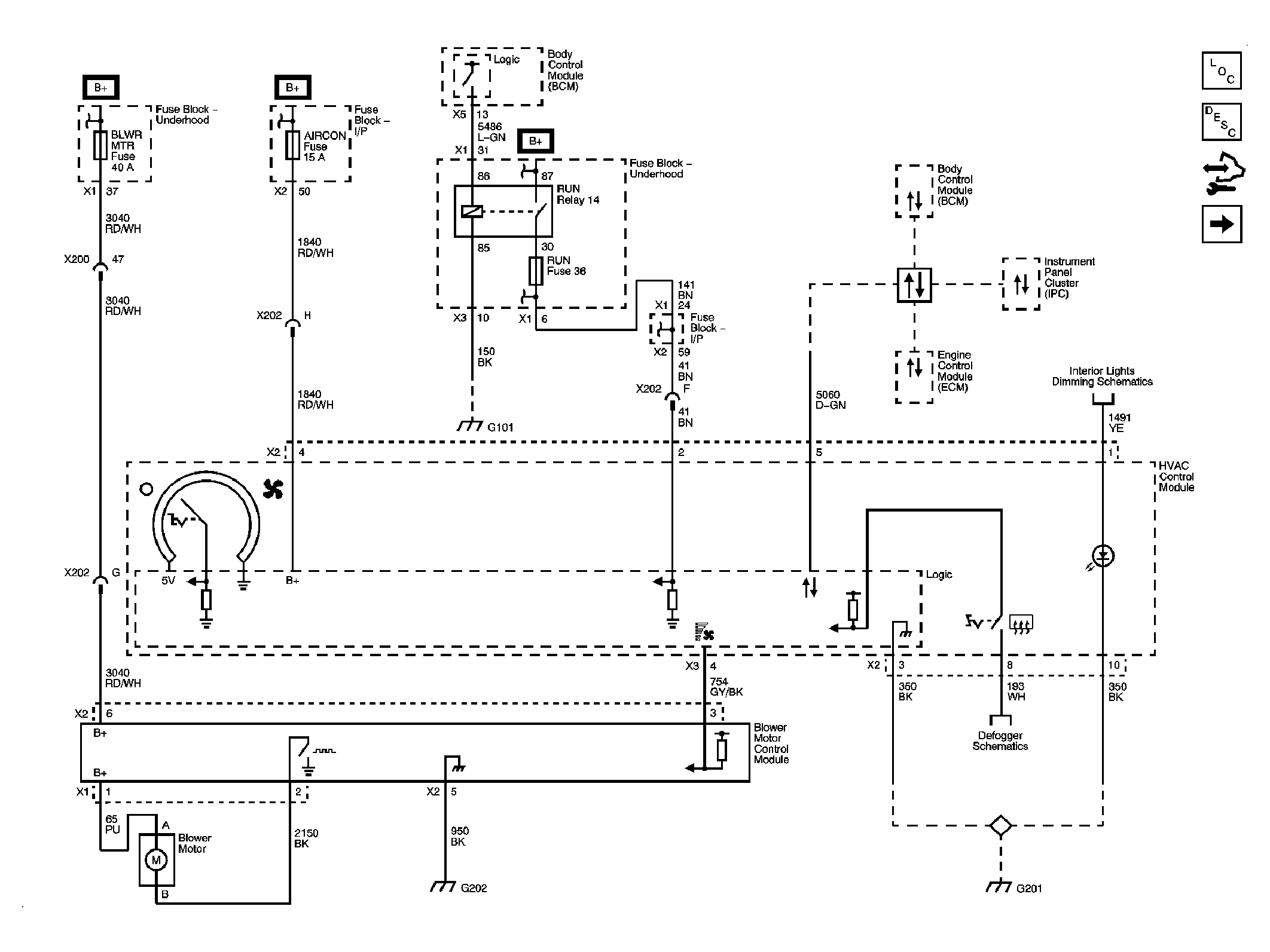

Fig 1: Module Power And Grounds - Schematic
GM1883284Courtesy of GENERAL MOTORS CORP.

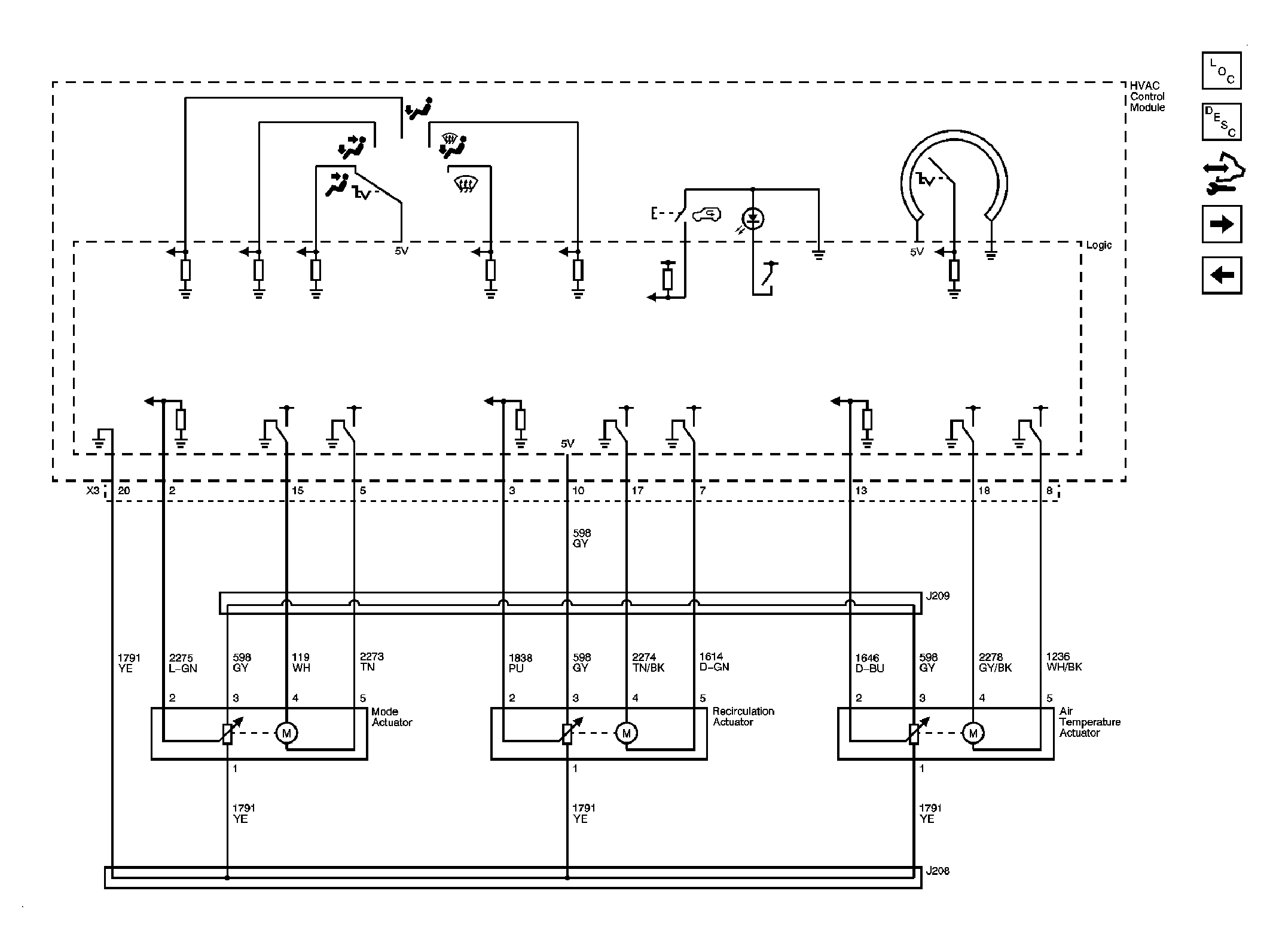

Fig 2: Mode Controls - Schematic
GM1883286Courtesy of GENERAL MOTORS CORP.

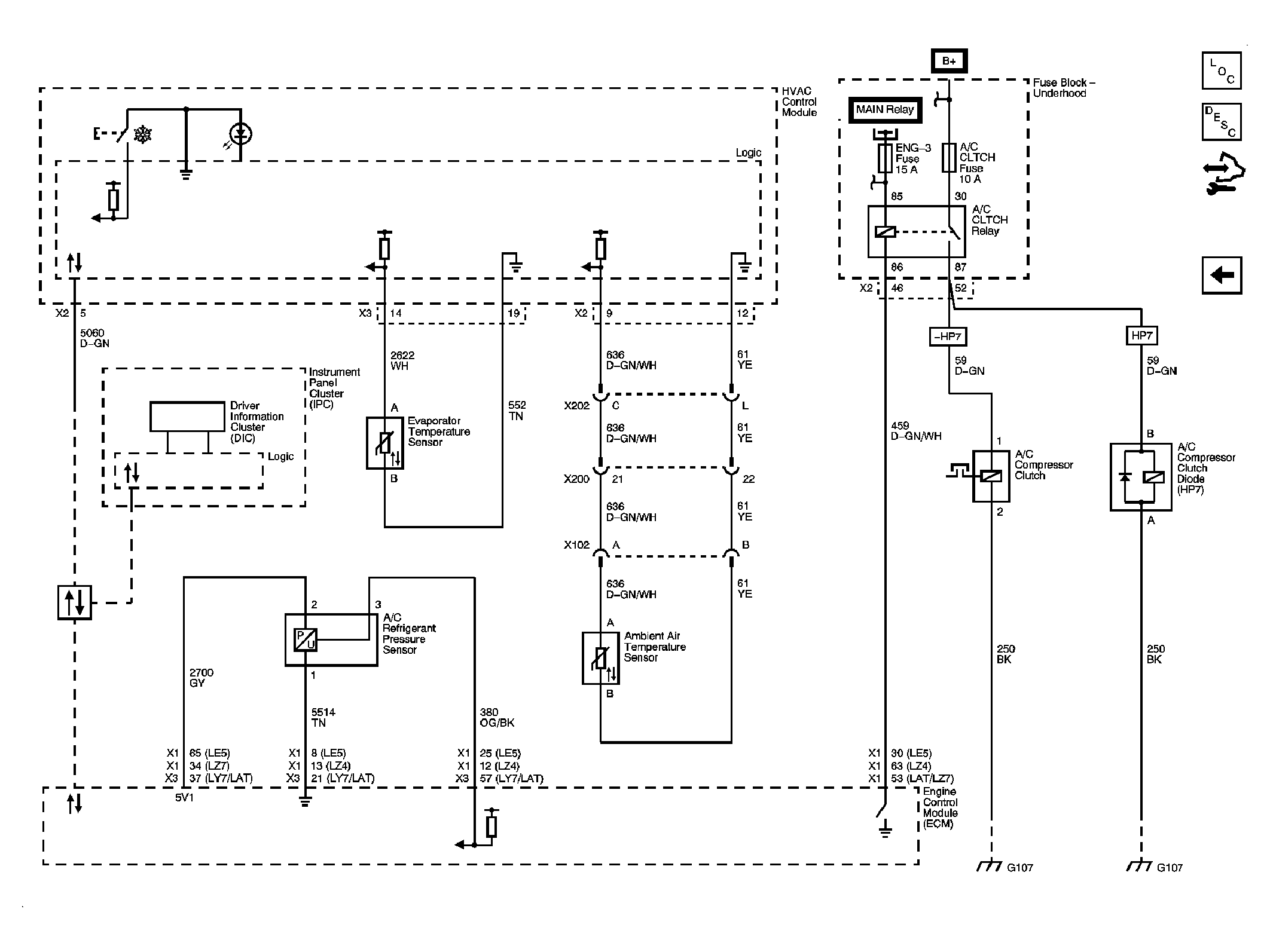

Fig 3: Compressor Controls - Schematic
GM1883289Courtesy of GENERAL MOTORS CORP.
