Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

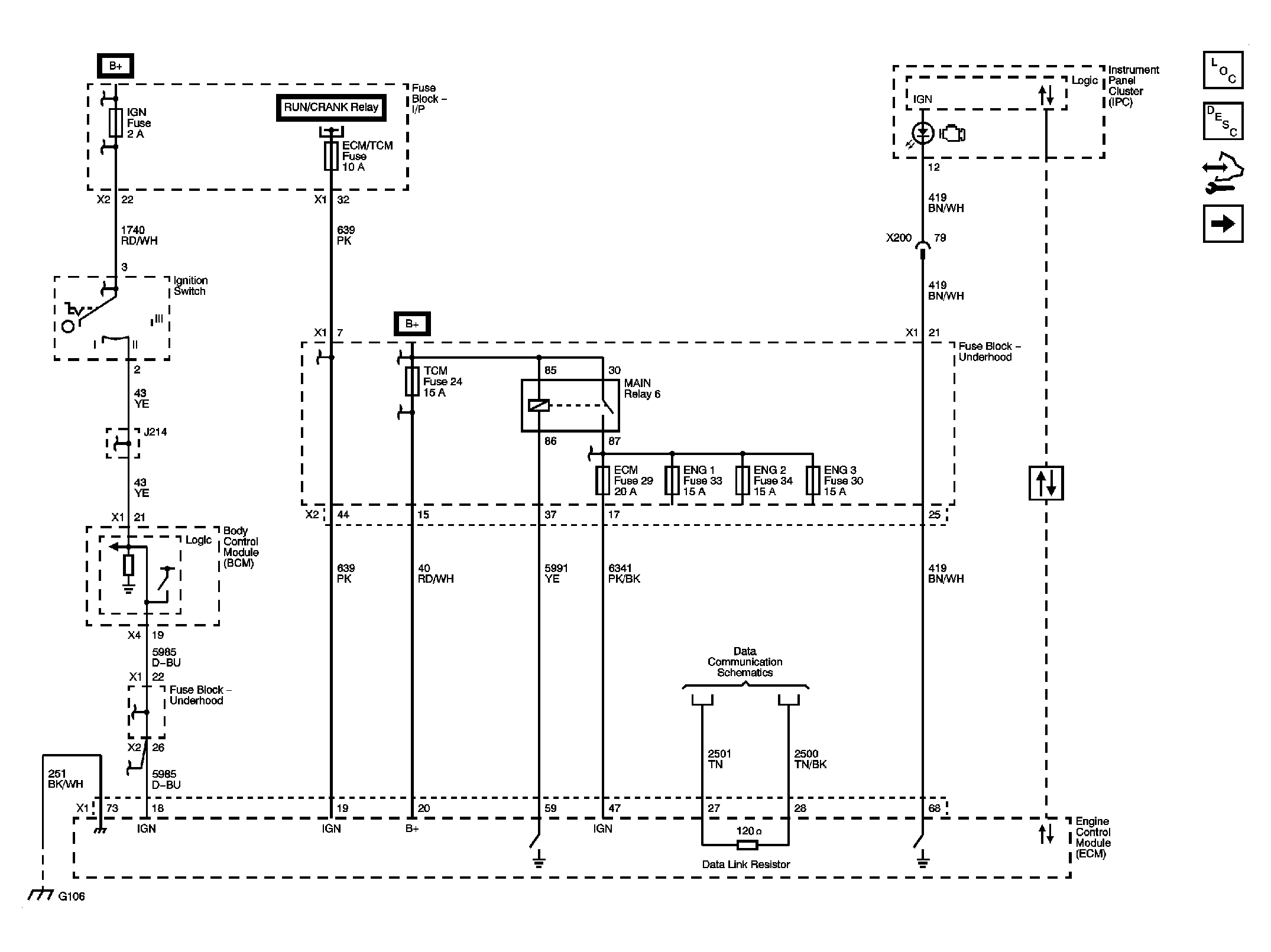

Fig 1: Module Power, Ground, Serial Data, And MIL - Schematic

Courtesy of GENERAL MOTORS CORP.

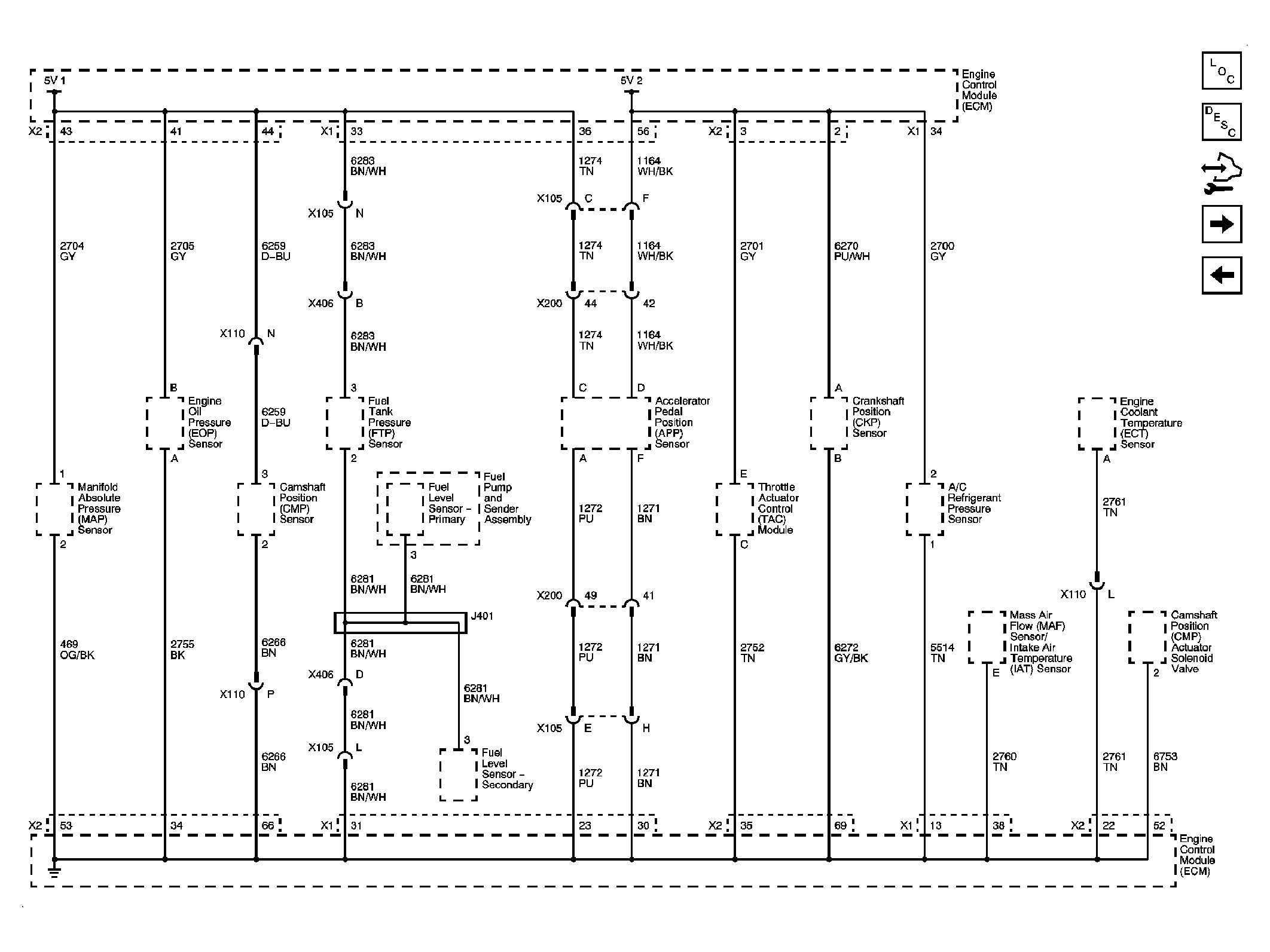

Fig 2: 5 Volt 1 And Low Reference - Schematic

Courtesy of GENERAL MOTORS CORP.

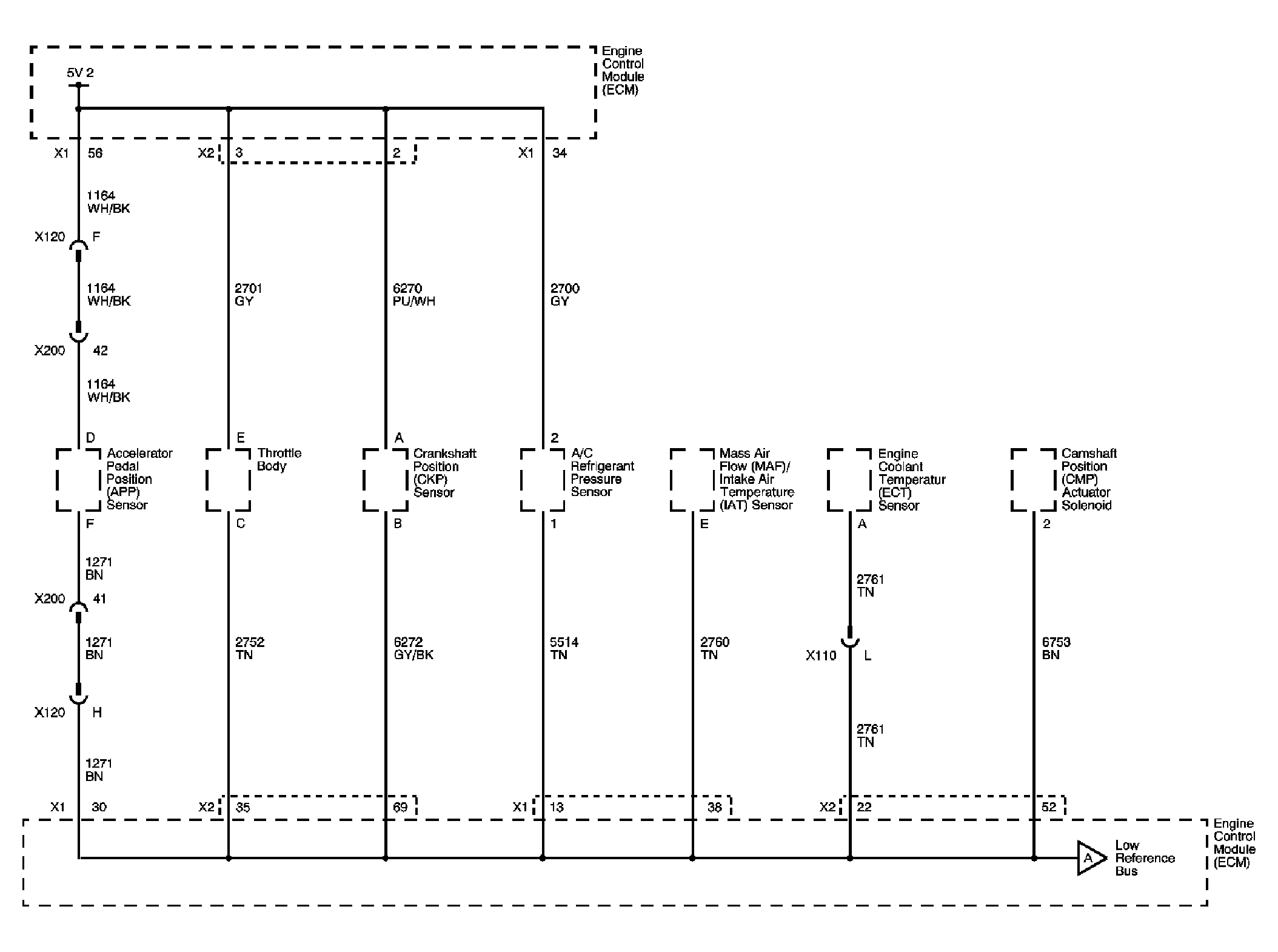

Fig 3: 5 Volt 2 And Low Reference - Schematic

Courtesy of GENERAL MOTORS CORP.

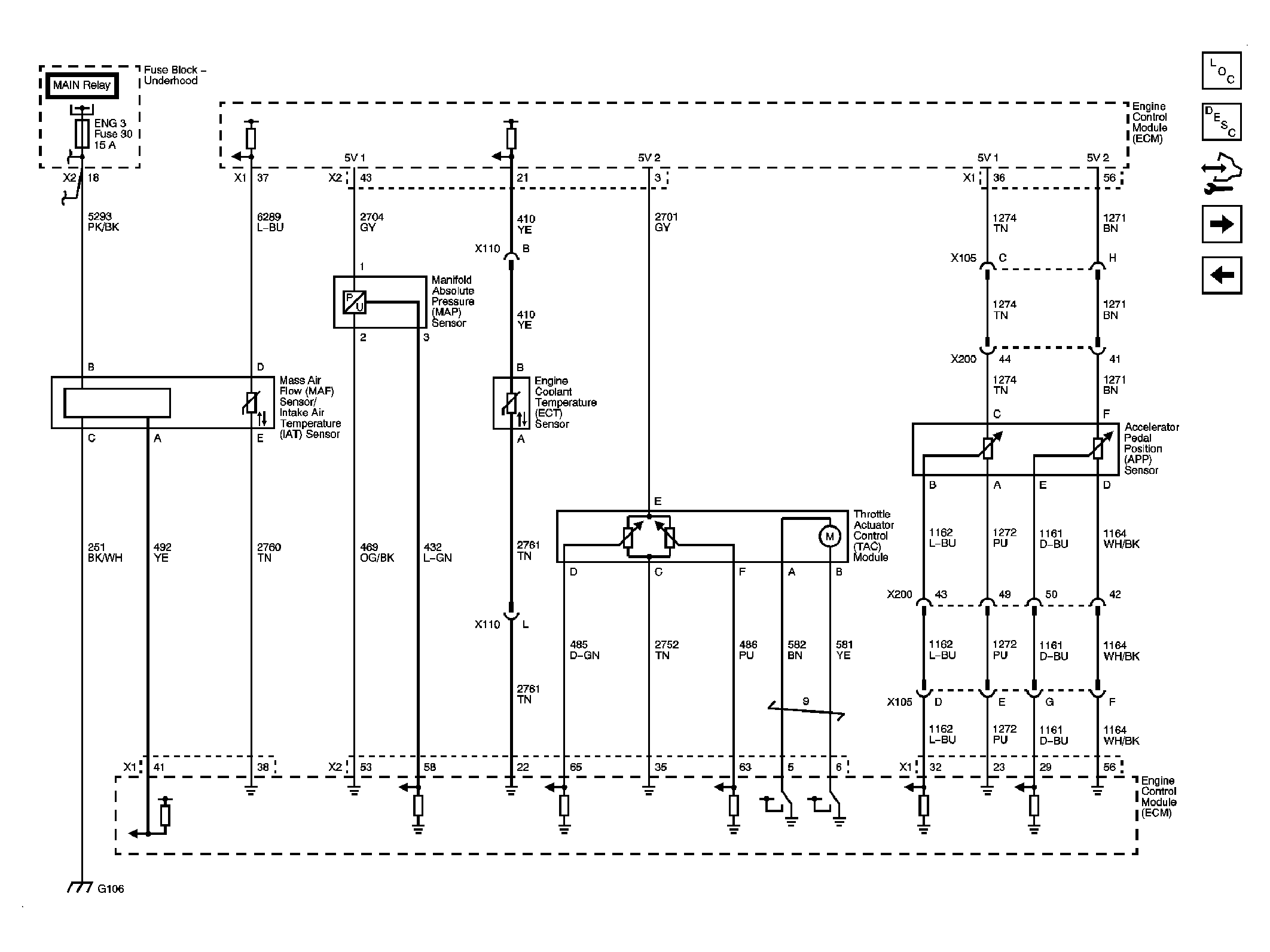

Fig 4: Engine Data Sensors - Pressure And Temperature - Schematic

Courtesy of GENERAL MOTORS CORP.

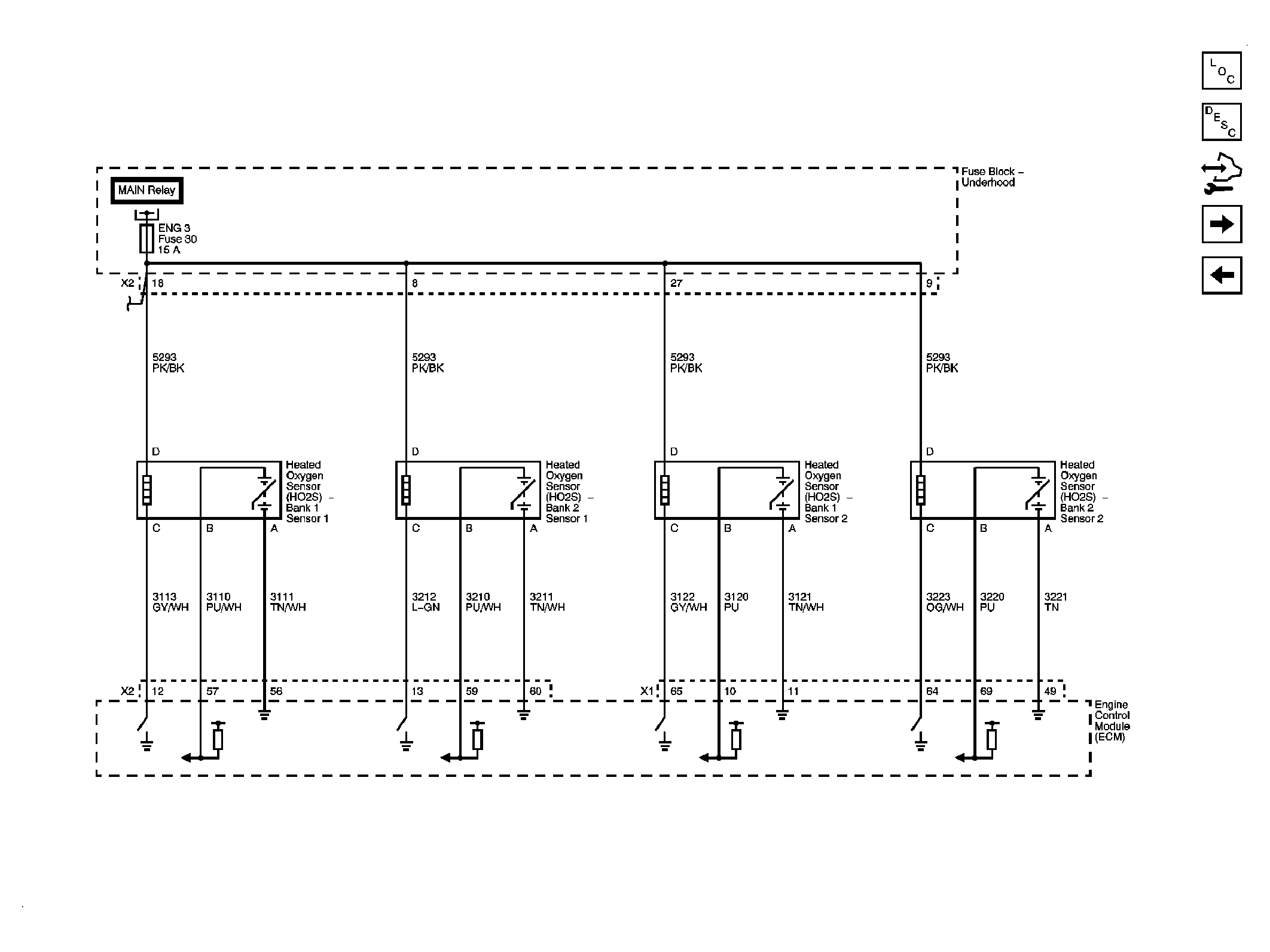

Fig 5: Engine Data Sensors - Heated Oxygen Sensors (HO2S) - Schematic

Courtesy of GENERAL MOTORS CORP.

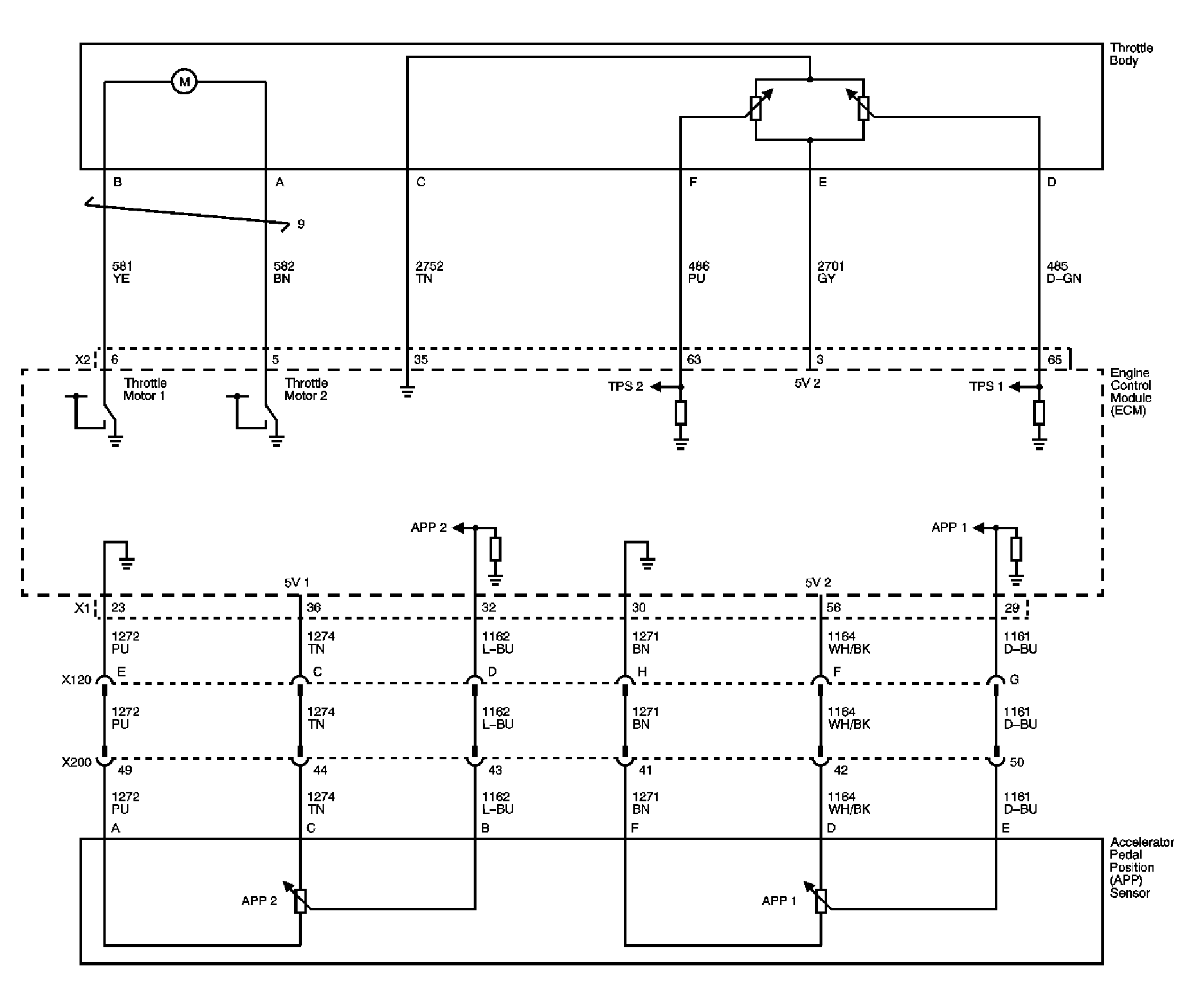

Fig 6: Engine Data Sensors - Throttle Controls - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition Controls - Ignition System Coils - Schematic

Courtesy of GENERAL MOTORS CORP.

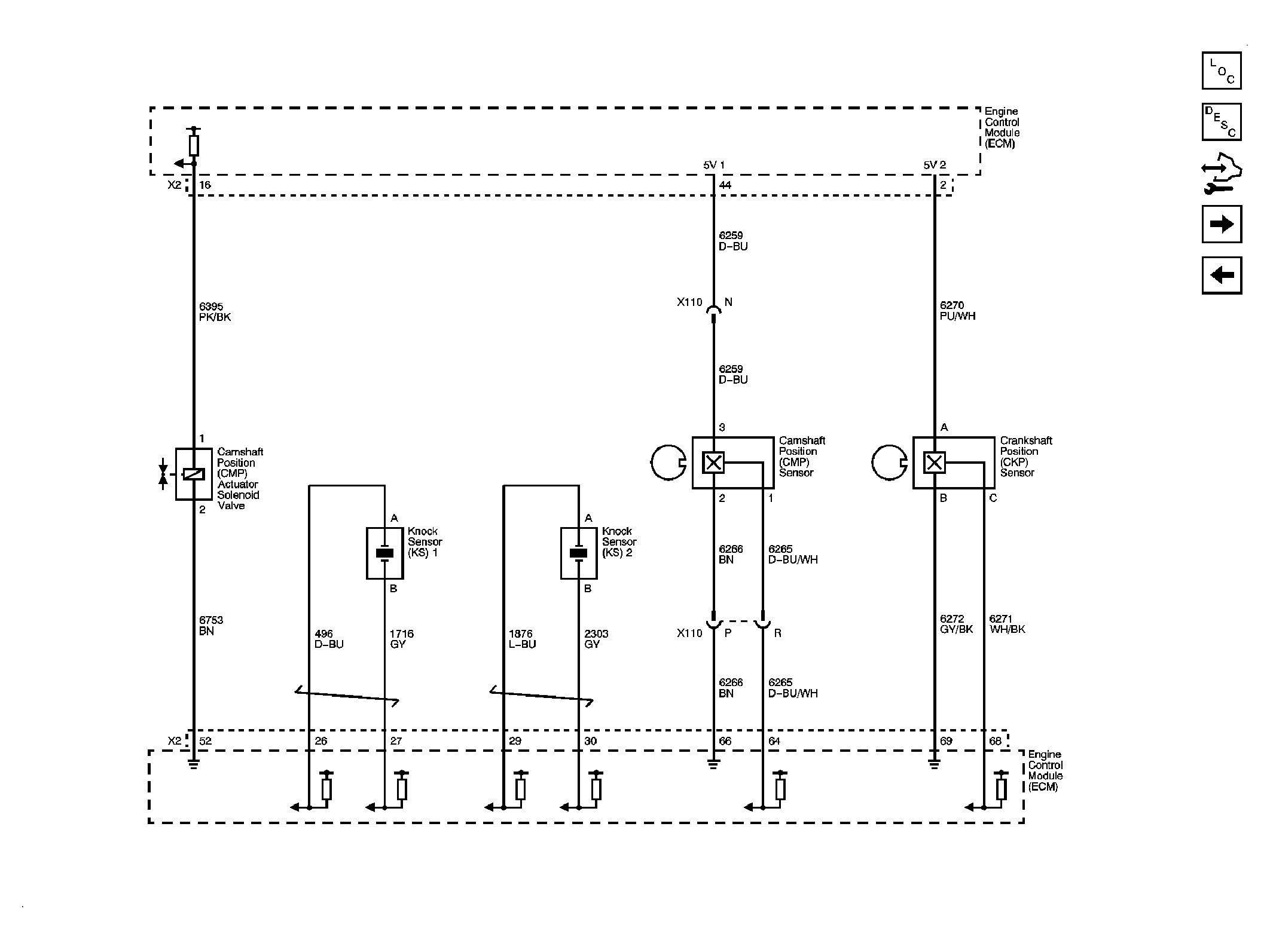

Fig 8: Ignition Controls - Sensors 1 Of 2 - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: Ignition Controls - Sensors 2 Of 2 - Schematic

Courtesy of GENERAL MOTORS CORP.

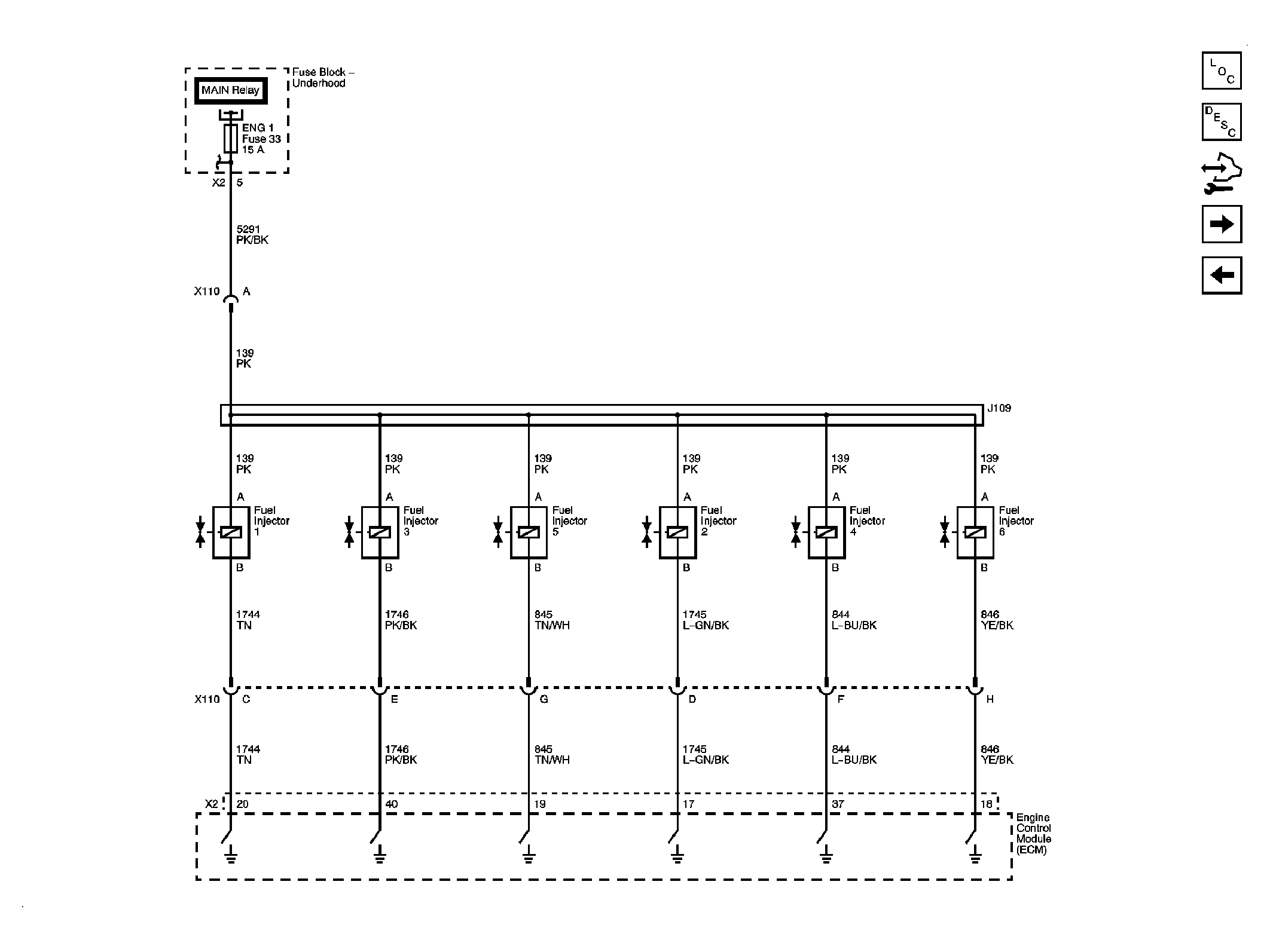

Fig 10: Fuel Controls - Fuel Injectors - Schematic

Courtesy of GENERAL MOTORS CORP.

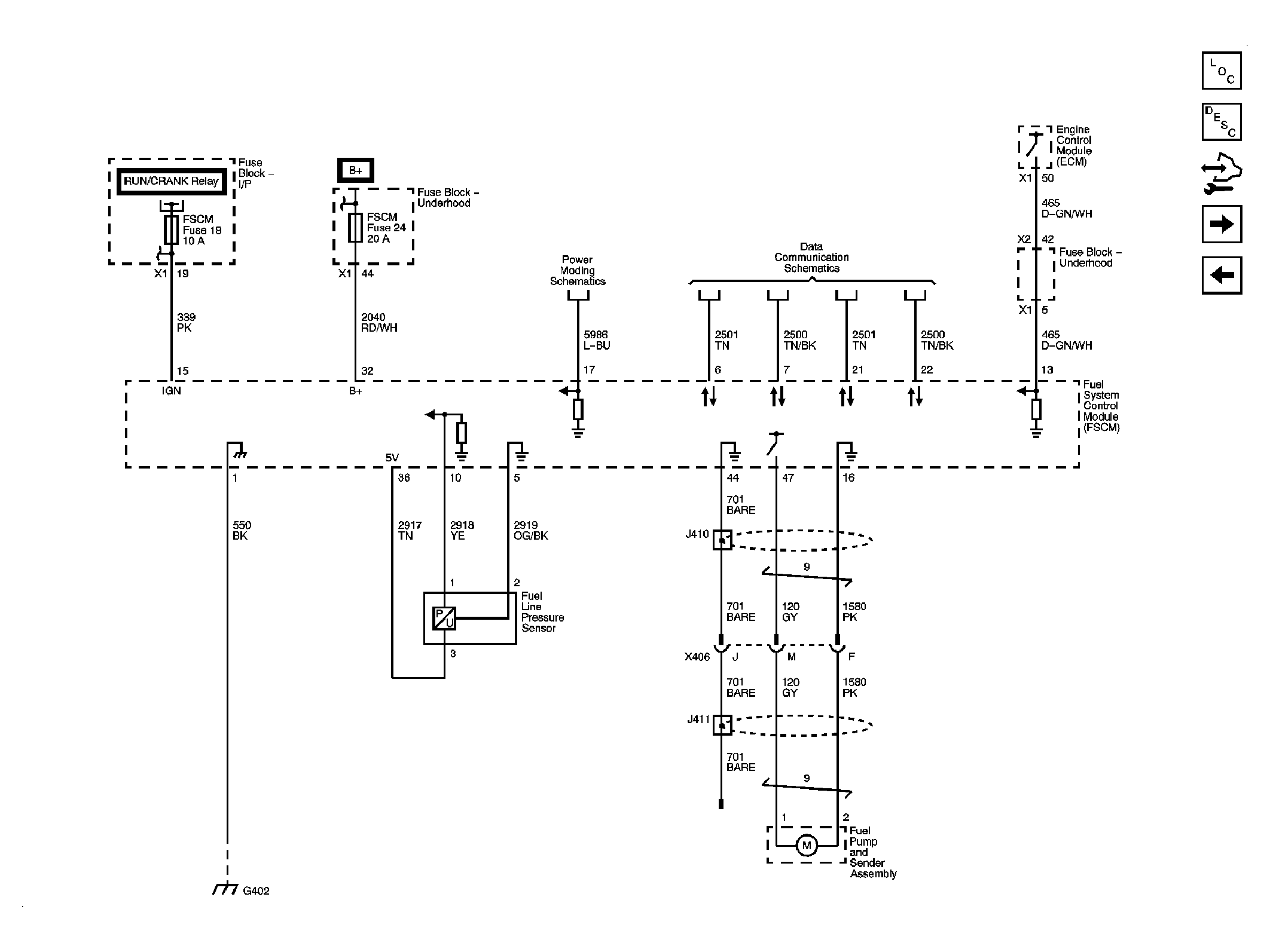

Fig 11: Fuel Controls - Fuel Pump Controls - Schematic

Courtesy of GENERAL MOTORS CORP.

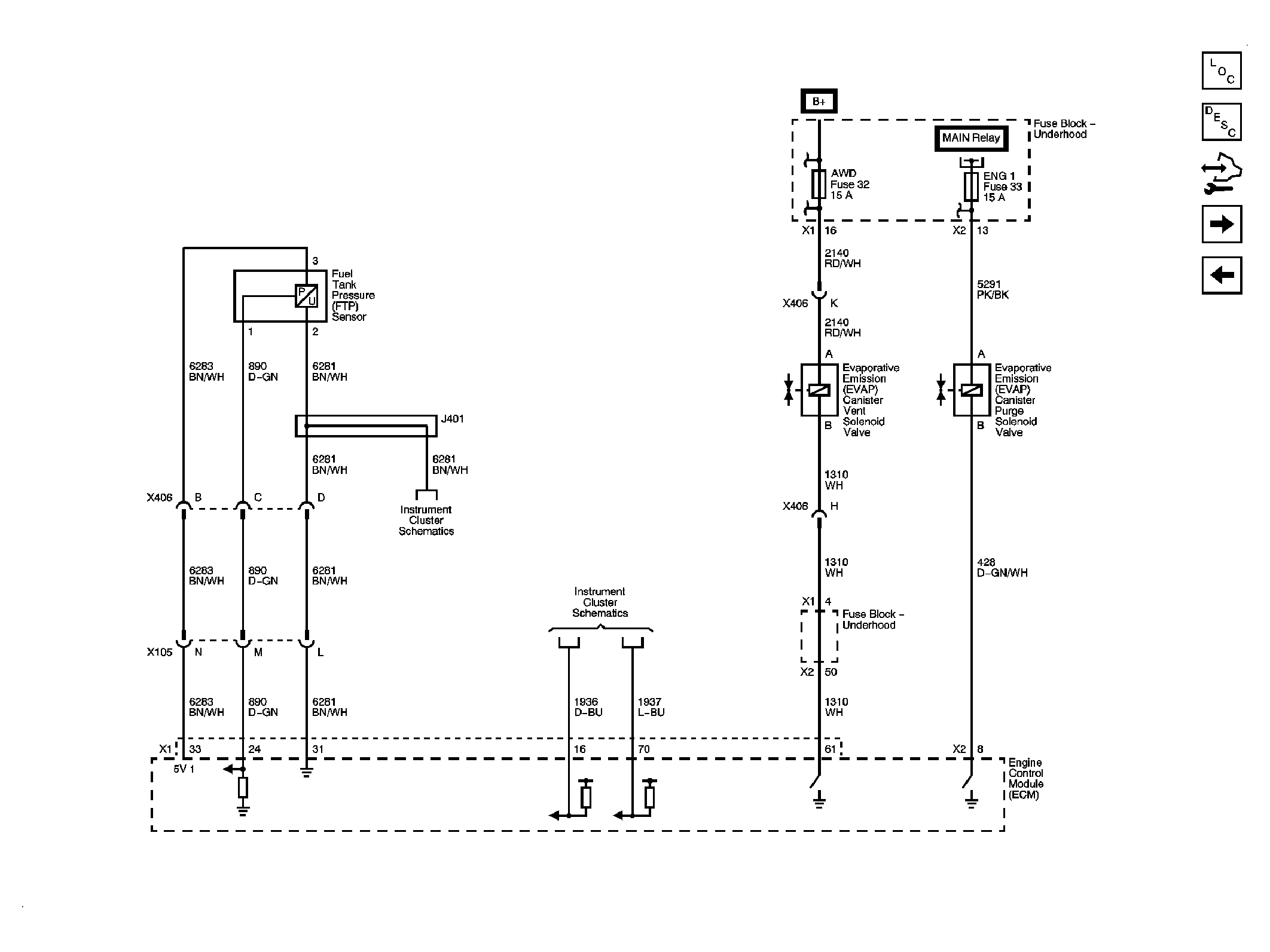

Fig 12: Fuel Controls - EVAP Controls - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 13: Controlled/Monitored Subsystem References - Schematic

Courtesy of GENERAL MOTORS CORP.
