Ground Distribution Schematics

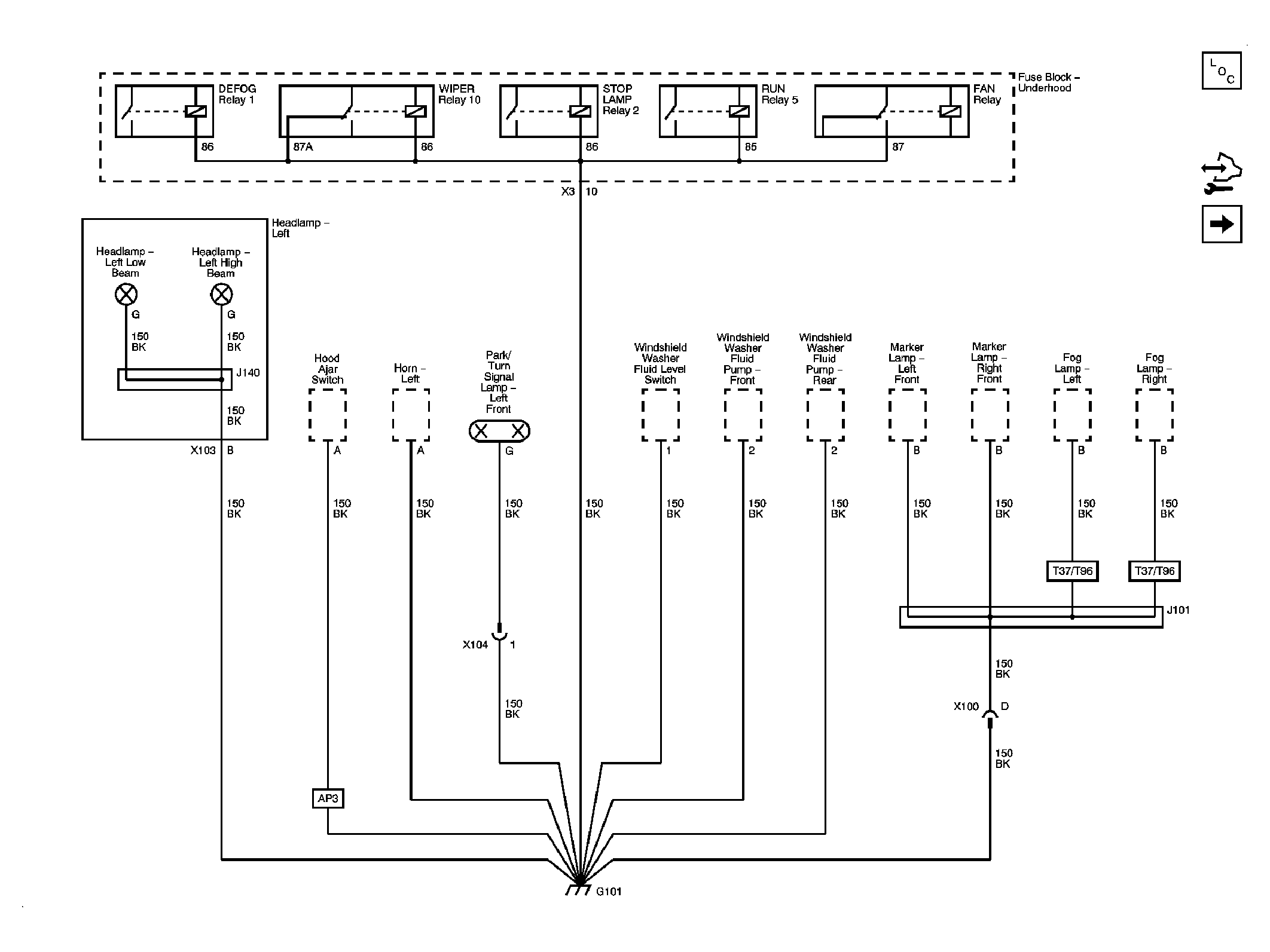

Fig 1: G101 - Schematic

GM1877500

Courtesy of GENERAL MOTORS CORP.

Fig 2: G102, G103 and G105 - Schematic

GM1877501

Courtesy of GENERAL MOTORS CORP.

Fig 3: G106 (LAT and LE5) - Schematic

GM1877504

Courtesy of GENERAL MOTORS CORP.

Fig 4: G106 (LY7 and LZ4) - Schematic

GM1877507

Courtesy of GENERAL MOTORS CORP.

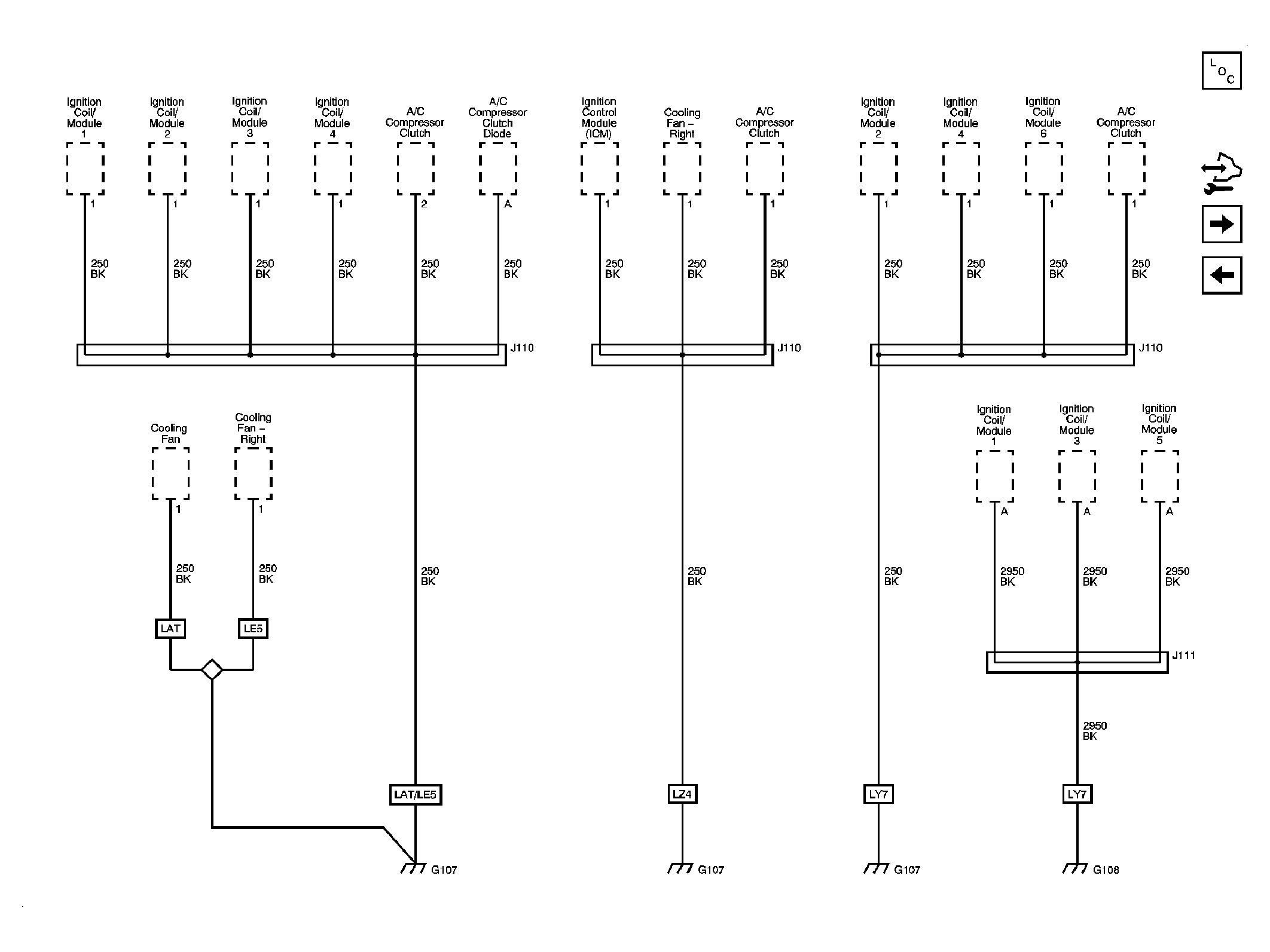

Fig 5: G107 and G108 - Schematic

GM1877508

Courtesy of GENERAL MOTORS CORP.

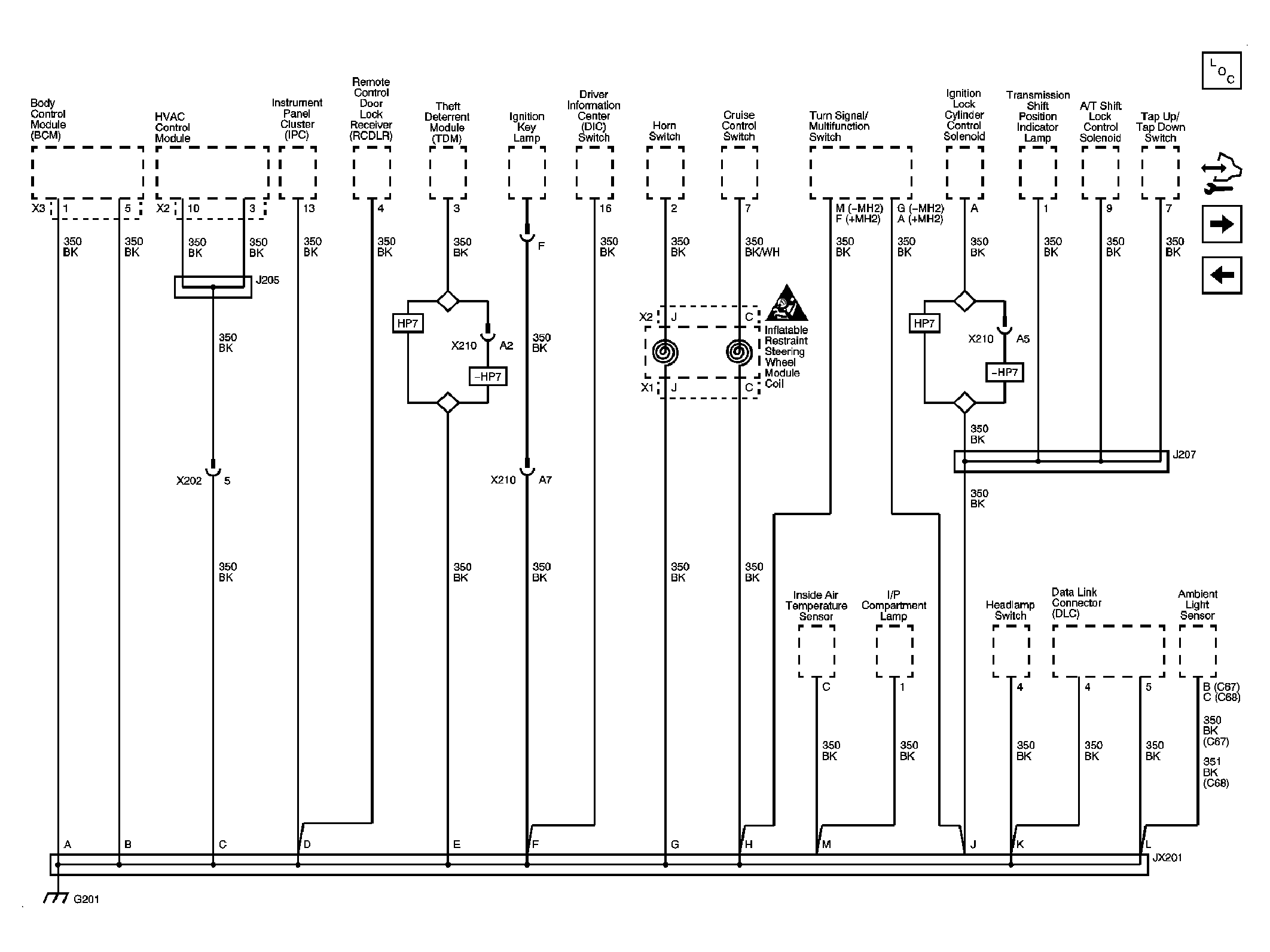

Fig 6: G201 - Schematic

GM1877512

Courtesy of GENERAL MOTORS CORP.

Fig 7: G202 and G203 - Schematic

GM1877514

Courtesy of GENERAL MOTORS CORP.

Fig 8: G204, G205 and G302 - Schematic

GM1877515

Courtesy of GENERAL MOTORS CORP.

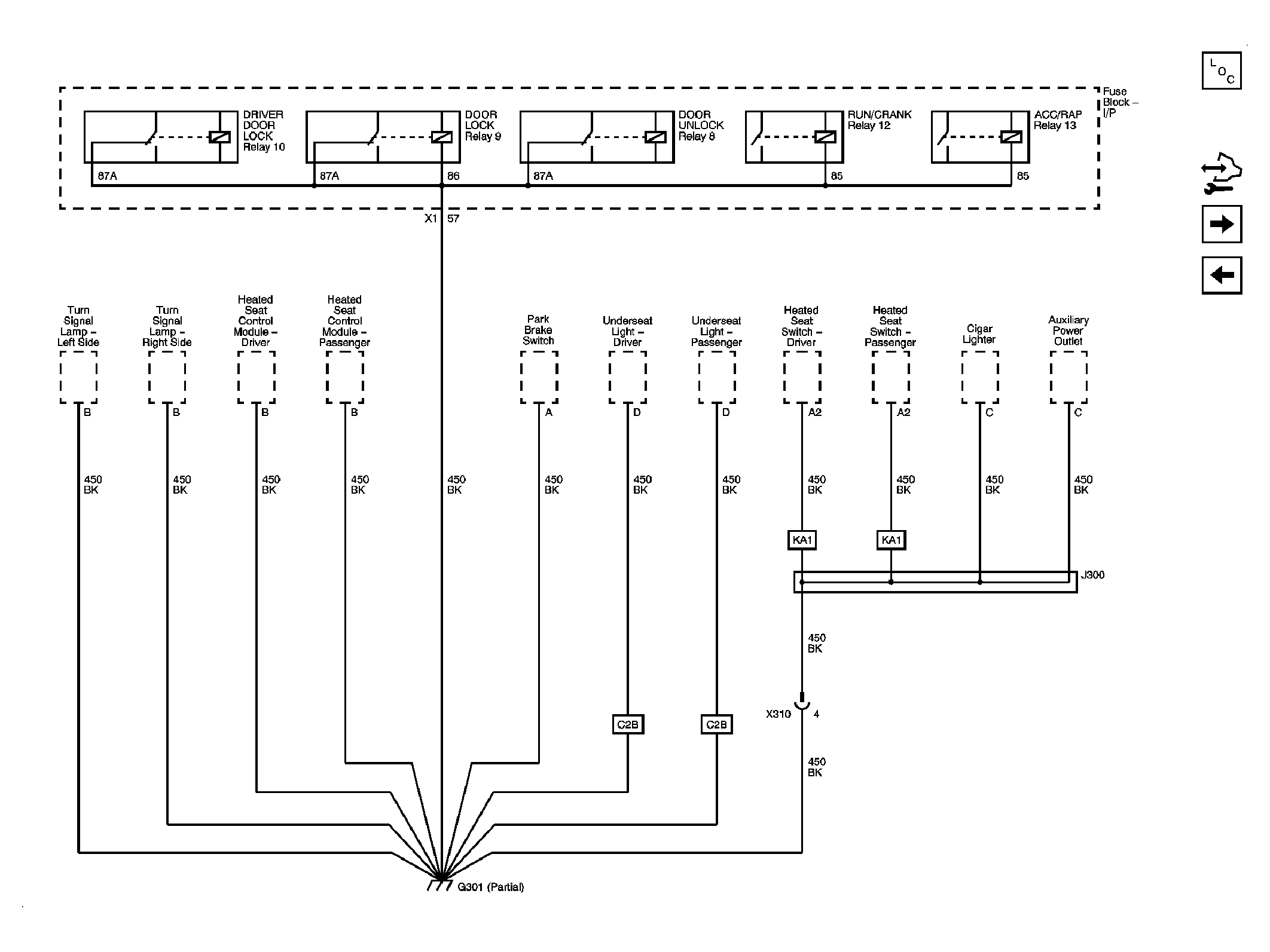

Fig 9: G301 - 1 of 2 - Schematic

GM1877516

Courtesy of GENERAL MOTORS CORP.

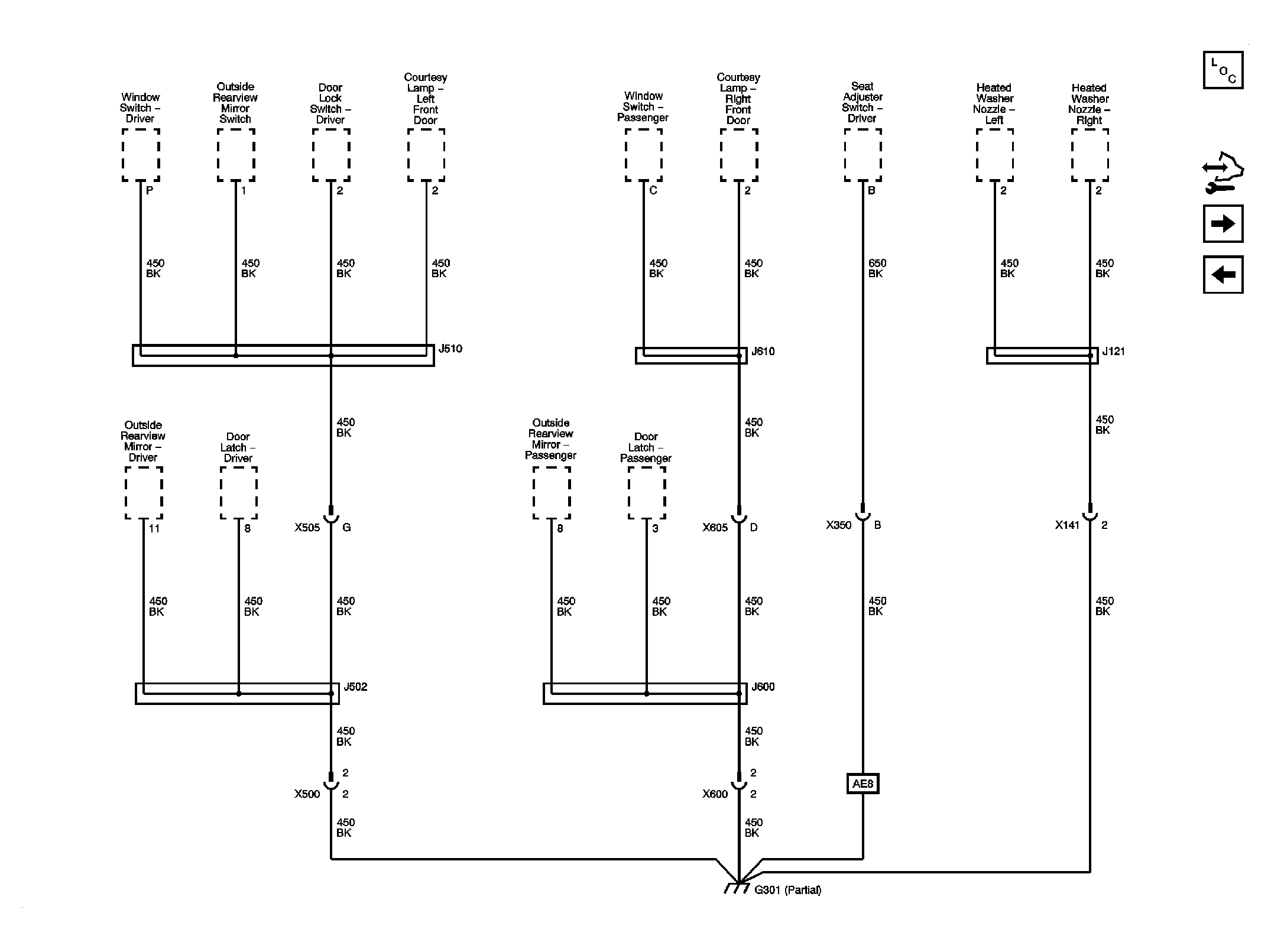

Fig 10: G301 - 2 of 2 - Schematic

GM1877517

Courtesy of GENERAL MOTORS CORP.

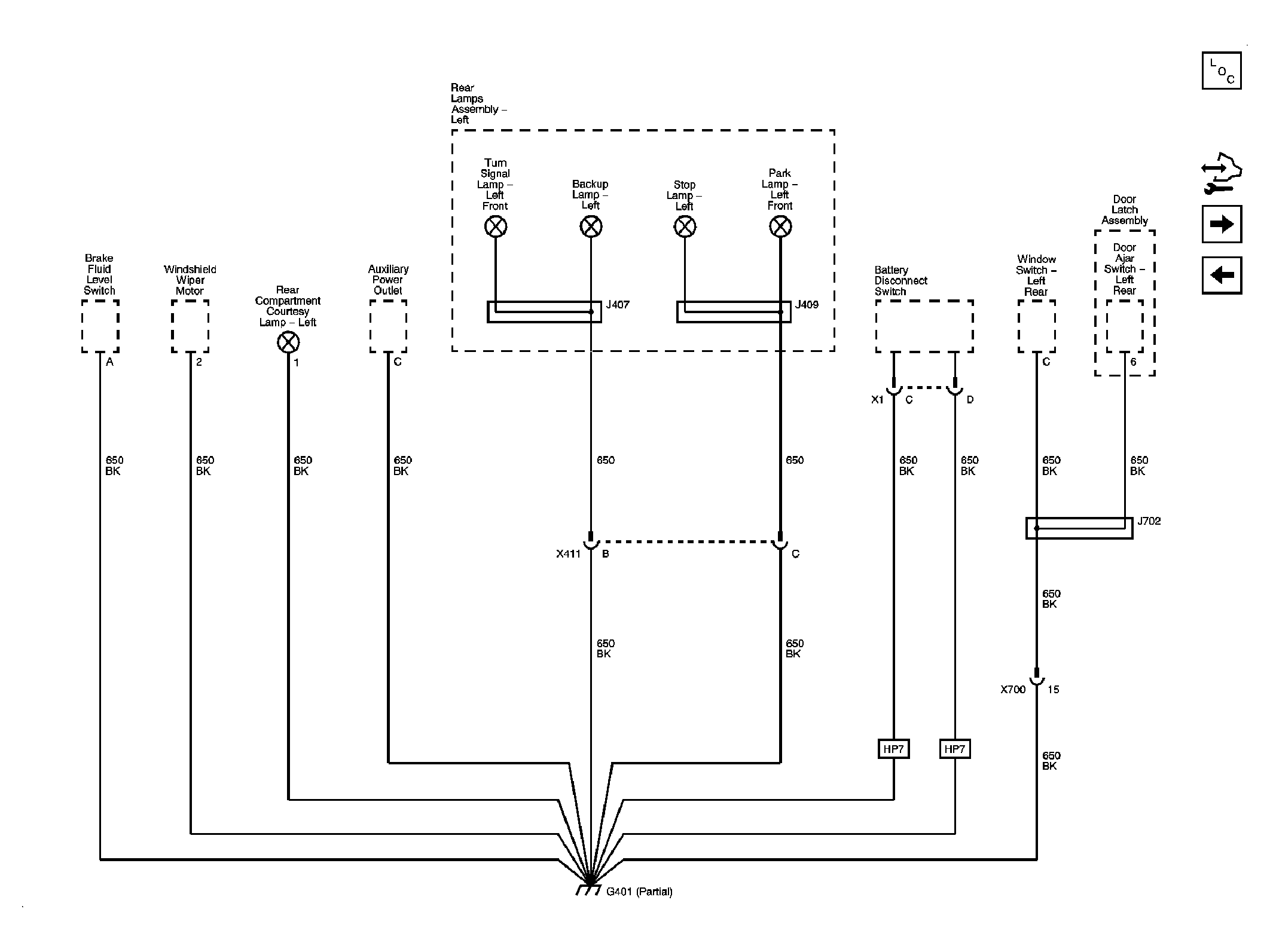

Fig 11: G401 - 1 of 2 - Schematic

GM1877518

Courtesy of GENERAL MOTORS CORP.

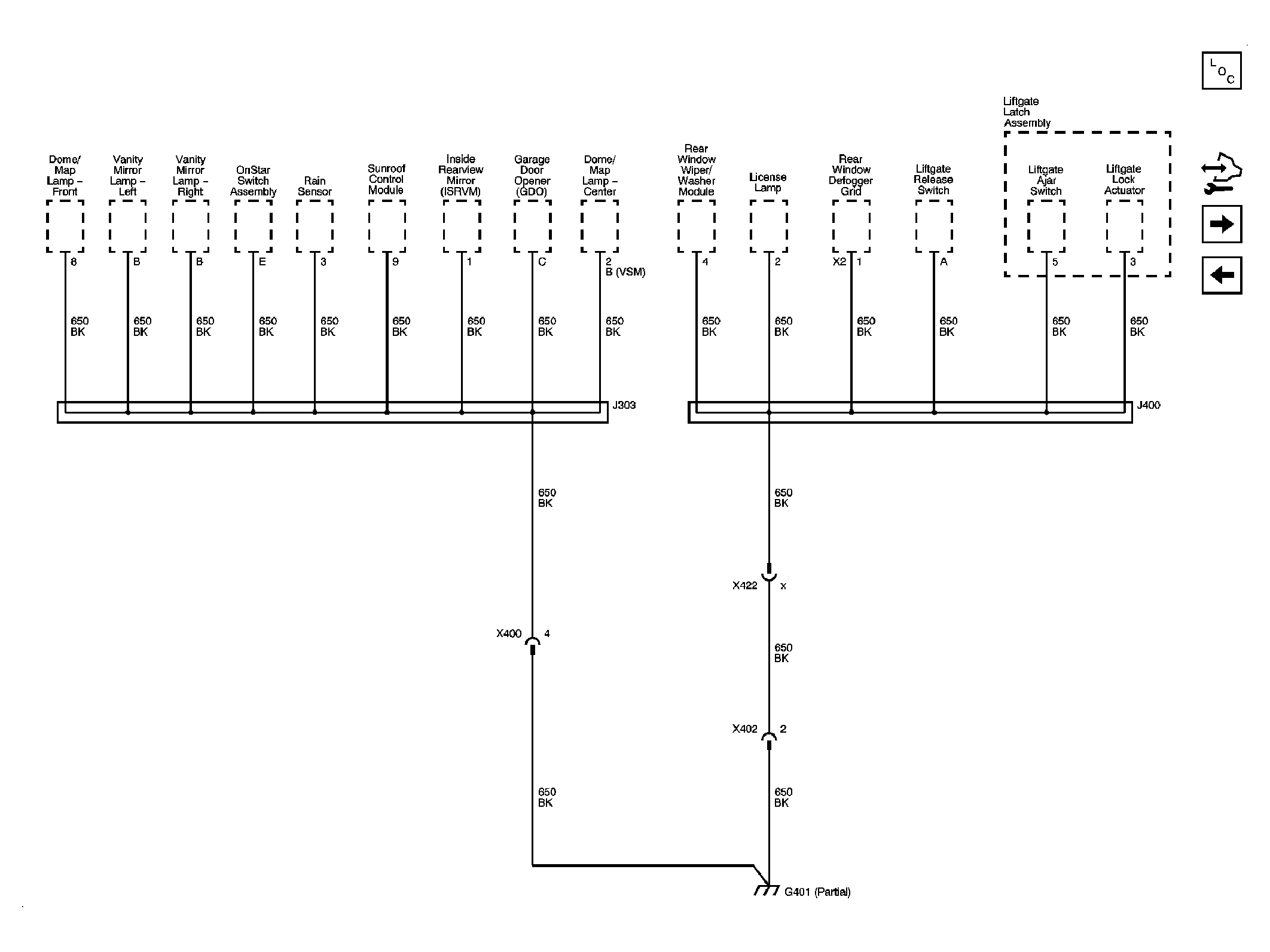

Fig 12: G401 - 2 of 2 - Schematic

GM1877519

Courtesy of GENERAL MOTORS CORP.

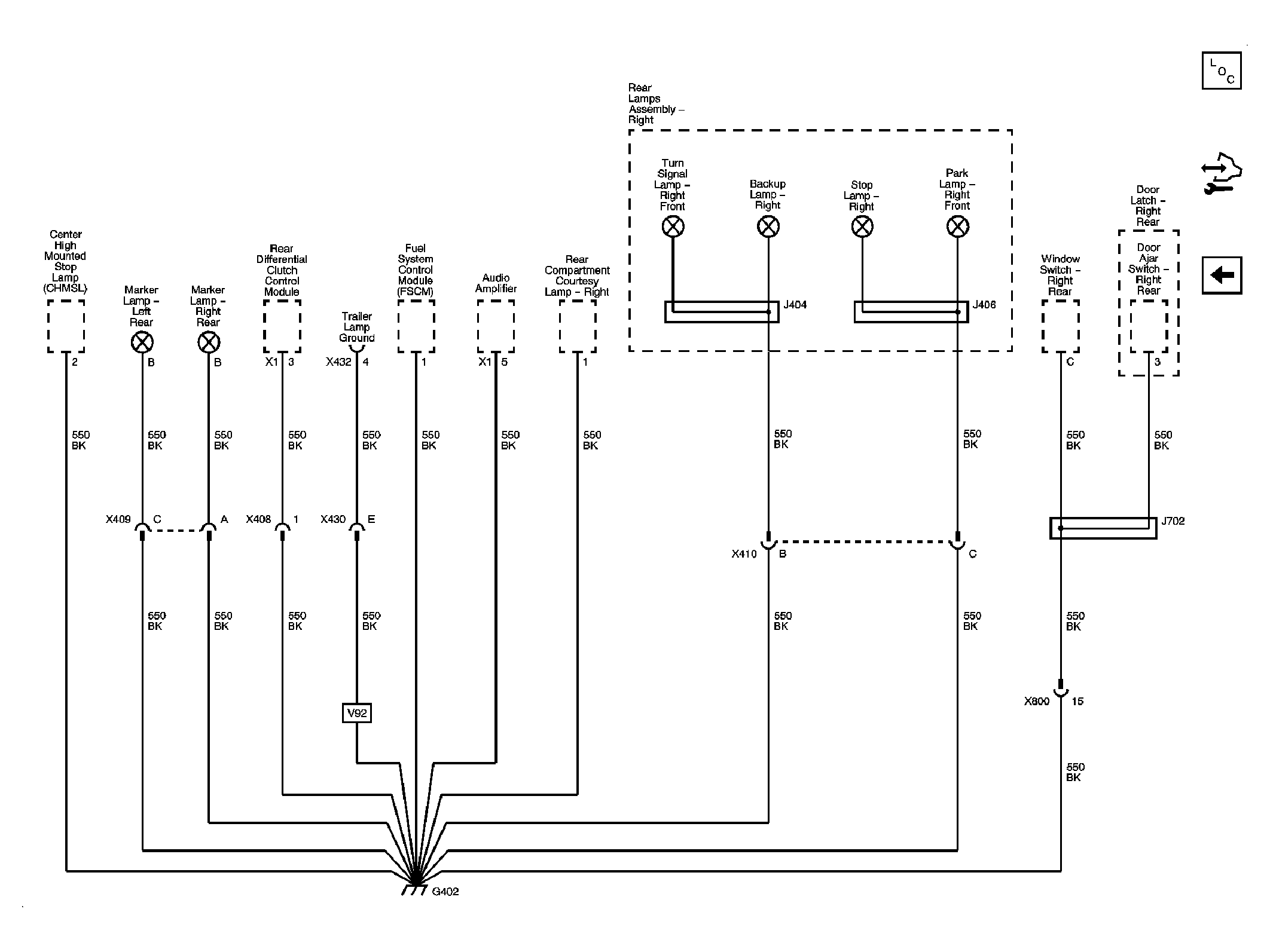

Fig 13: G402 - Schematic

GM1877520

Courtesy of GENERAL MOTORS CORP.
