Instrument Cluster Schematics

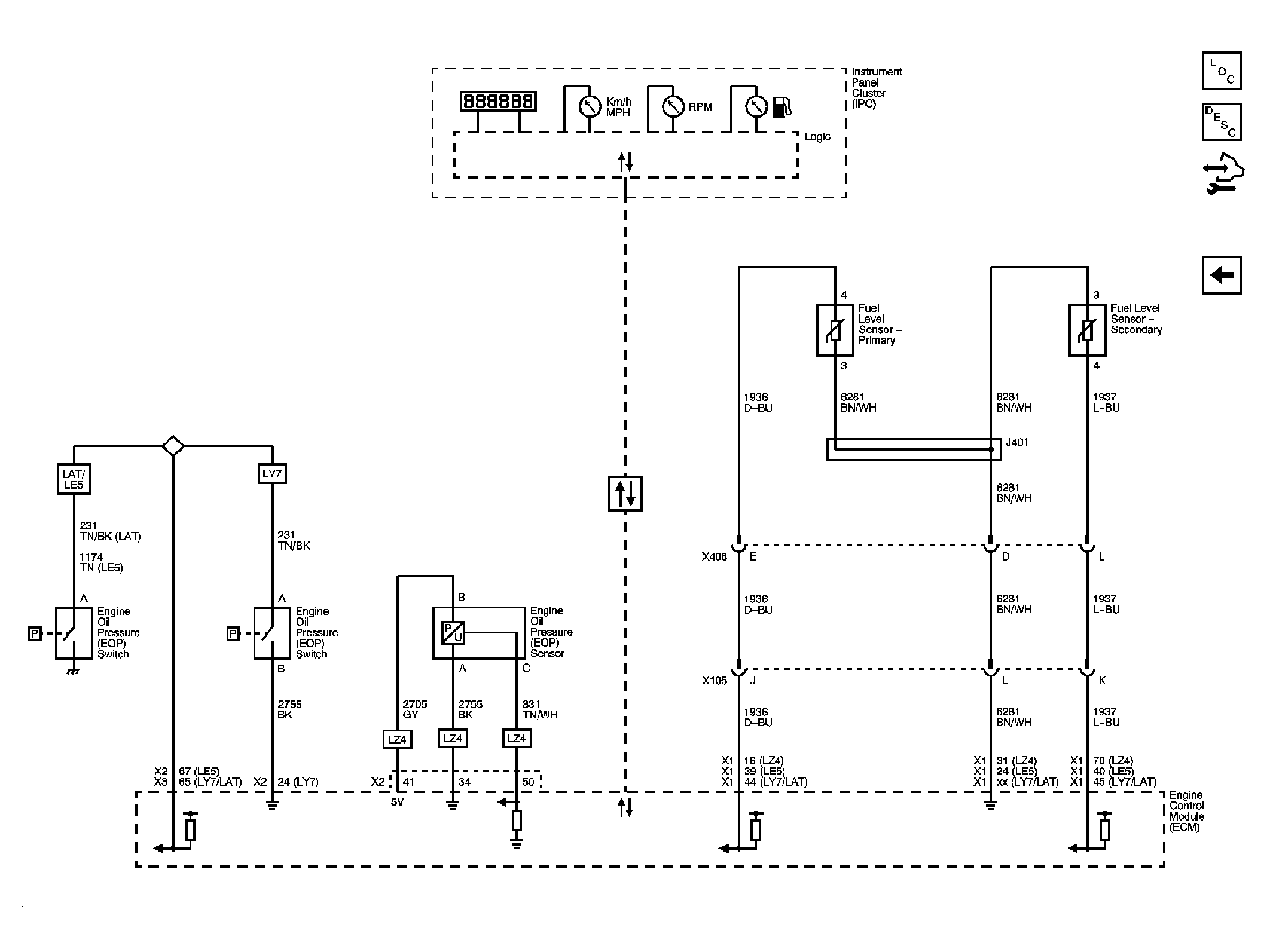

Fig 1: Instrument Cluster Schematics - Schematic
Courtesy of GENERAL MOTORS CORP.

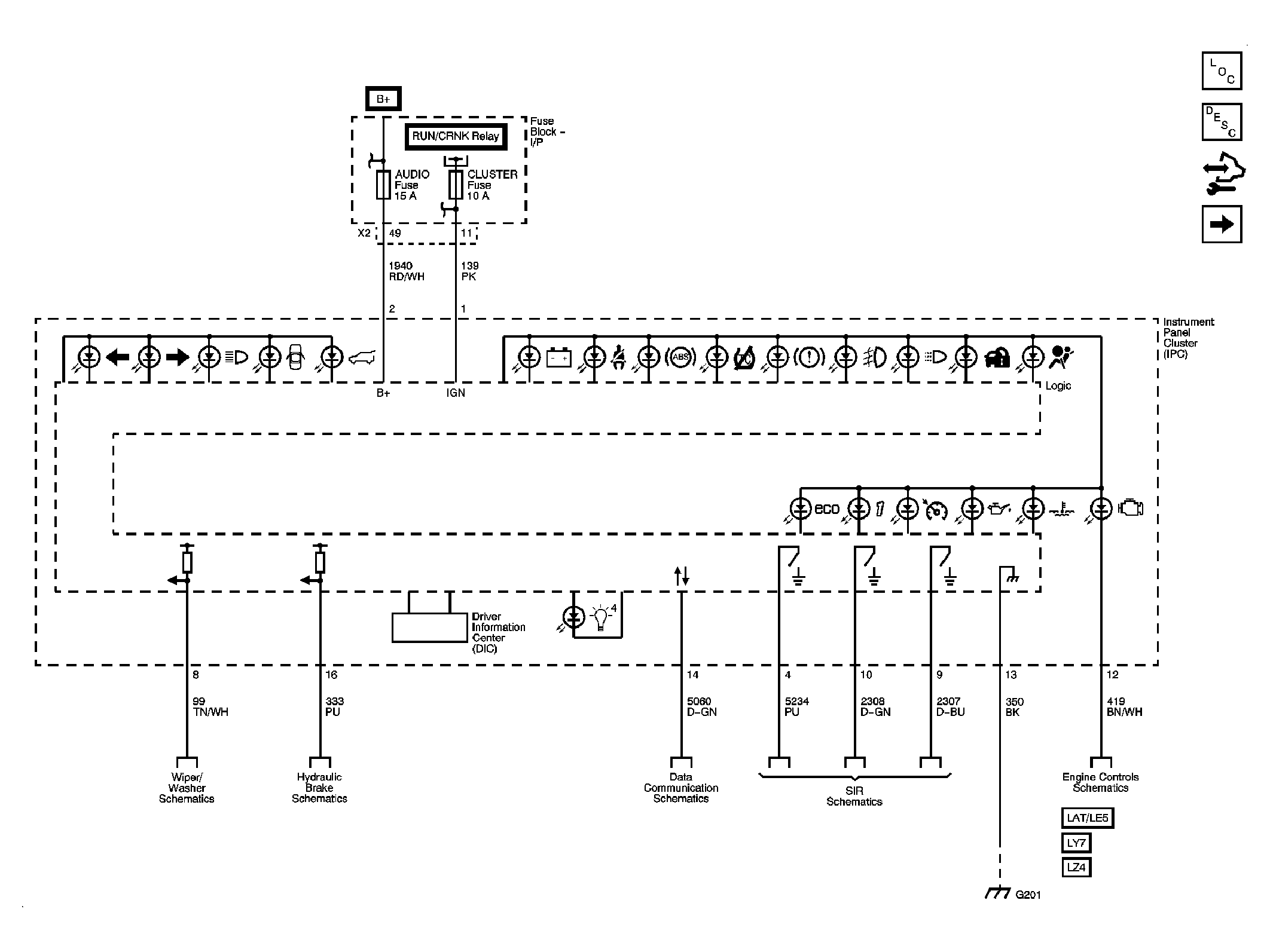

Fig 2: Instrument Panel Cluster - Gages - Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
