Heated/Cooled Seat Schematics

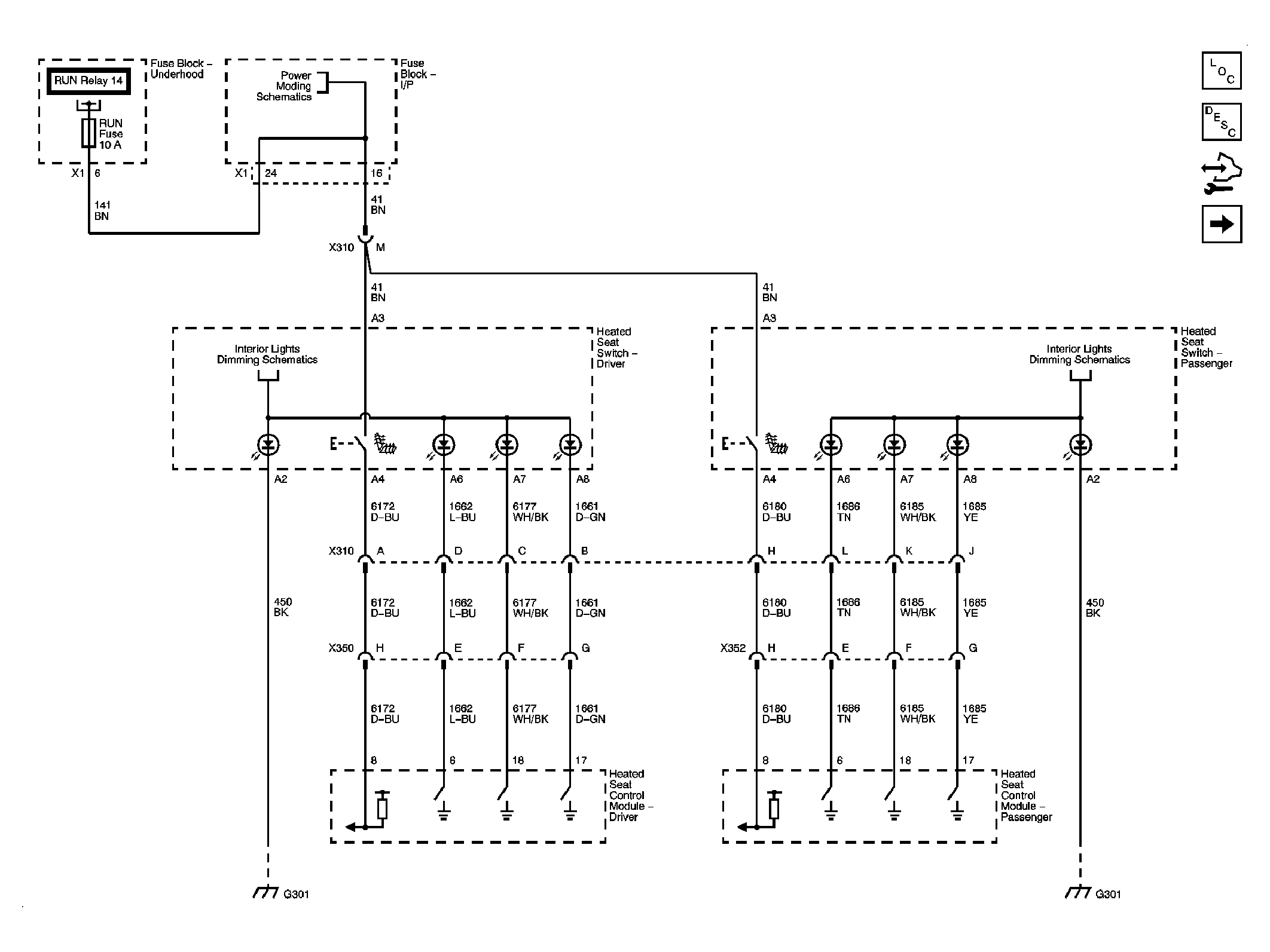

Fig 1: Heated Seats - Schematic

GM1883278

Courtesy of GENERAL MOTORS CORP.

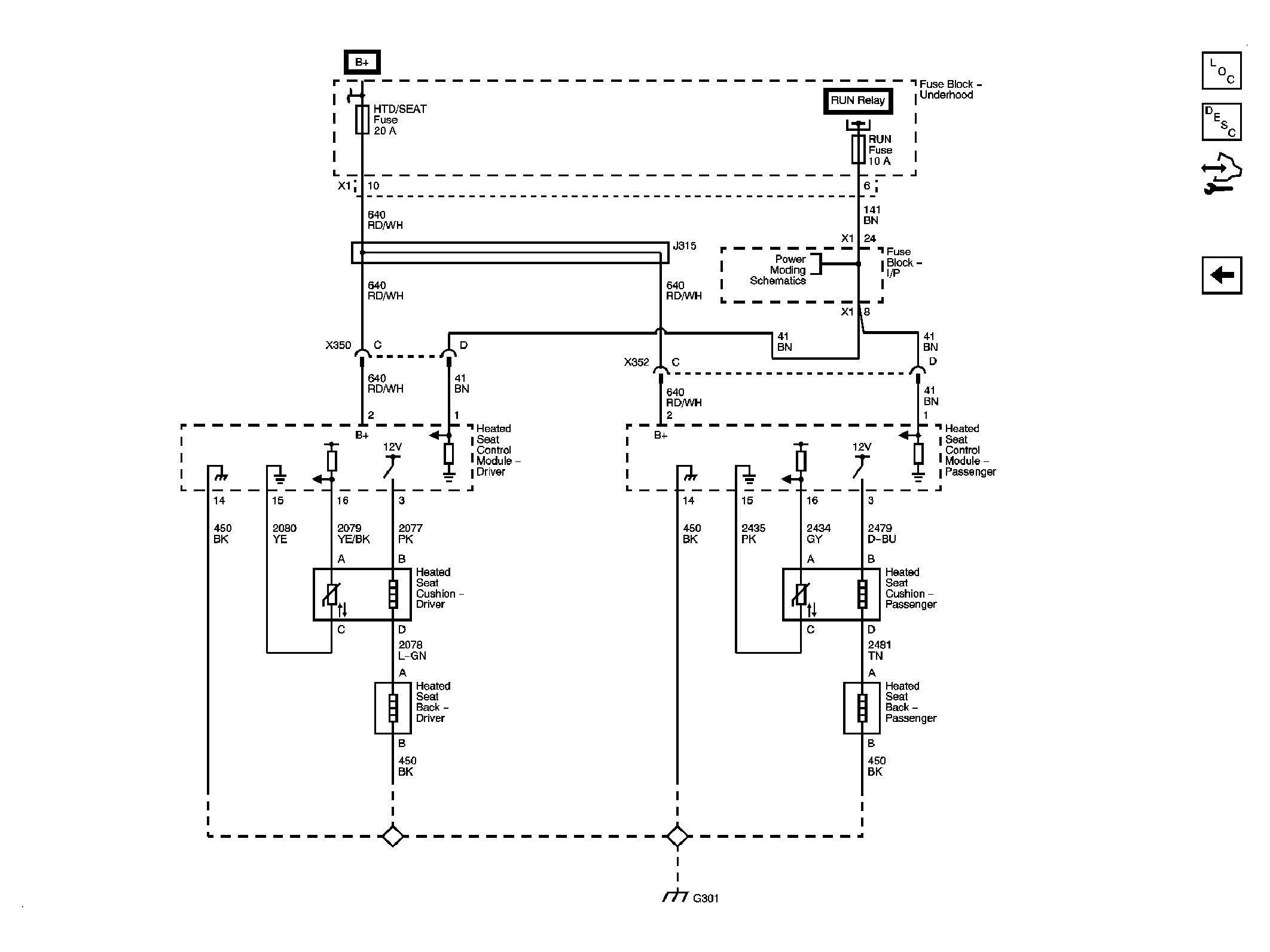

Fig 2: Heating Elements - Schematic

GM1883279

Courtesy of GENERAL MOTORS CORP.
