Data Communication Schematics

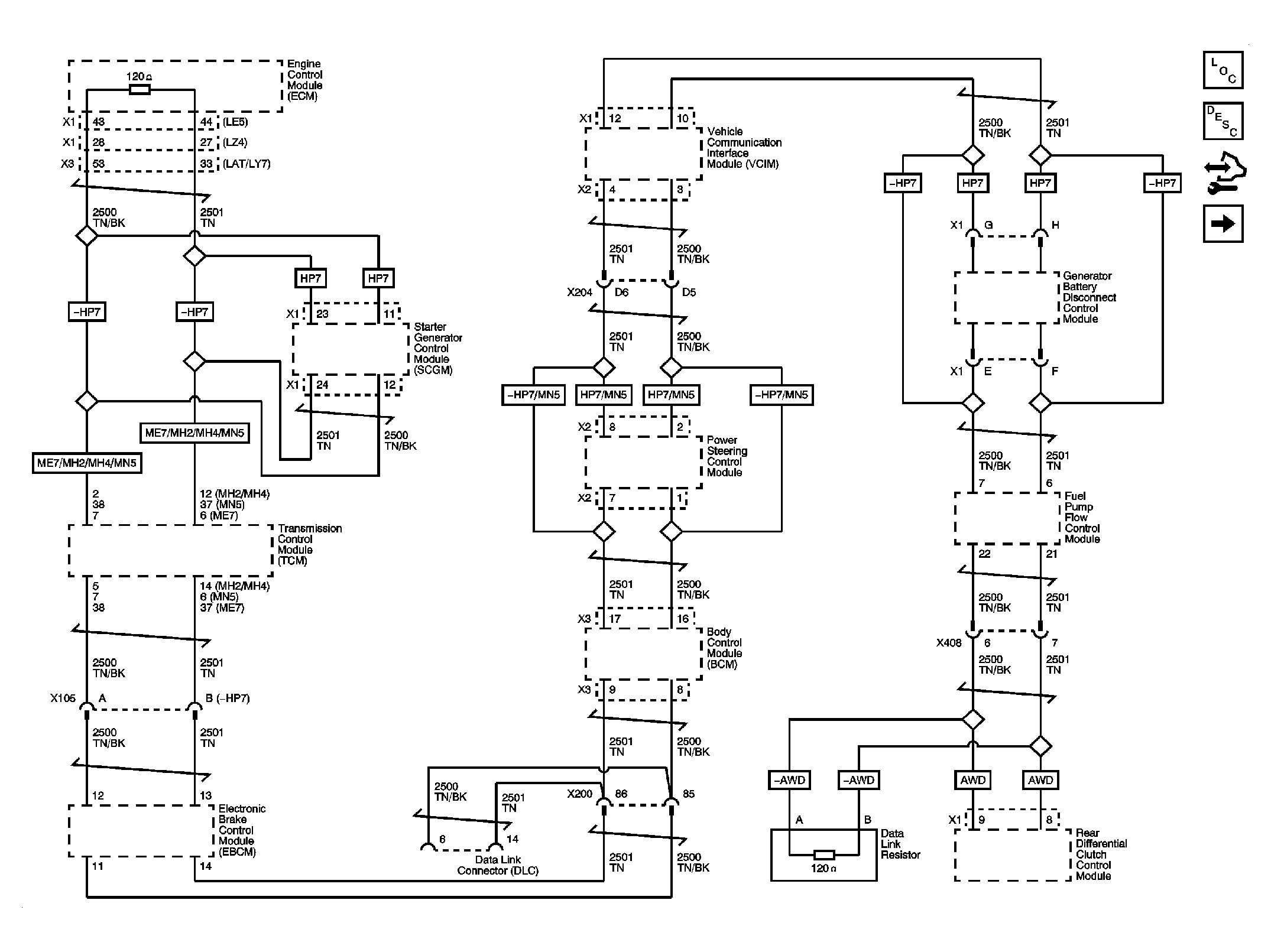

Fig 1: High Speed GMLAN - Schematic
GM1883487Courtesy of GENERAL MOTORS CORP.

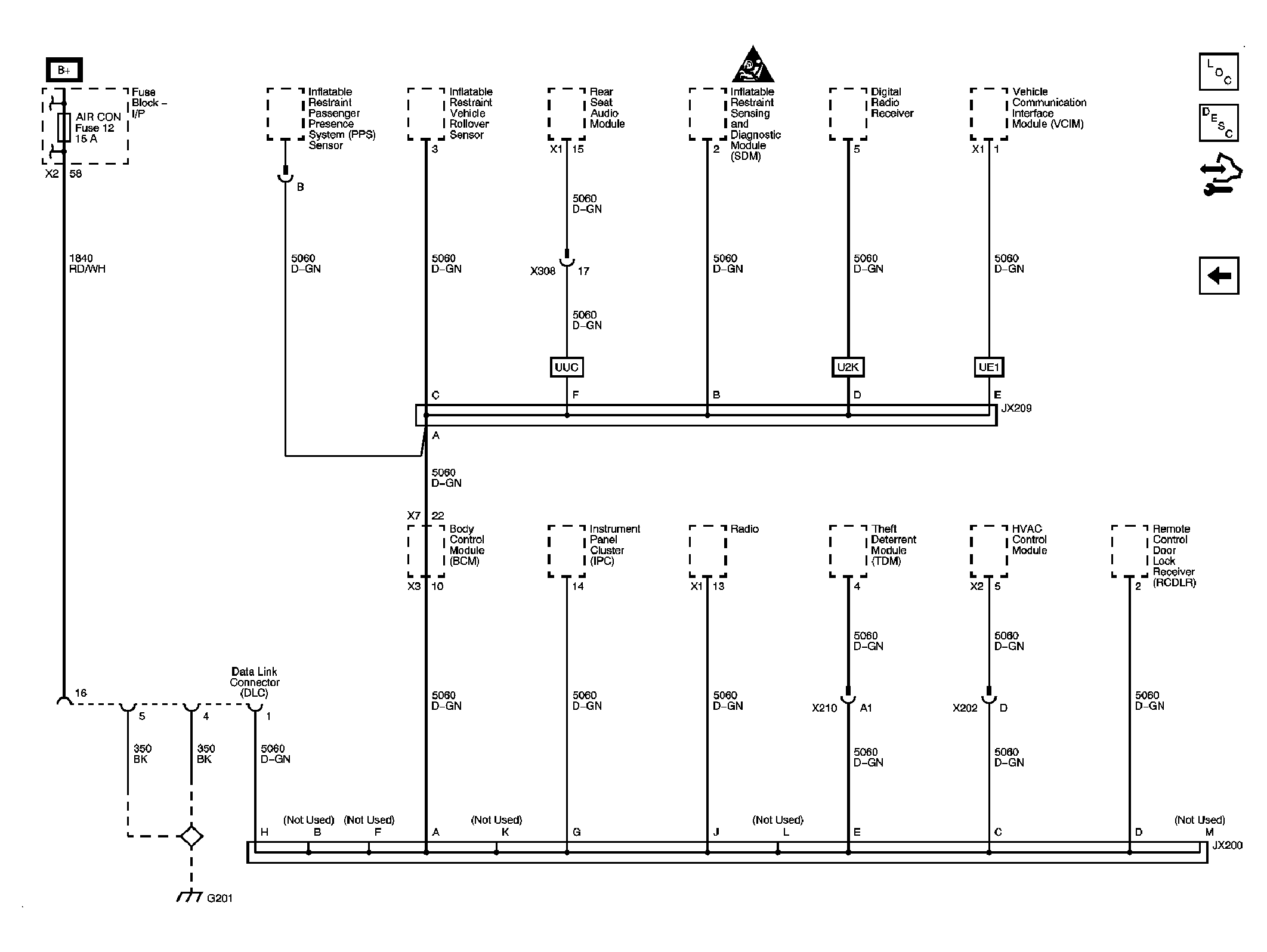

Fig 2: Low Speed GMLAN - Schematic
GM1883488Courtesy of GENERAL MOTORS CORP.

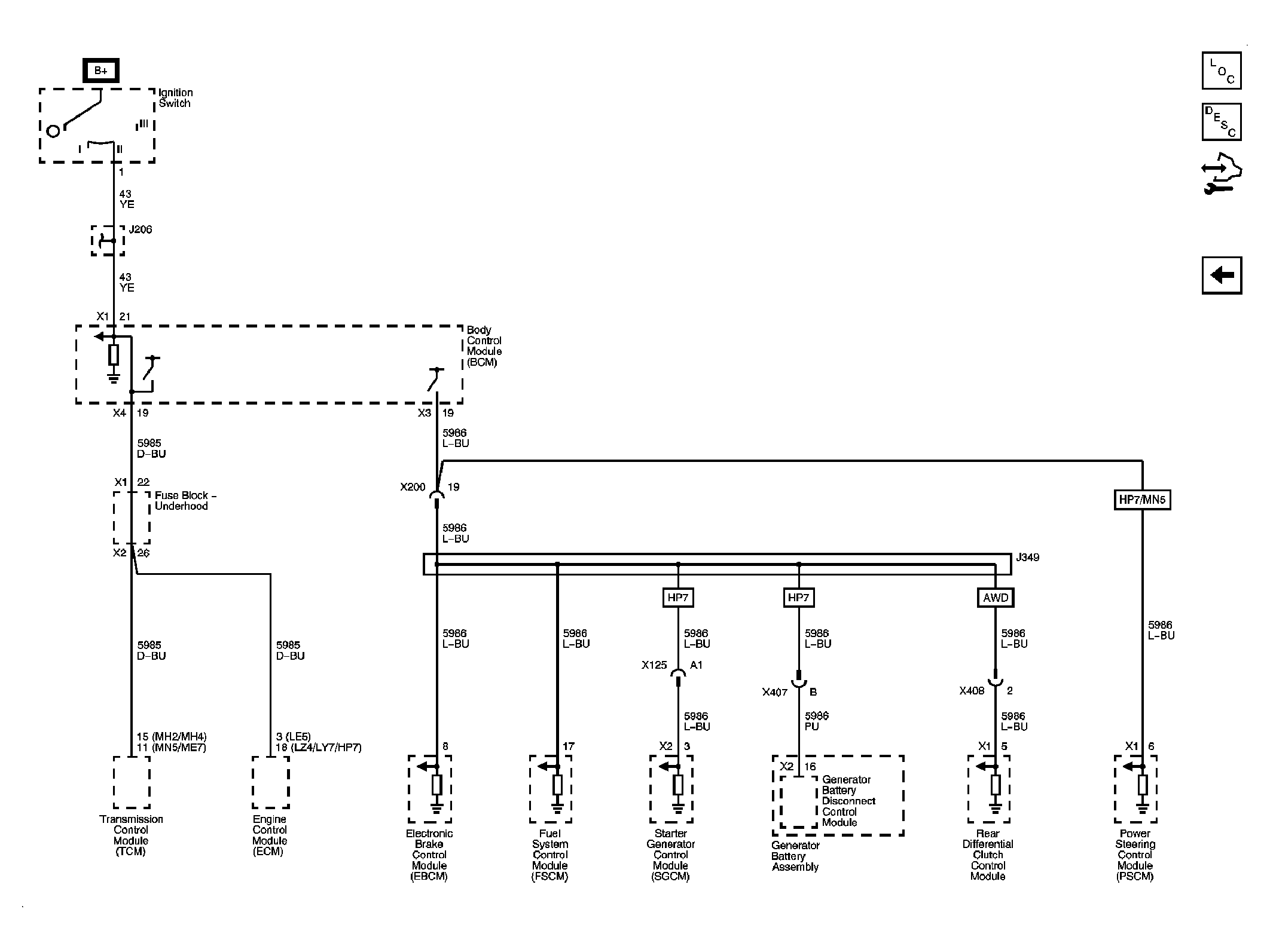

Fig 3: Serial Data Communication Enable and Accessory Wake Up - Schematic
GM1883496Courtesy of GENERAL MOTORS CORP.
