Ambient Air Temperature Gage Sensor Replacement (SKY)

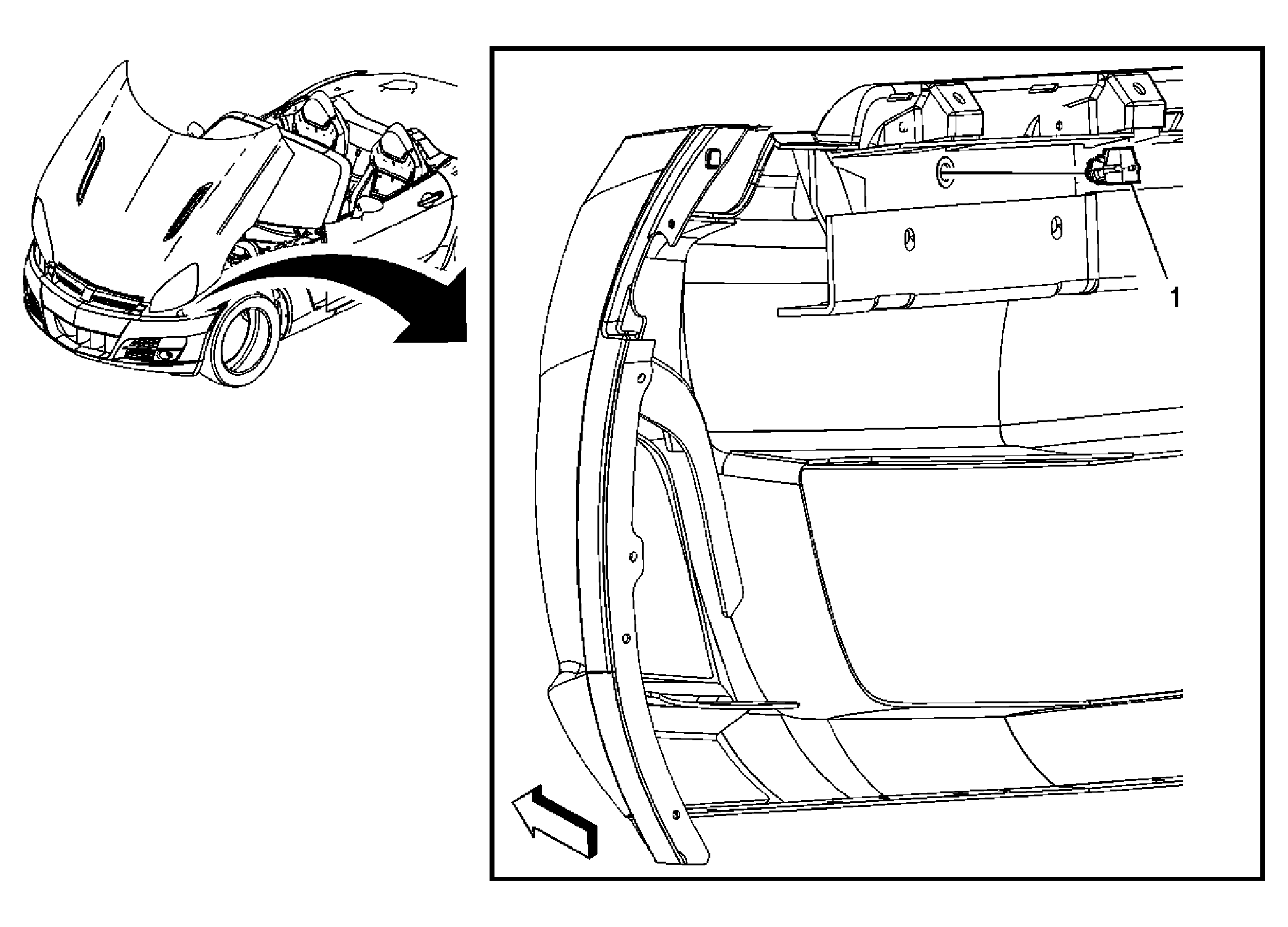

Fig 1: Locating Ambient Air Temperature Gage Sensor
GM1765851Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ambient Air Temperature Sensor Assembly

Procedure

  1. Disconnect the electrical connector from the sensor.
  2. Unsnap the sensor from the front fascia bracket.
