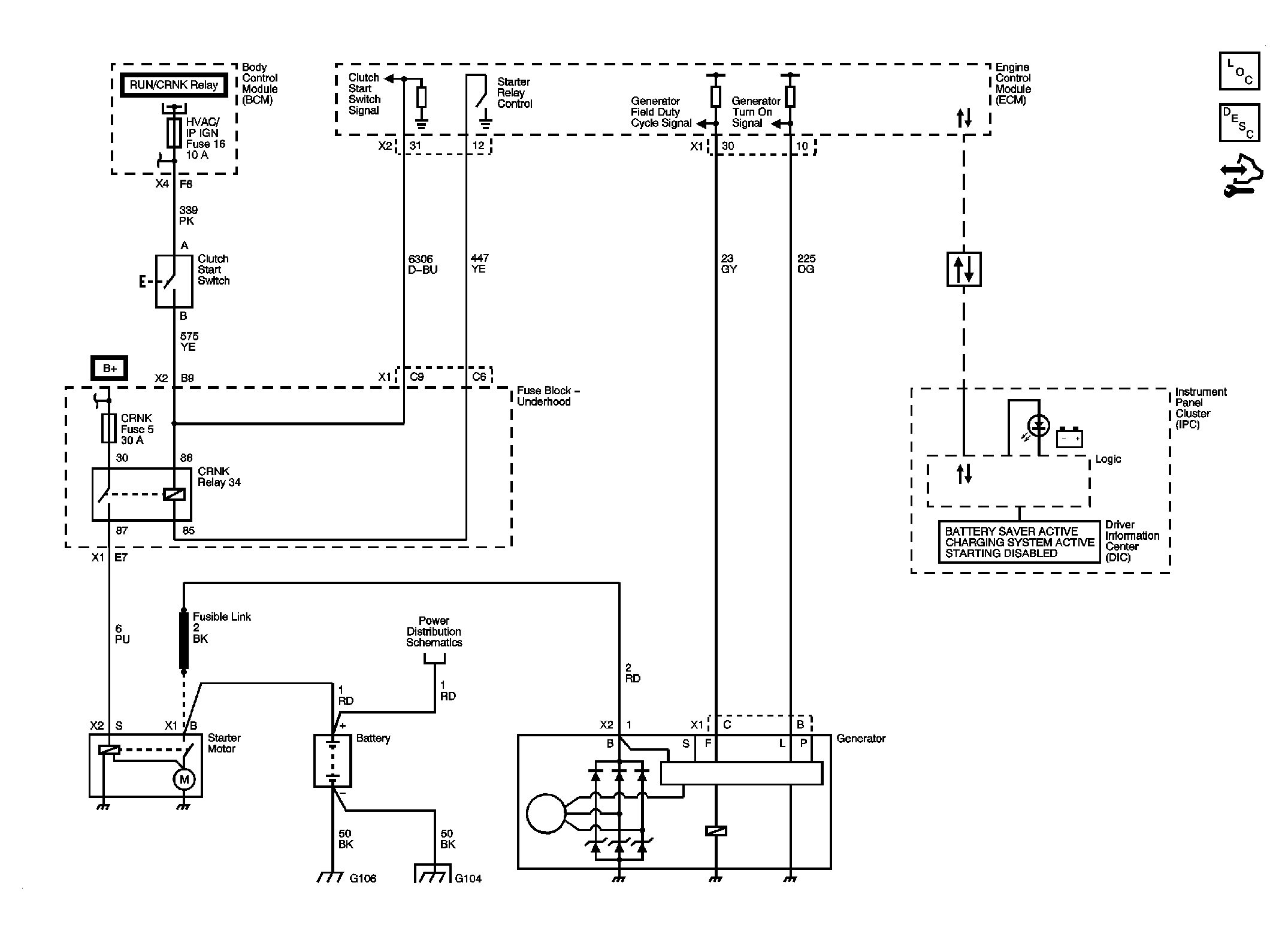

Home >> Saturn >> 2008 >> Sky Base, Standard >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Battery, Charging System And Starting System >> Schematic & Routing Diagrams >> Starting & Charging Schematics
