Assembly Procedure

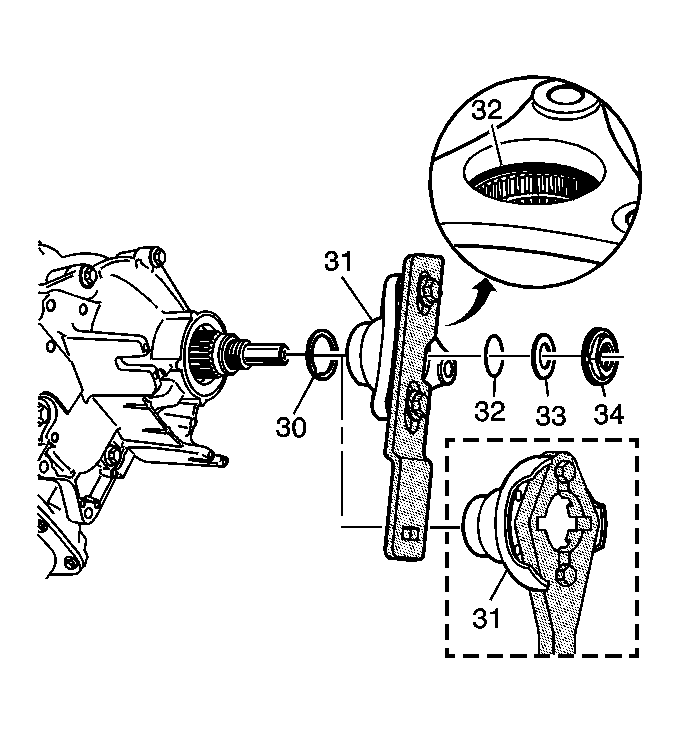

    Fig 1: View Of Prop Shaft Flange & Components
    GM1700073Courtesy of GENERAL MOTORS CORP.
  1. Install the NEW output shaft assembly retainer (30).
  2. Install the NEW prop shaft flange o-ring seal (32) into the prop shaft flange (31) - model dependent.
  3. Install the prop shaft flange (31).
  4. Put the transmission in Park.
    5. NOTE: Refer to Fastener Notice .
  5. Install the NEW prop shaft flange thrust washer (33) and NEW prop shaft flange nut (34) using GM P/N 89021297.

    Tighten:  Tighten the prop shaft flange nut (34) to 57 N.m (42 lb ft).

  6. Using either the J 8614-01  to tighten the prop flange nut.
