Installation Procedure

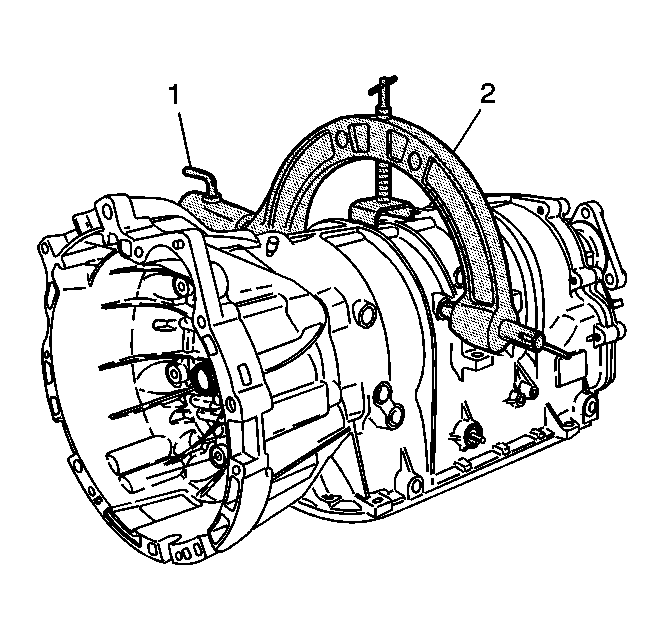

    Fig 1: Identifying J 8763-B
    GM801788Courtesy of GENERAL MOTORS CORP.
  1. Install the J 8763-B  onto the transmission assembly. See Special Tools .
  2. Install the transmission assembly into the tool base and use the pin to lock the holding fixture in place.
