Windshield Washer Nozzle Replacement



Windshield Washer Nozzle Replacement

Removal Procedure

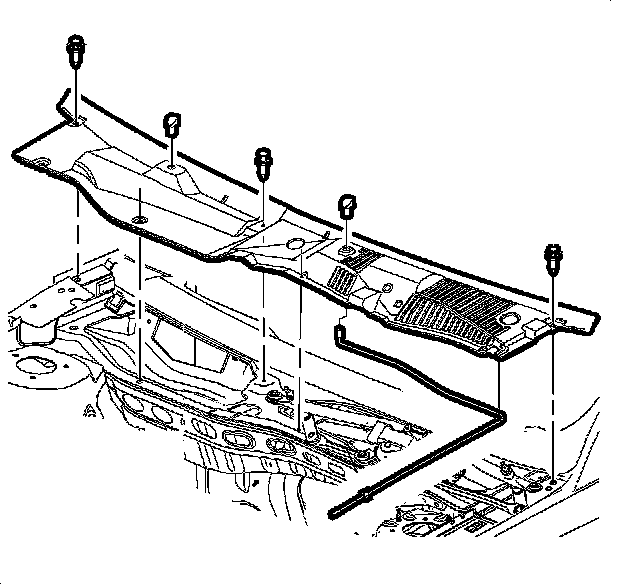

1. Remove the air inlet grille panel.
2. Depress the washer nozzle tabs to disengage the nozzle from the air inlet grille.
3. Remove the nozzle.

Installation Procedure




1. Push the washer nozzles into the air inlet grille panel until the tabs engage with the panel.
2. Install the air inlet grille panel.
