Seat Belt Buckle Switch: Locations

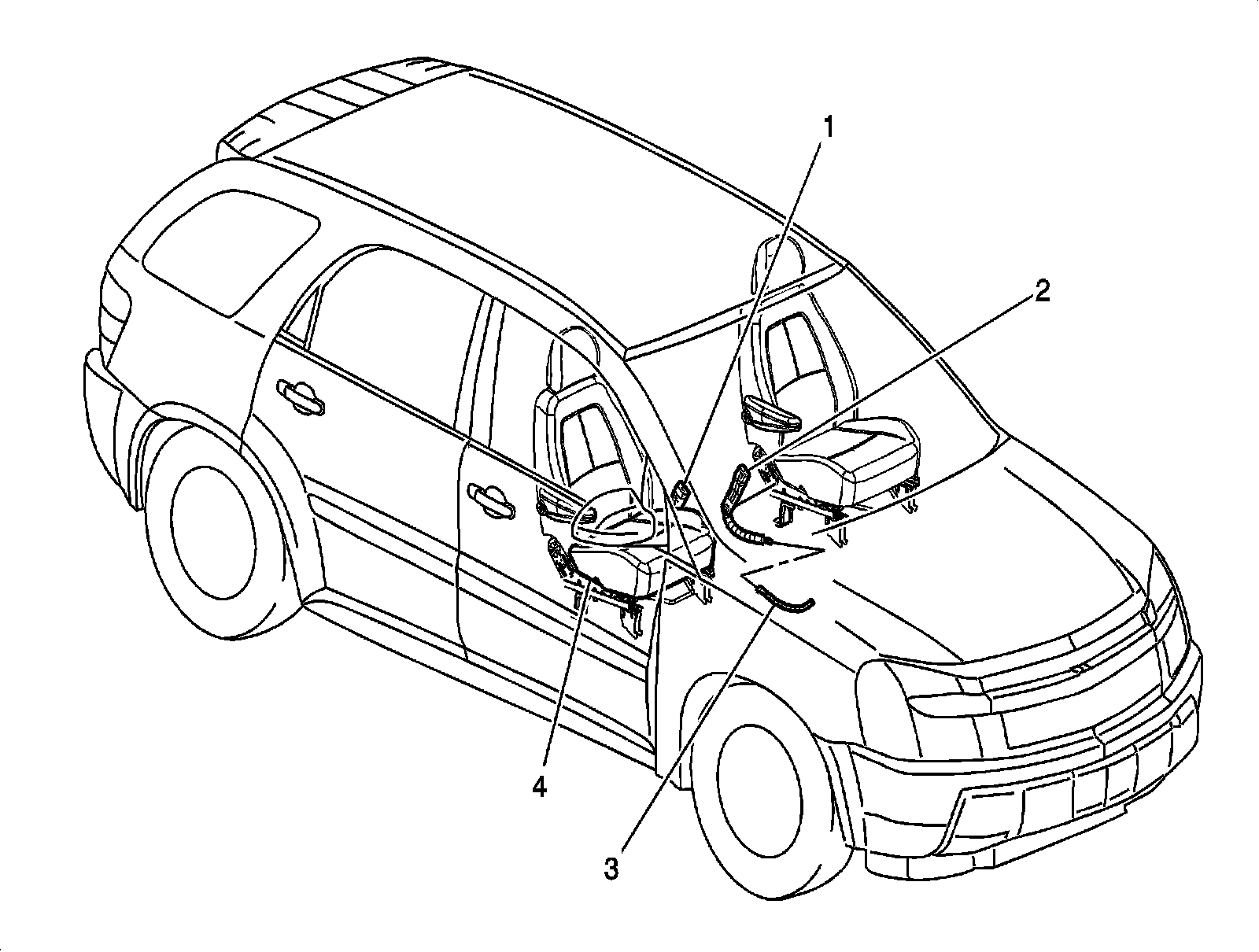

Seat Belt Component Views

Seat Belt Components




1 - Seat Belt Switch - Passenger
2 - Seat Belt Switch - Driver
3 - I/P Wiring Harness
4 - Inflatable Restraint Passenger Presence System (PPS) Sensor - Part of the Seat Cushion
