Fog/Driving Lamp Switch: Service and Repair

Fog Lamp Switch Replacement

Removal Procedure

1. Remove the instrument panel (I/P) trim panel bezel.

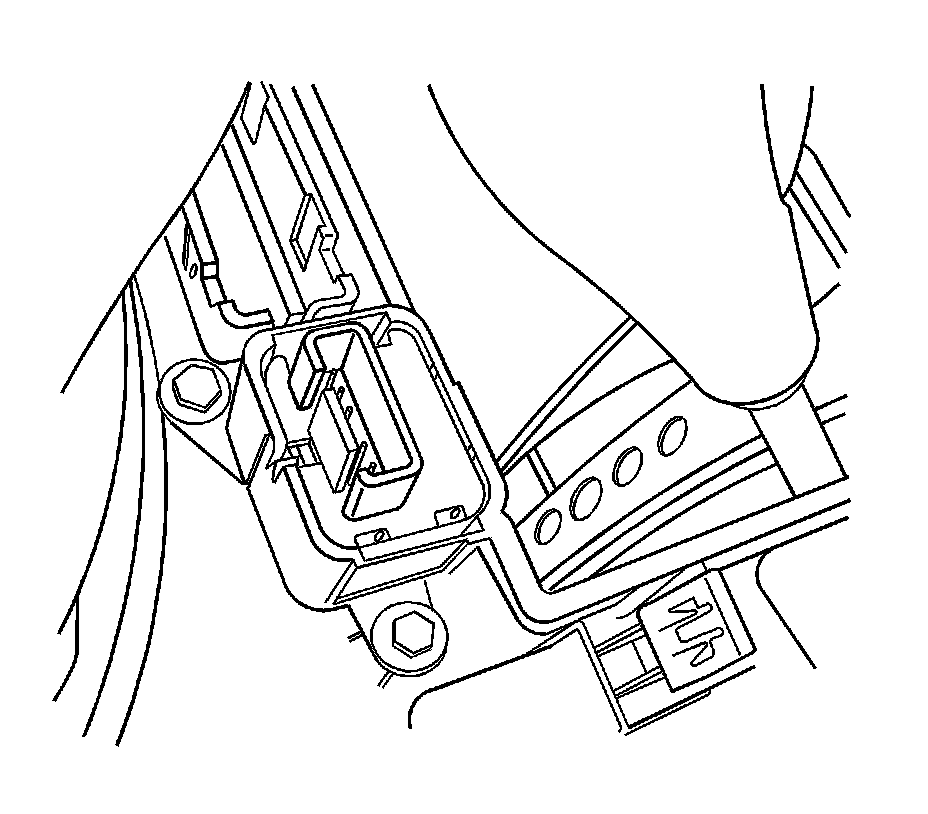

2. Remove the switch assembly fasteners and remove the switch assembly.

Installation Procedure






Notice: Refer to Fastener Notice.

1. Install the switch assembly on to the bezel and install the fasteners.

Tighten the fasteners to 2.5 N.m (22 lb in).

2. Install the I/P trim panel bezel.
