Backup Lamp Switch: Locations



Manual Transmission Component Views

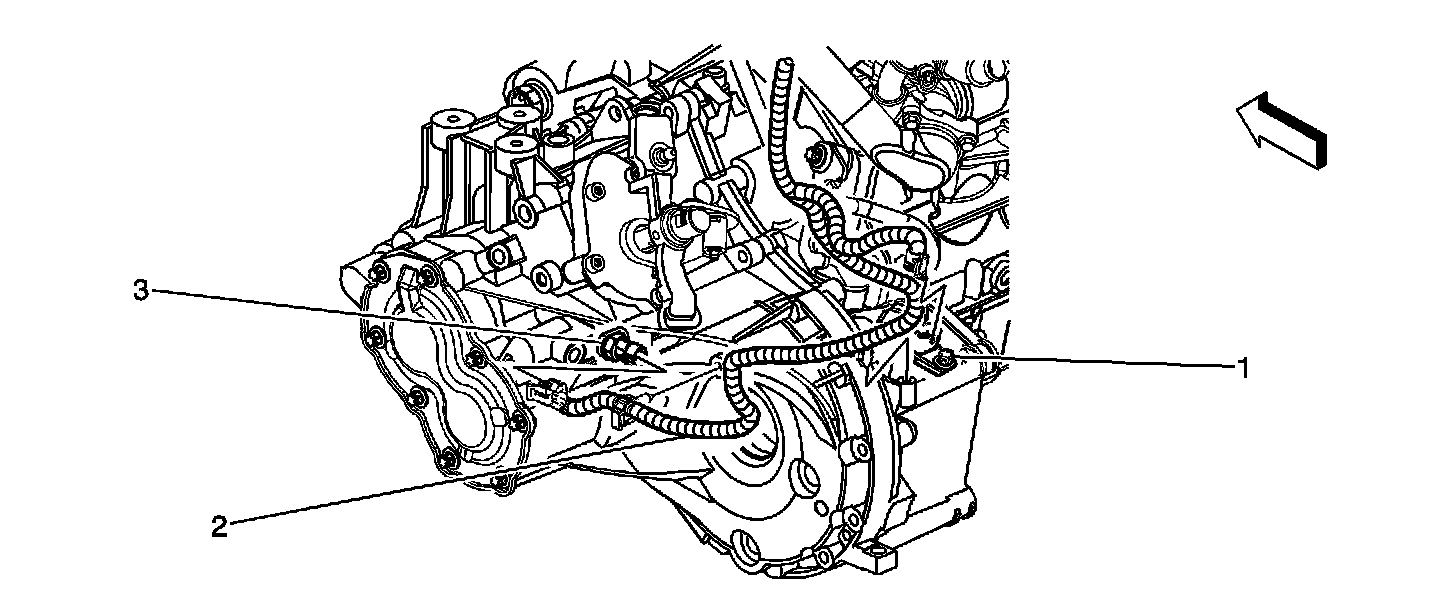

Manual Transmission Component Location View

Manual Transmission Component Location View:




1 - Vehicle Speed Sensor (VSS) (3 BK)
2 - Engine Wiring Harness
3 - Backup Switch (2 BK)
