Door Harness Routing - RR



Harness Routing Views

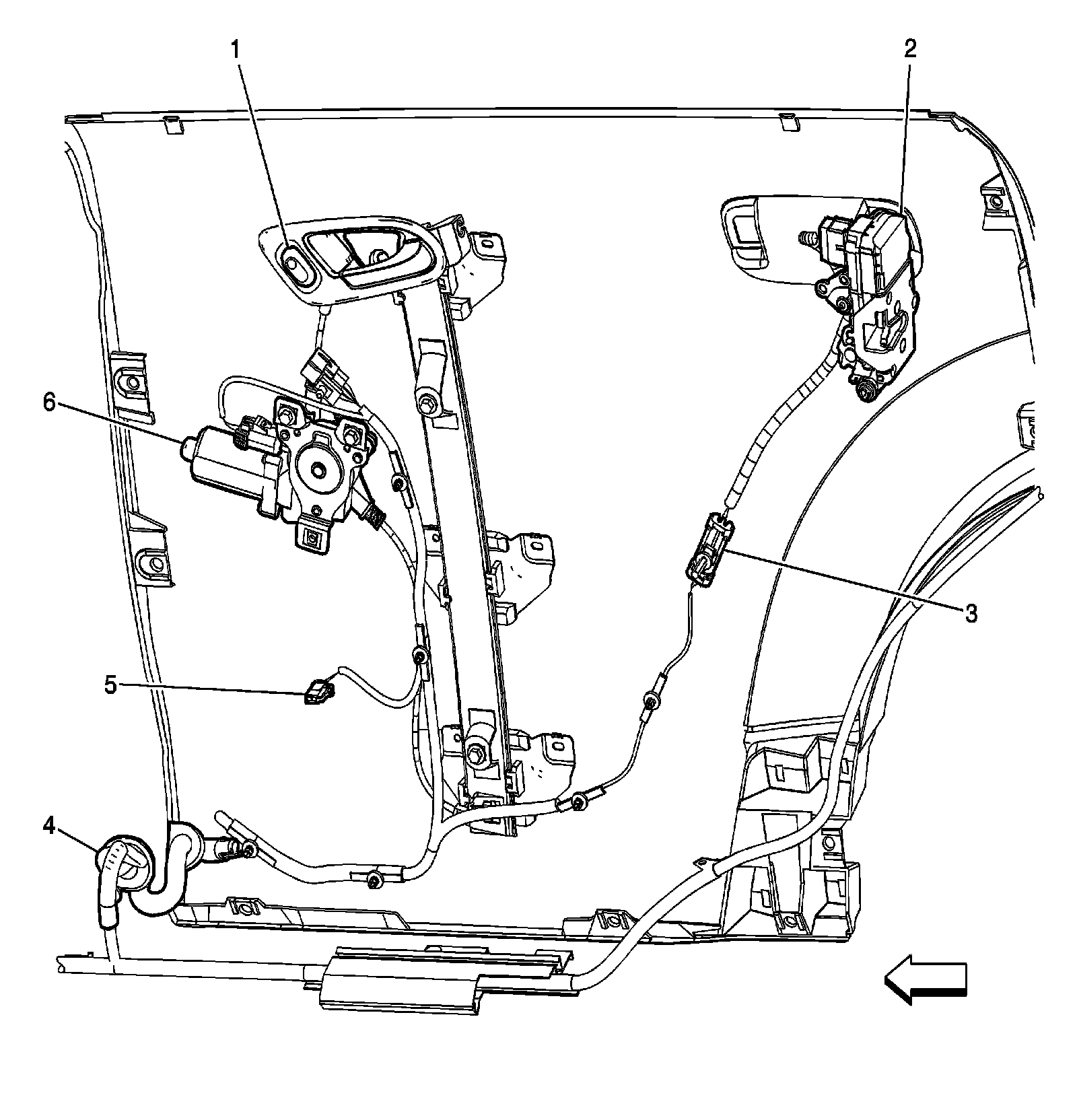

Door Harness Routing - RR




1 - Window Switch - RR
2 - Door Latch - RR
3 - C800
4 - Body Harness
5 - Speaker - RR Connector
6 - Window Motor - RR
