Pressure Tap Locations - Torque Converter Housing



Component Location

Pressure Tap Locations - Torque Converter Housing

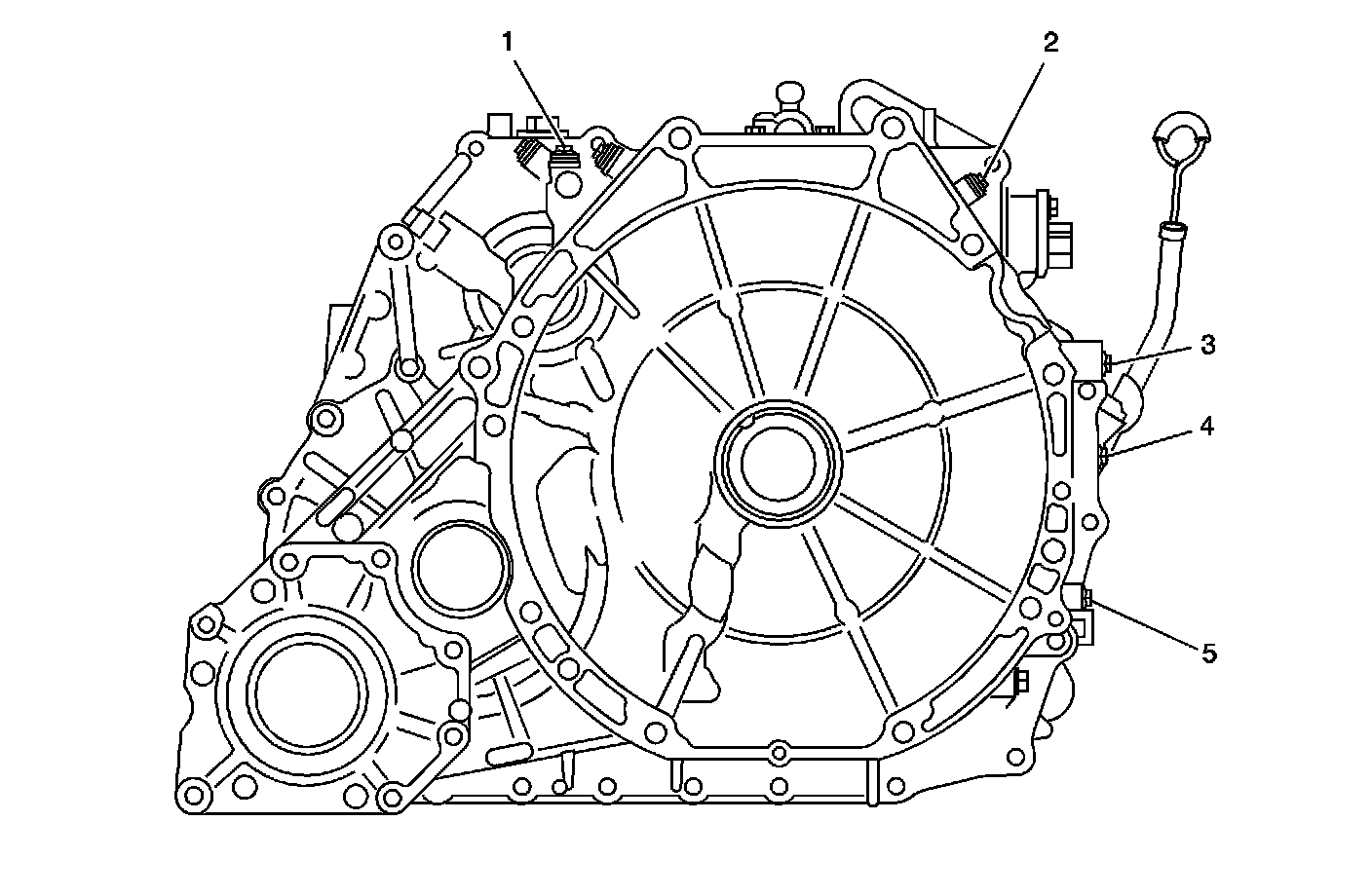

Pressure Tap Locations - Torque Converter Housing:




1 - 2nd Clutch
2 - 1st Clutch Accumulator
3 - 5th Clutch
4 - Line Pressure
5 - 3rd Clutch
