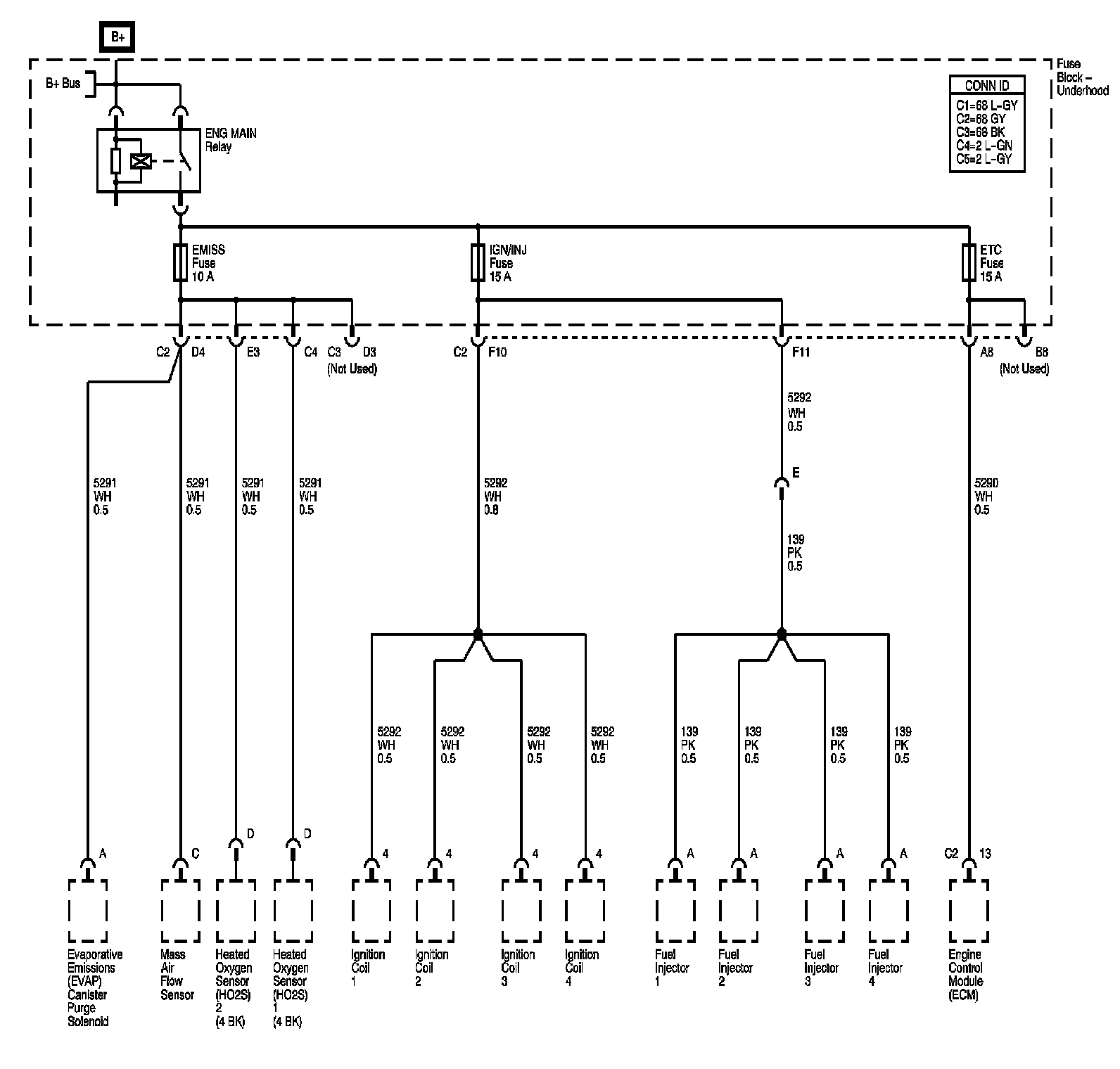

Power Distribution Diagram 11



Power Distribution Schematics

EMISS, IGN/INJ, and ETC Fuses (LAT)






Next Diagram: Power Distribution Diagram 12

Previous Diagram: Power Distribution Diagram 10

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
