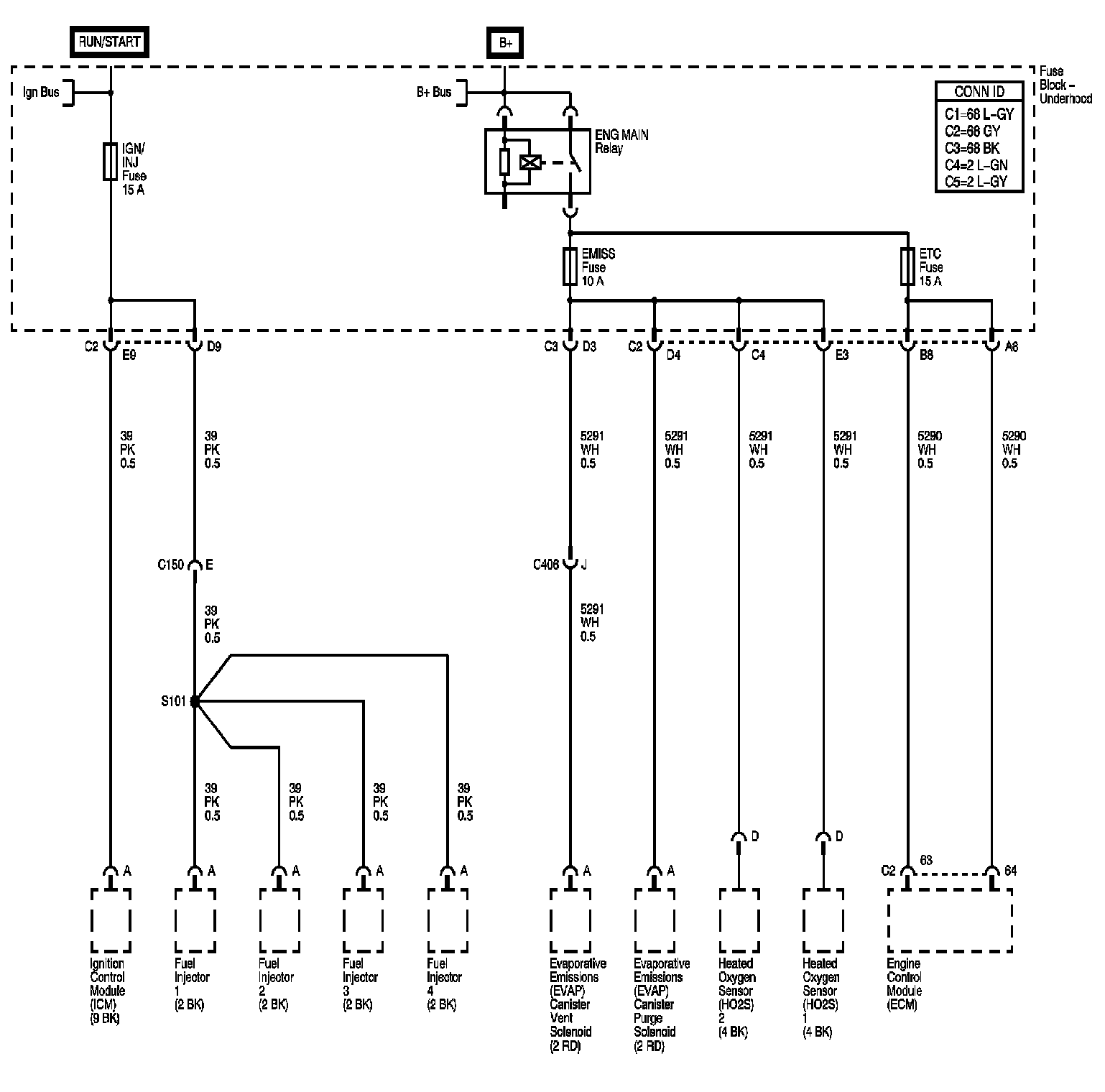

Power Distribution Diagram 10



Power Distribution Schematics

IGN/INJ, EMISS and ETC Fuses L61






Next Diagram: Power Distribution Diagram 11

Previous Diagram: Power Distribution Diagram 9

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
