Heating and Air Conditioning

HVAC Schematics

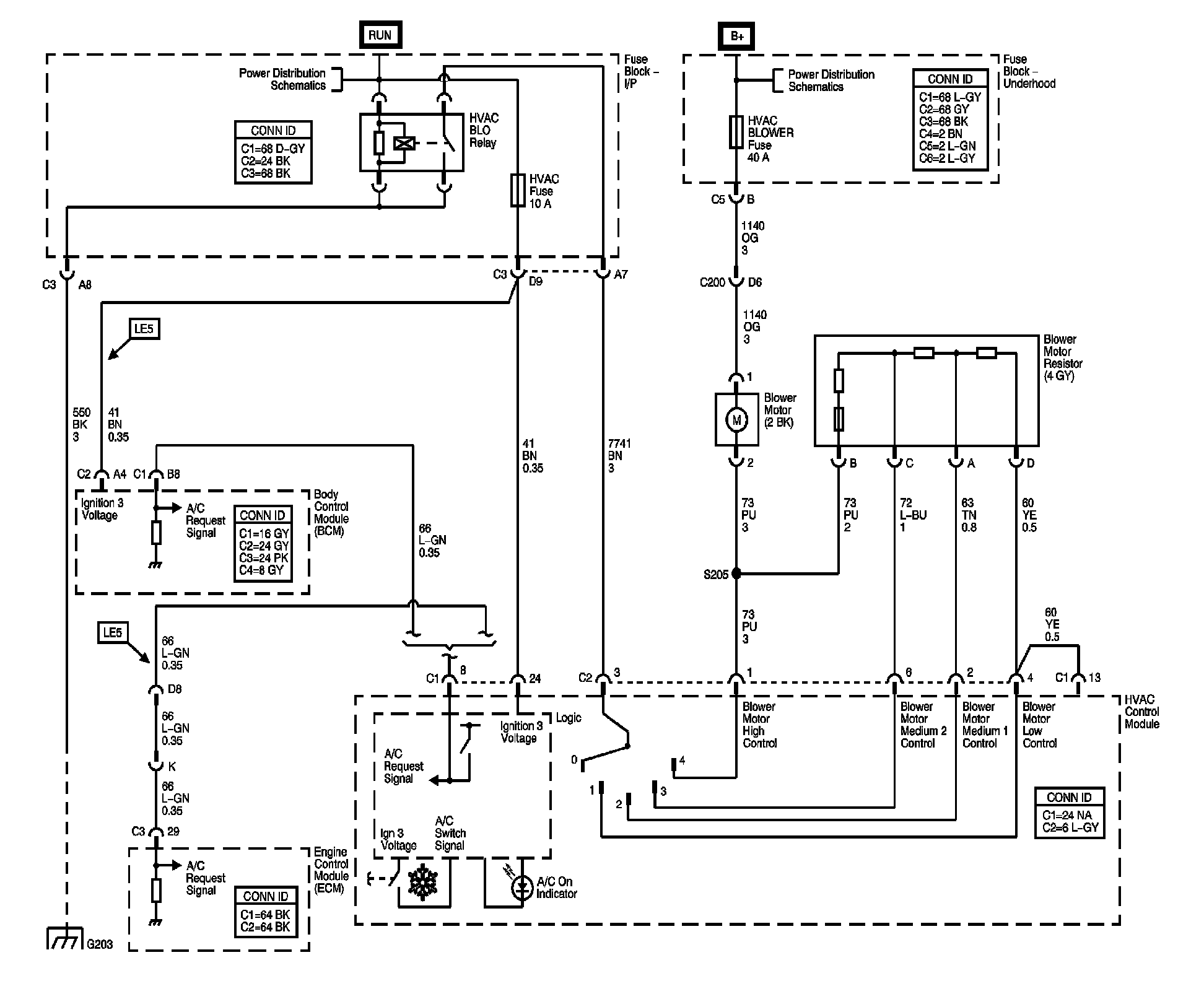

Blower Controls

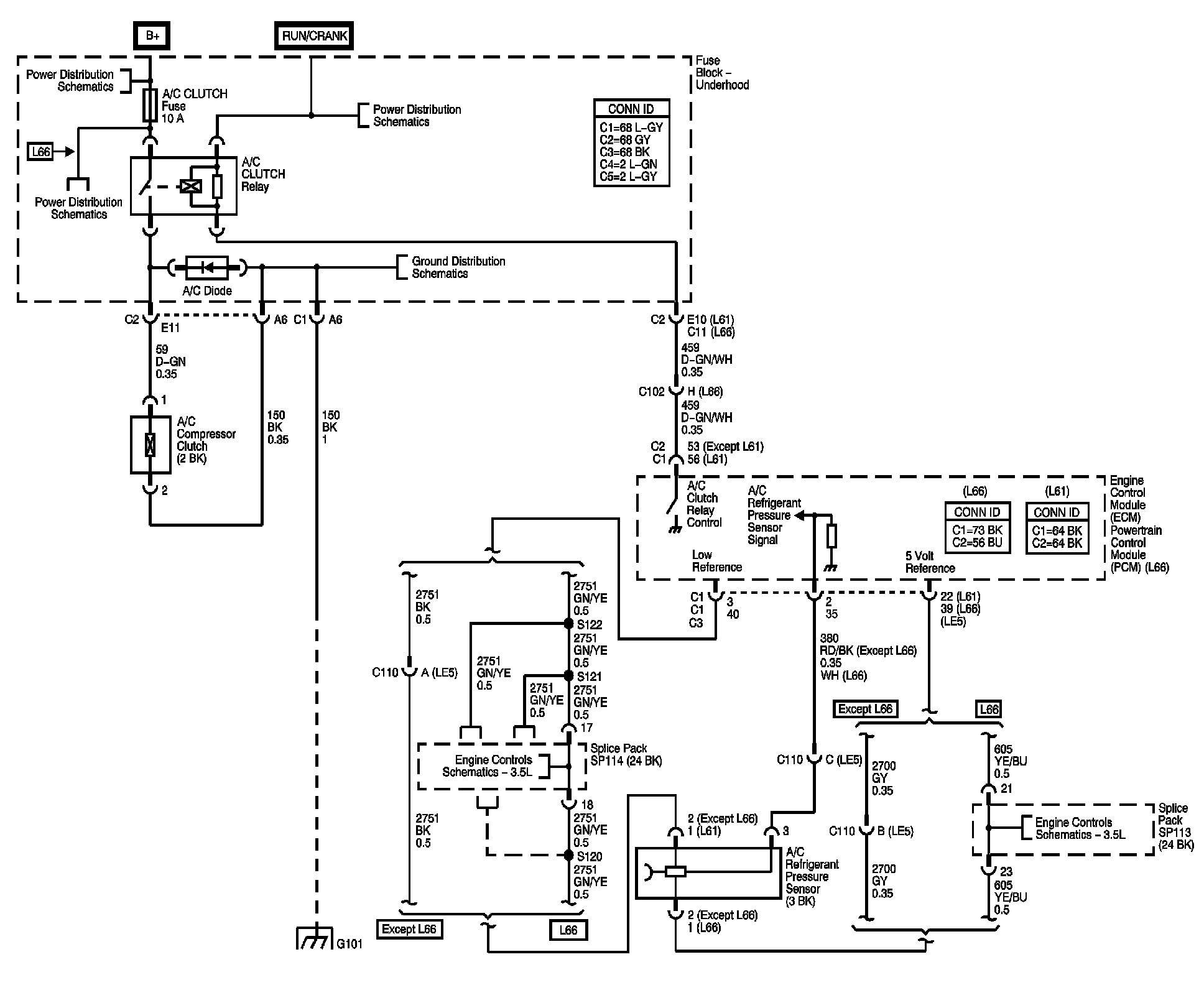

Compressor and Pressure Sensor Signals

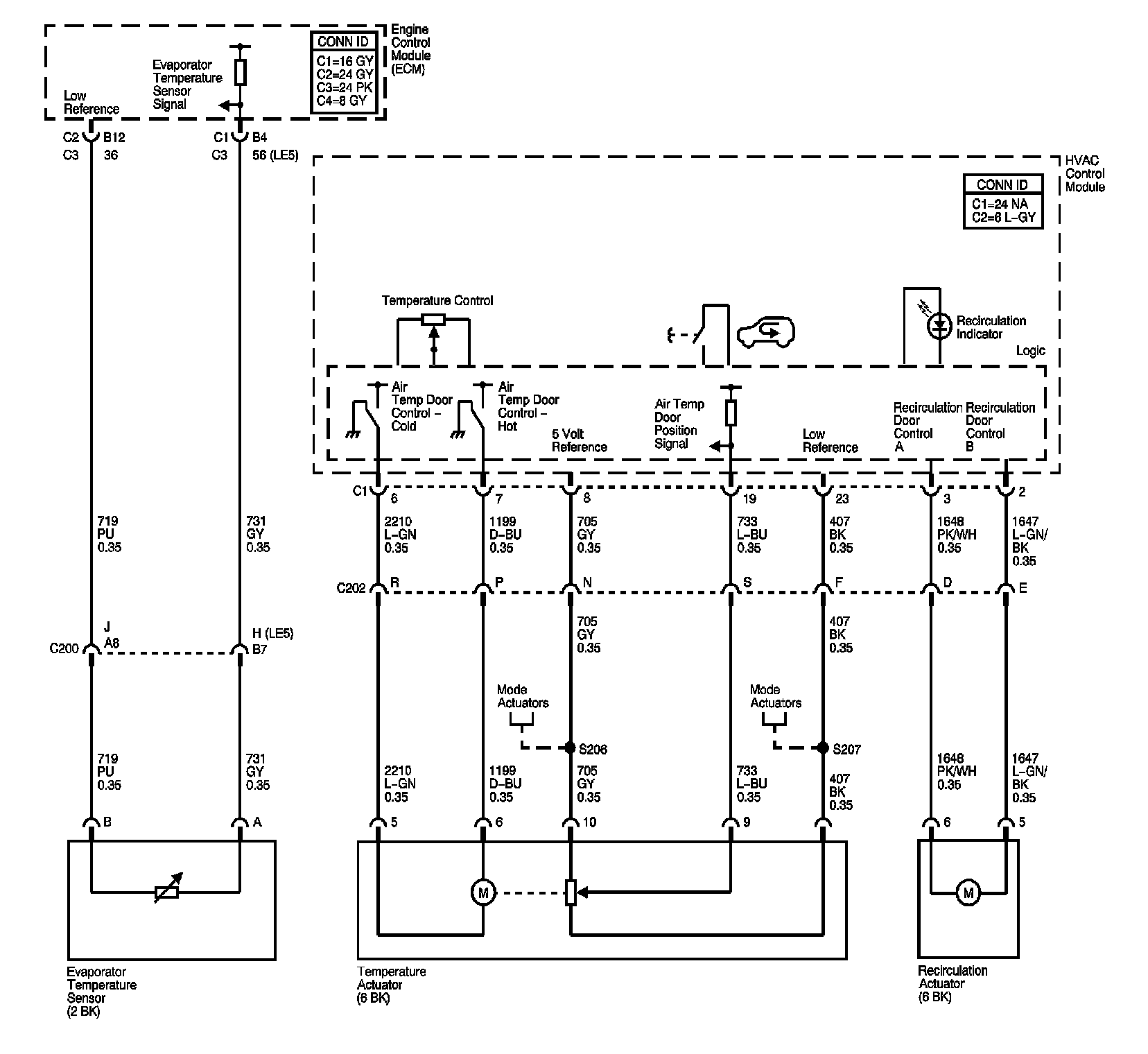

EVAP Temperature Sensor, Recirculation, and Temperature Actuators

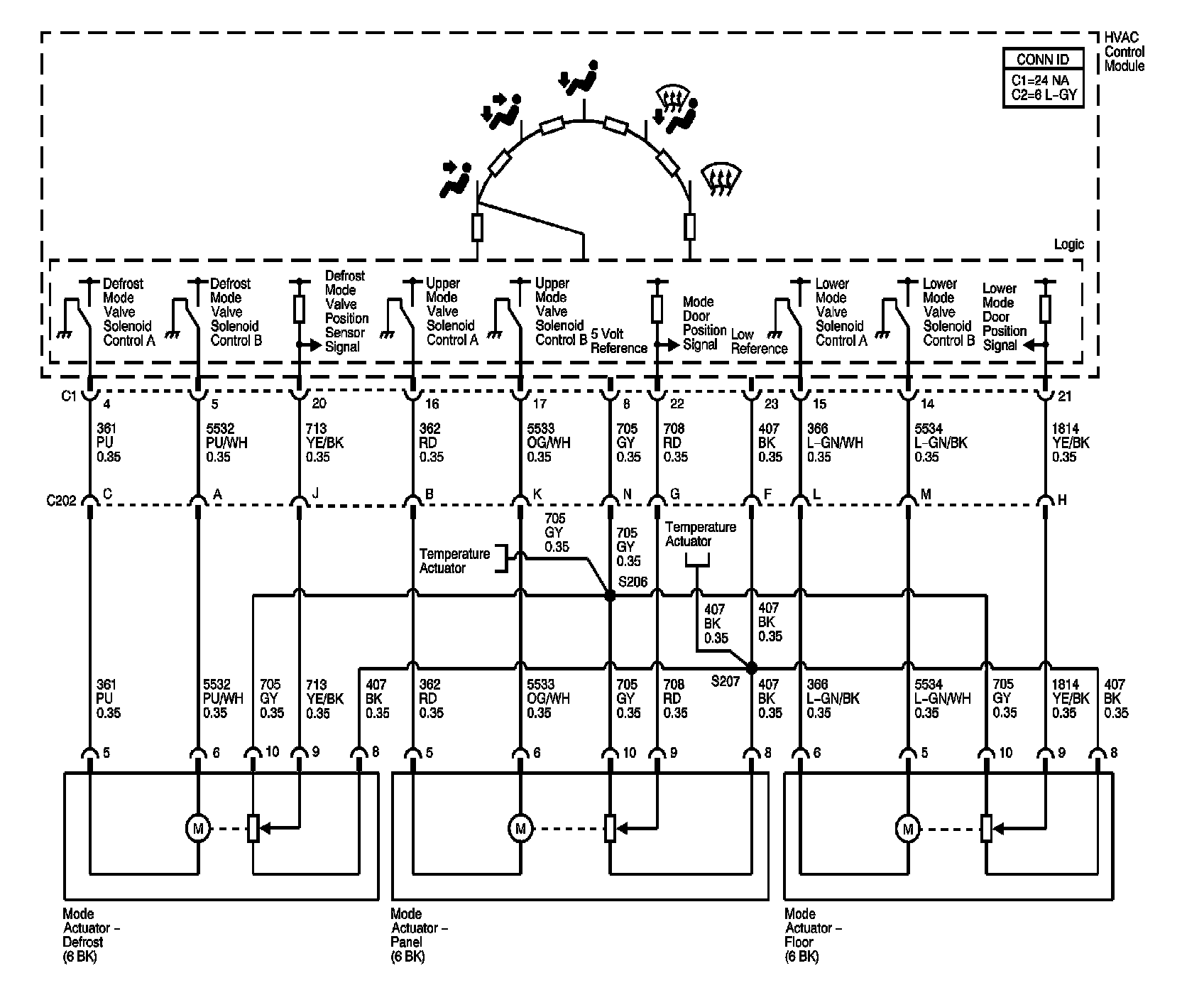

Mode Actuators






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
