Radio/Navigation System Schematics

Radio/Navigation System Schematics

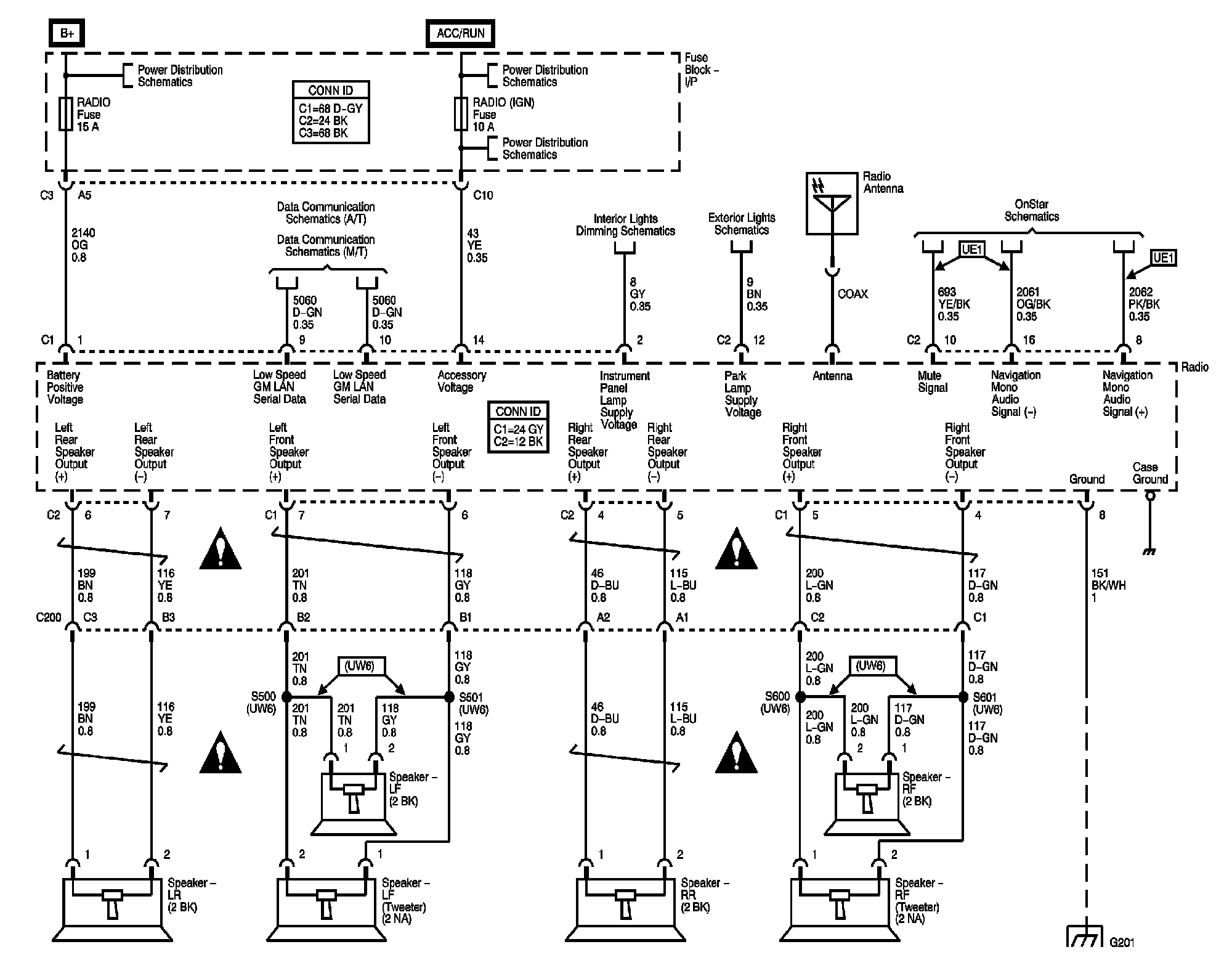

Power, Ground, and Speakers

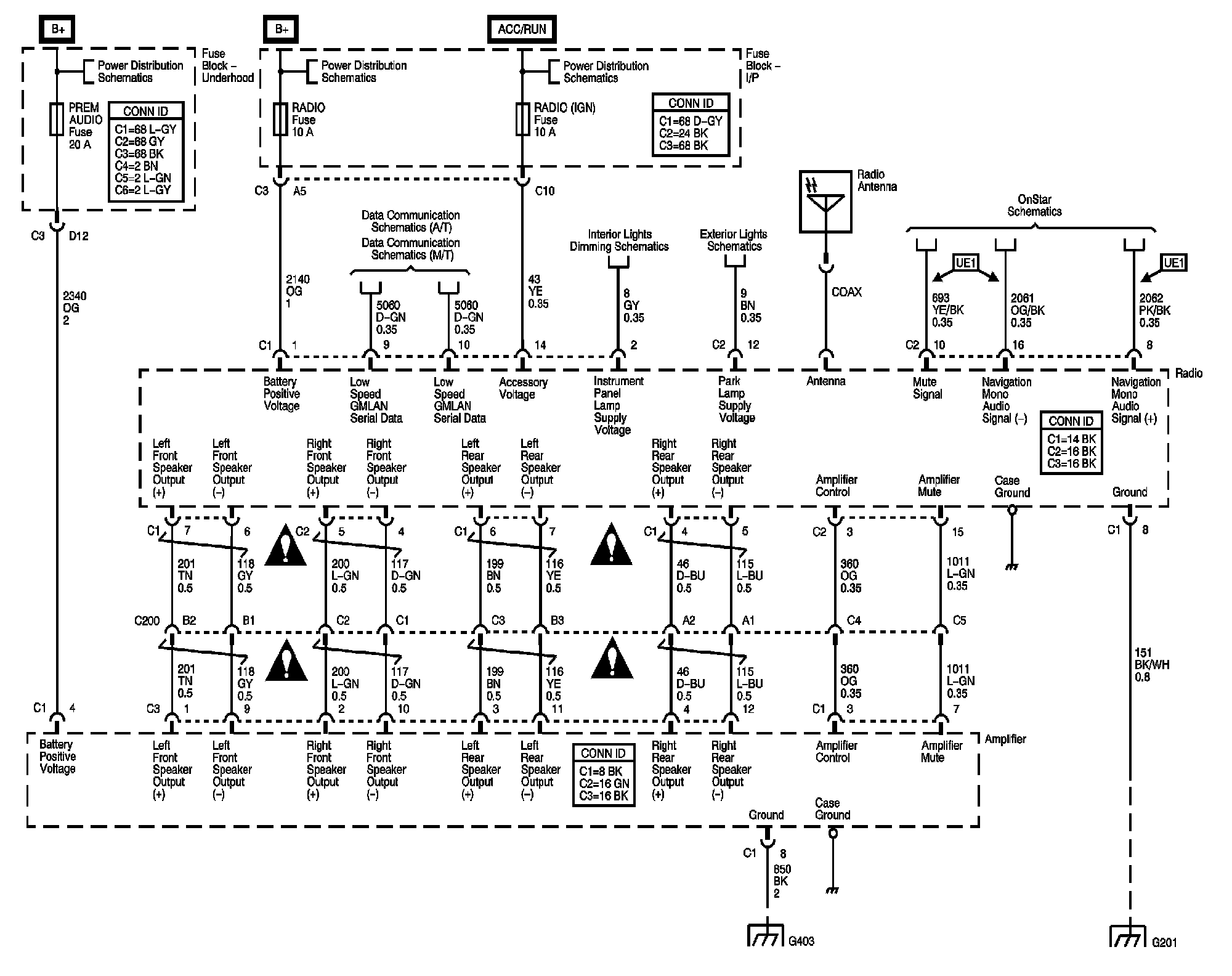

Power, Ground, and Amplifier Controls

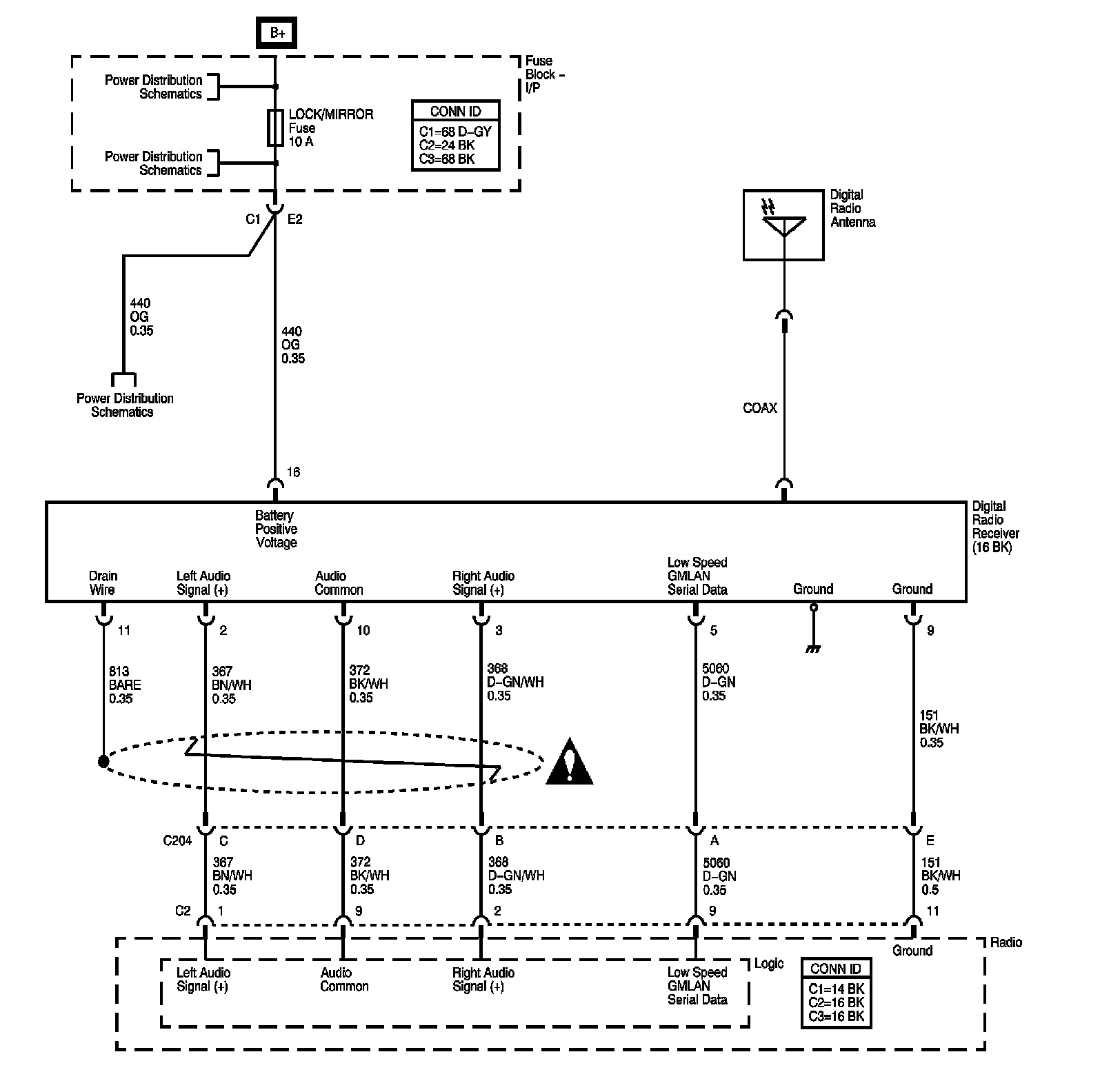

Digital Radio Receiver

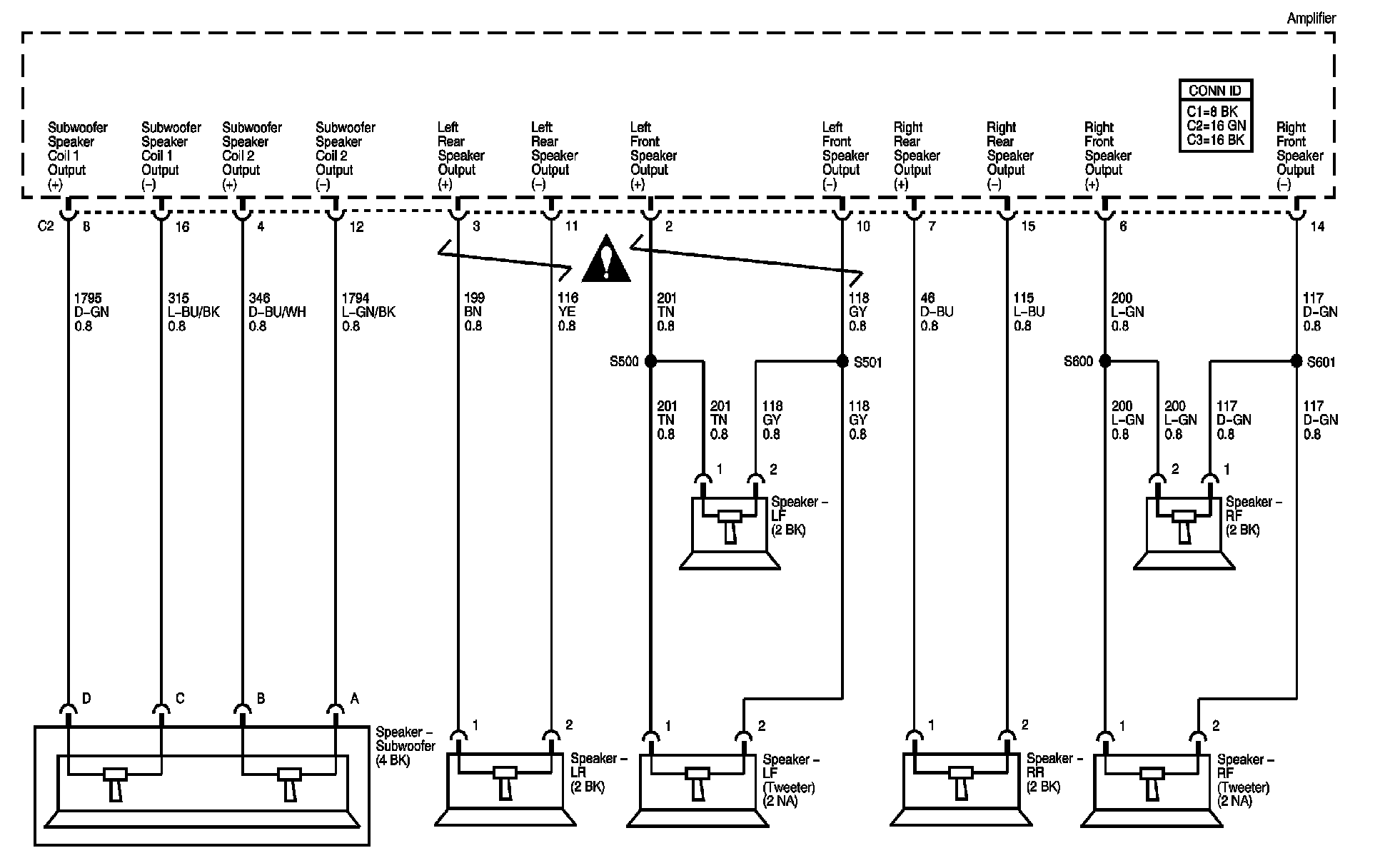

Speakers






Redundant Radio Controls






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
