C312



Inline Harness Connector End Views

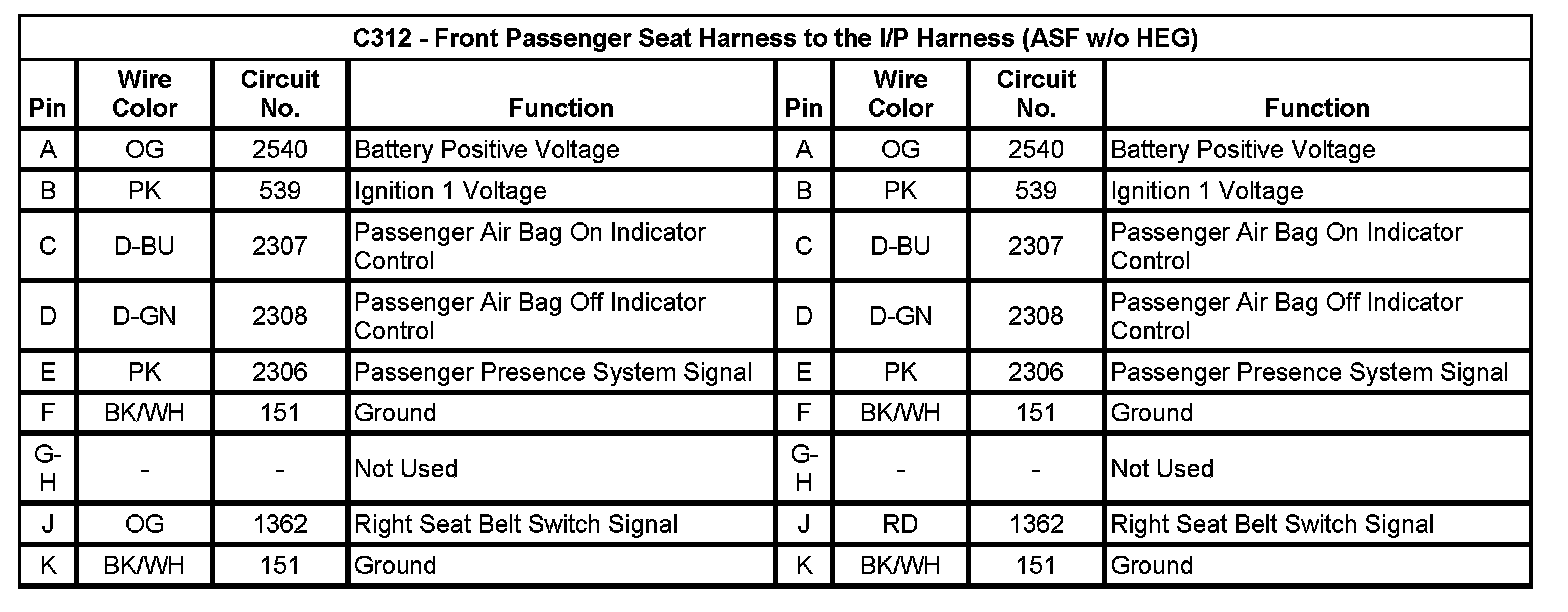

C312 - Front Passenger Seat Harness to the I/P Harness (ASF w/o HEG)
