Front Seat Cushion Outer Trim Panel Replacement (6-Way)

Front Seat Cushion Outer Trim Panel Replacement (6-Way)

Removal Procedure

1. Remove the front seat. Refer to Front Seat Replacement - Bucket .
2. Remove the recliner handle trim by pulling firmly on the trim.




3. Remove the trim panel screws.

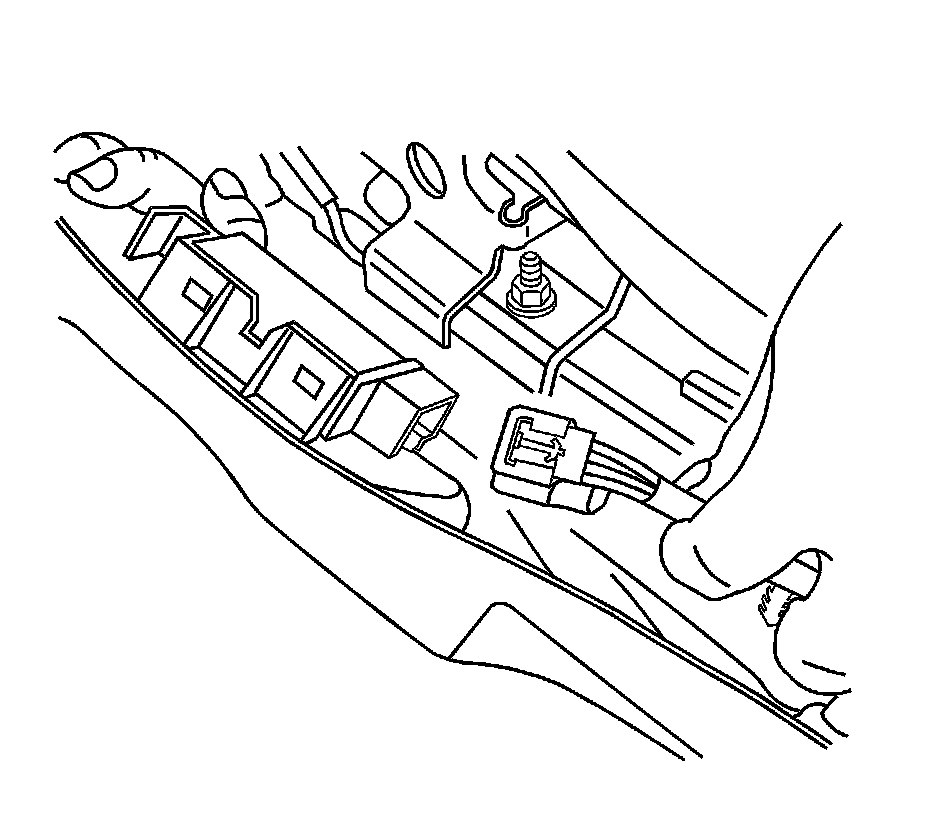

4. Disconnect the electrical connector.




5. Remove the trim panel from the seat.



Installation Procedure





1. Connect the electrical connector.

Notice: Refer to Fastener Notice .

2. Position the outer trim panel on the seat. Secure the panel with the panel screws.

Tighten the screws to 2.5 N.m (22 lb in).





3. Position the cover over the recliner handle. Push firmly to lock the handle into place.
4. Install the front seat. Refer to Front Seat Replacement - Bucket .
