Front Seat Back Panel Replacement

Front Seat Back Panel Replacement

Removal Procedure

1. Adjust the seat to full forward.




2. Fold the seat flat.

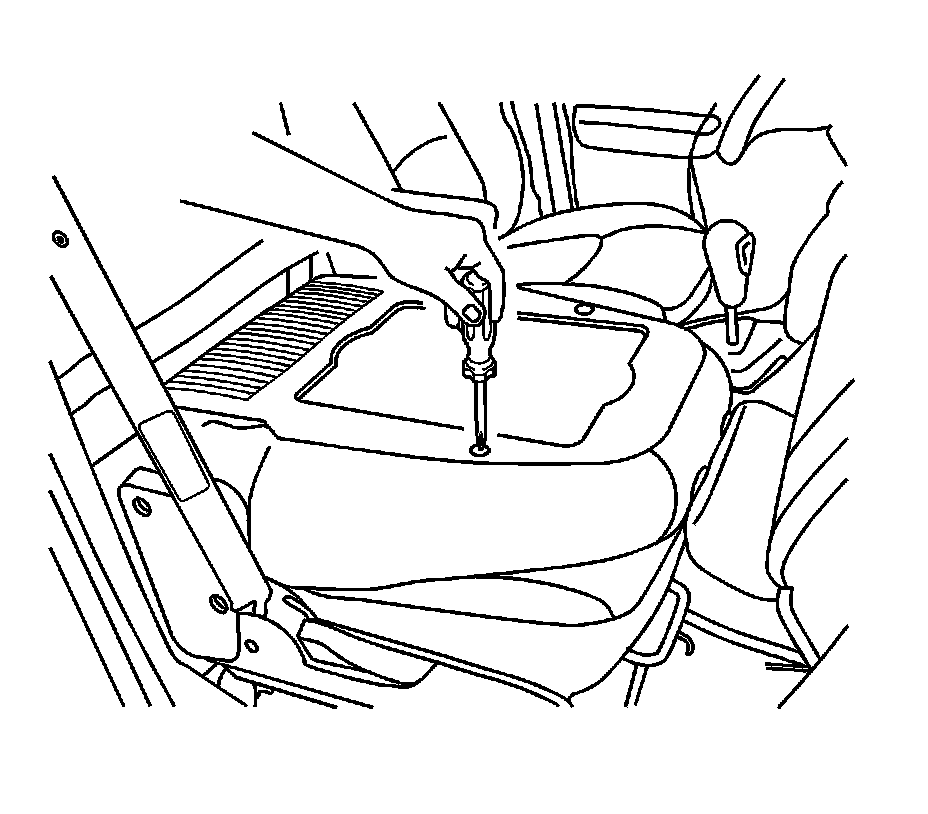

3. Remove the screws from the seat back panel.
4. Remove the seat back panel.



Installation Procedure





1. Install the panel to the seat back.

Notice: Refer to Fastener Notice .

2. Install the screws to the seat back panel.

Tighten the back panel screws to 2 N.m (18 lb in).
Return the seat to the original position.
