Diagnostic Trouble Code (DTC) List - Vehicle

Diagnostic Trouble Code (DTC) List - Vehicle

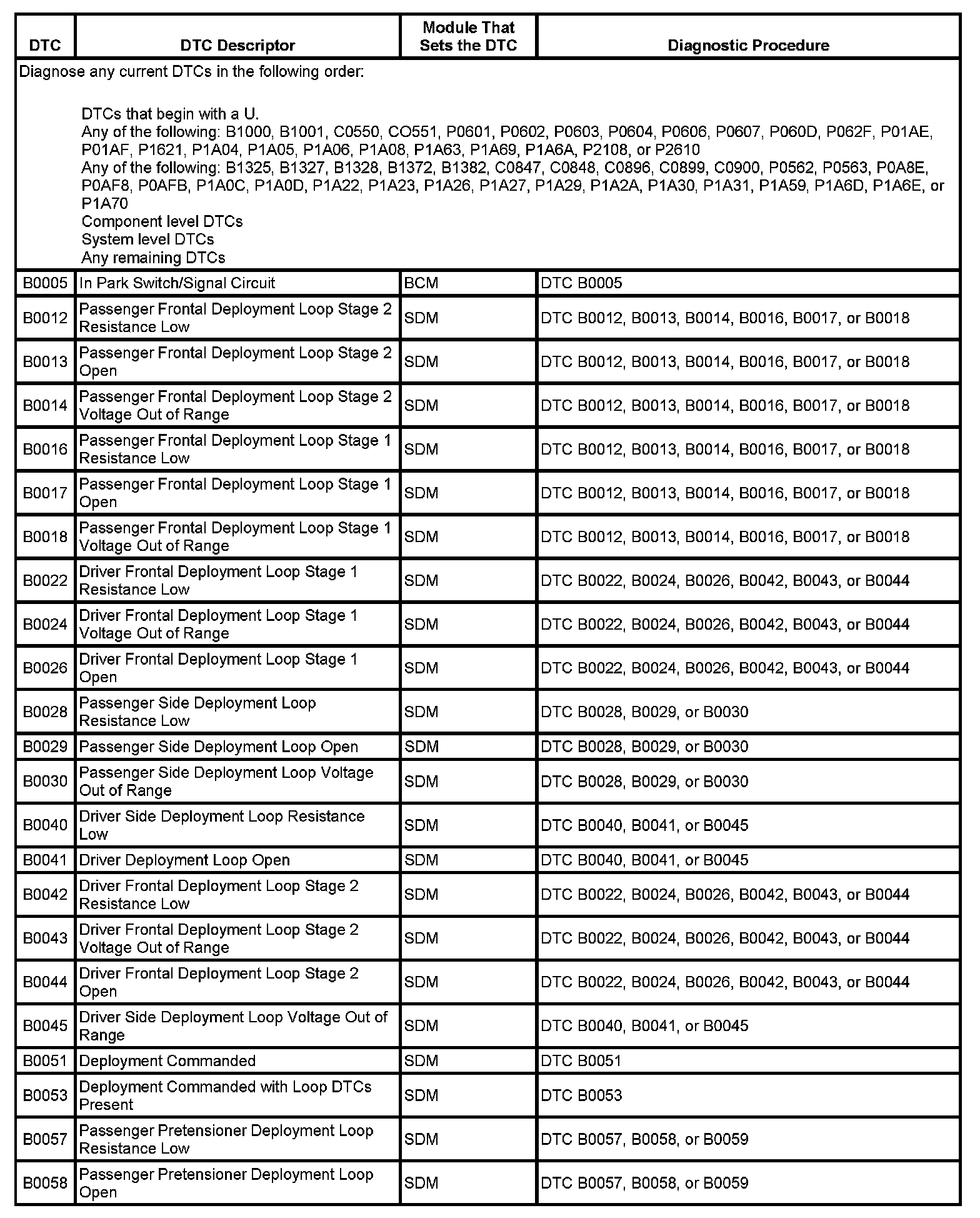

B0005-B0058:

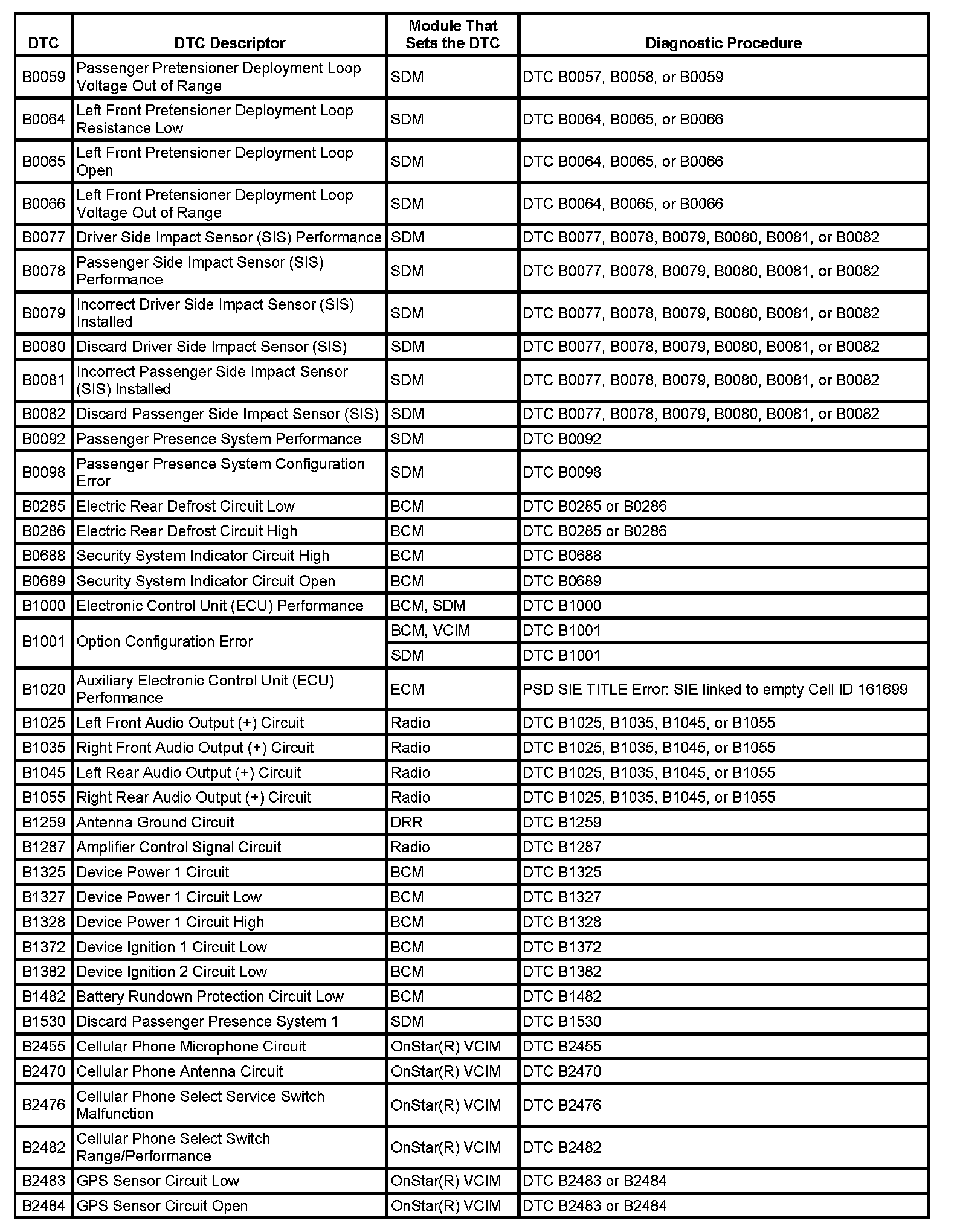

B0059-B2484:

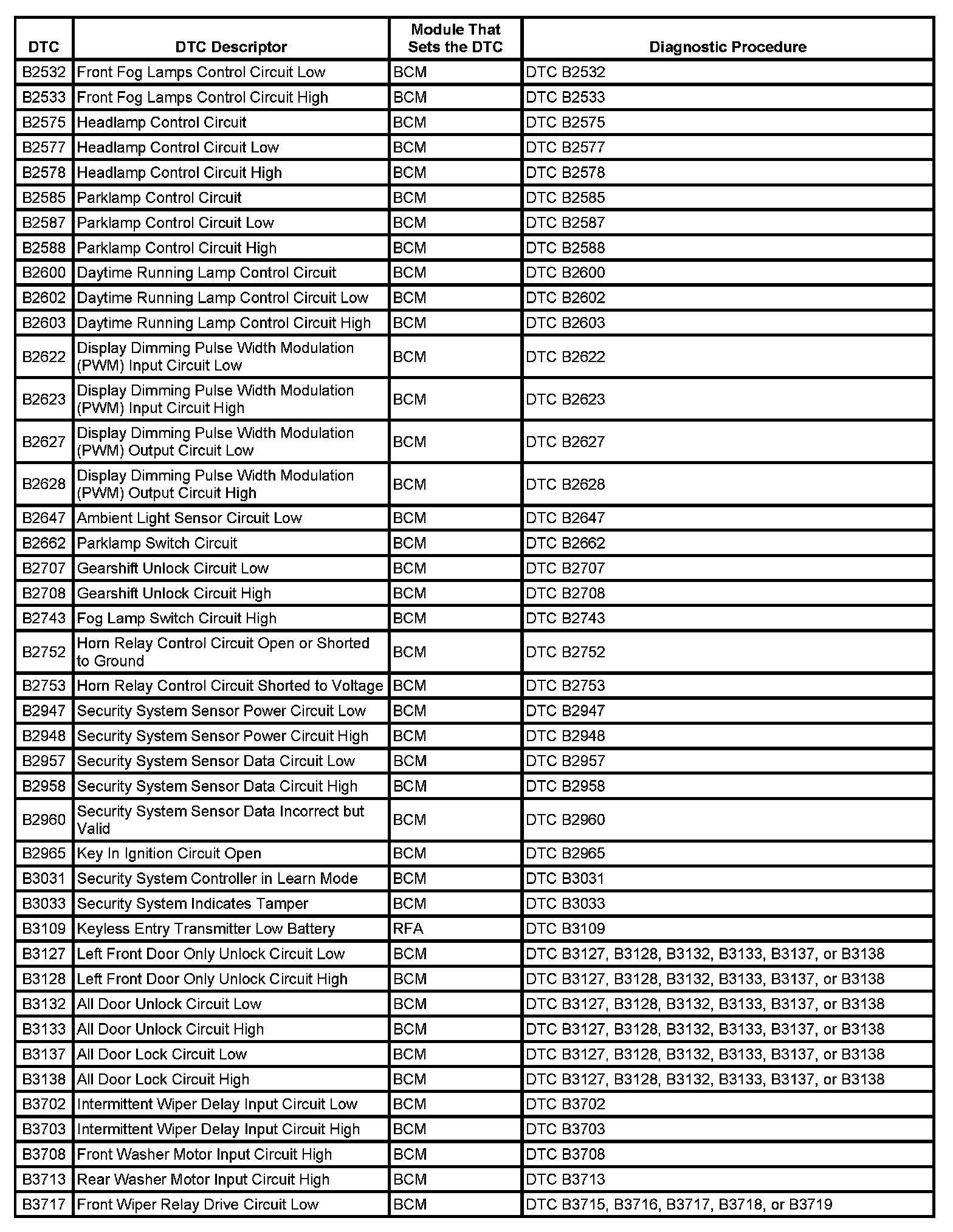

B2532-B3717:

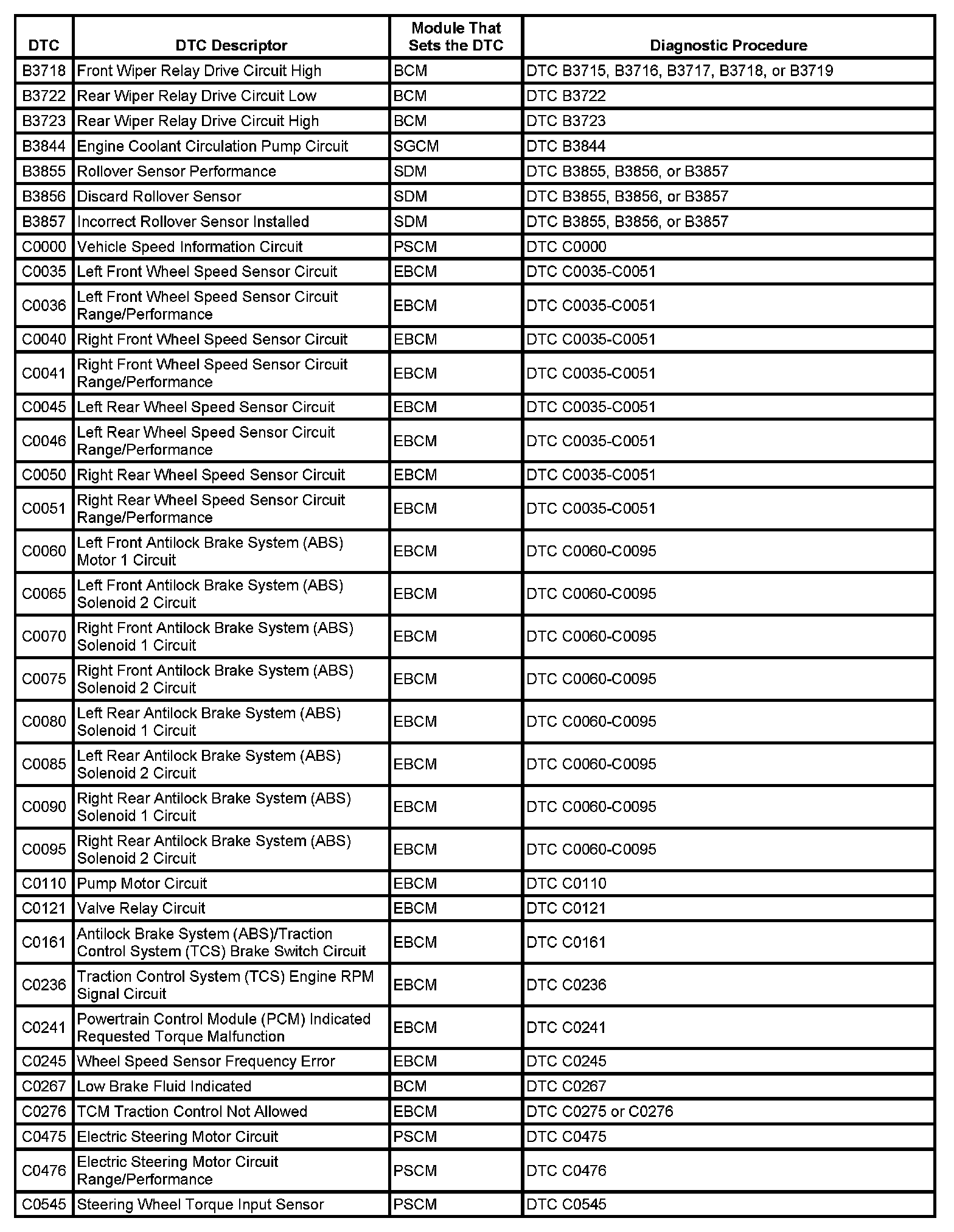

B3718-B3857 / C0000-C0545:

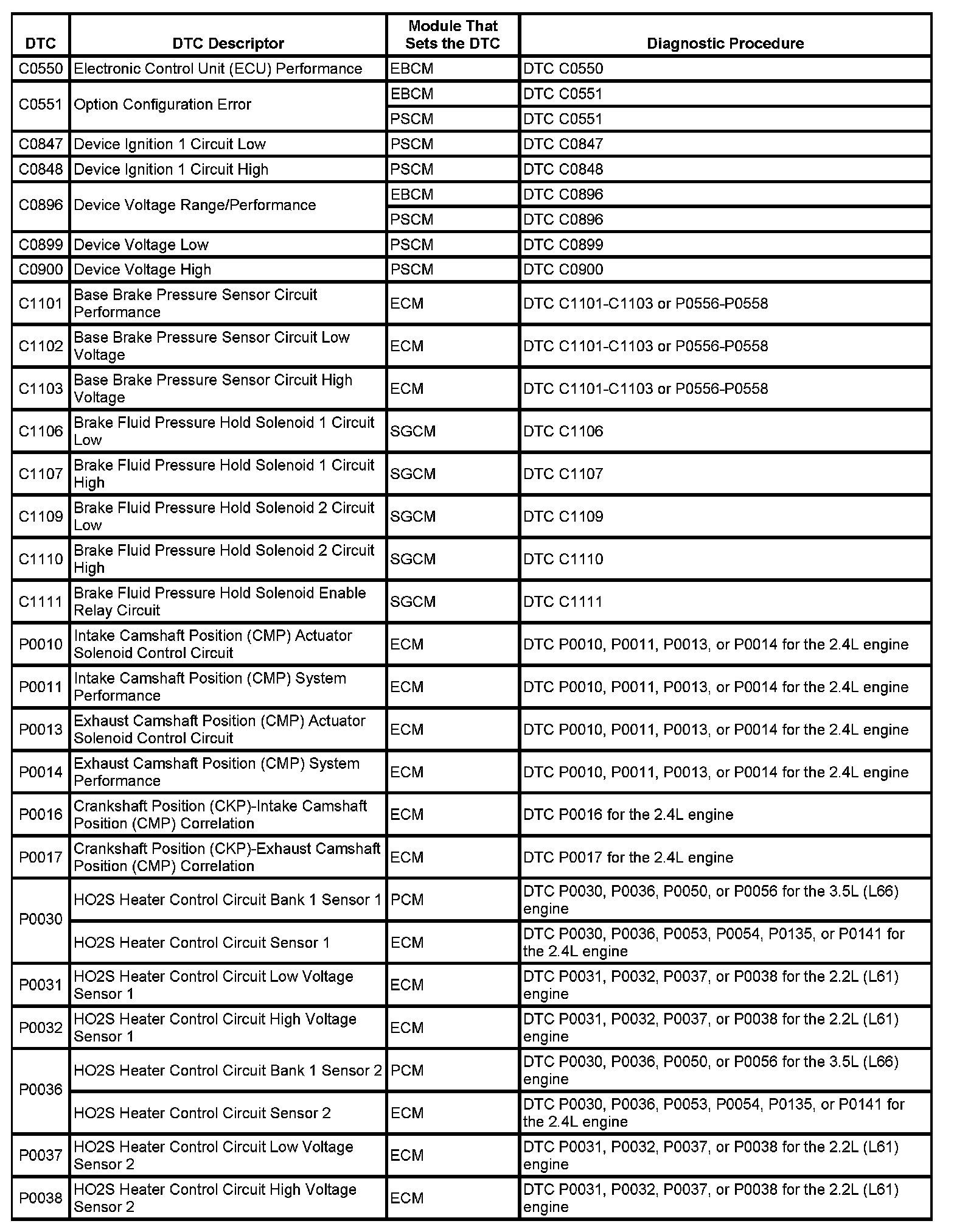

C0550-C1111 / P0010-P0038:

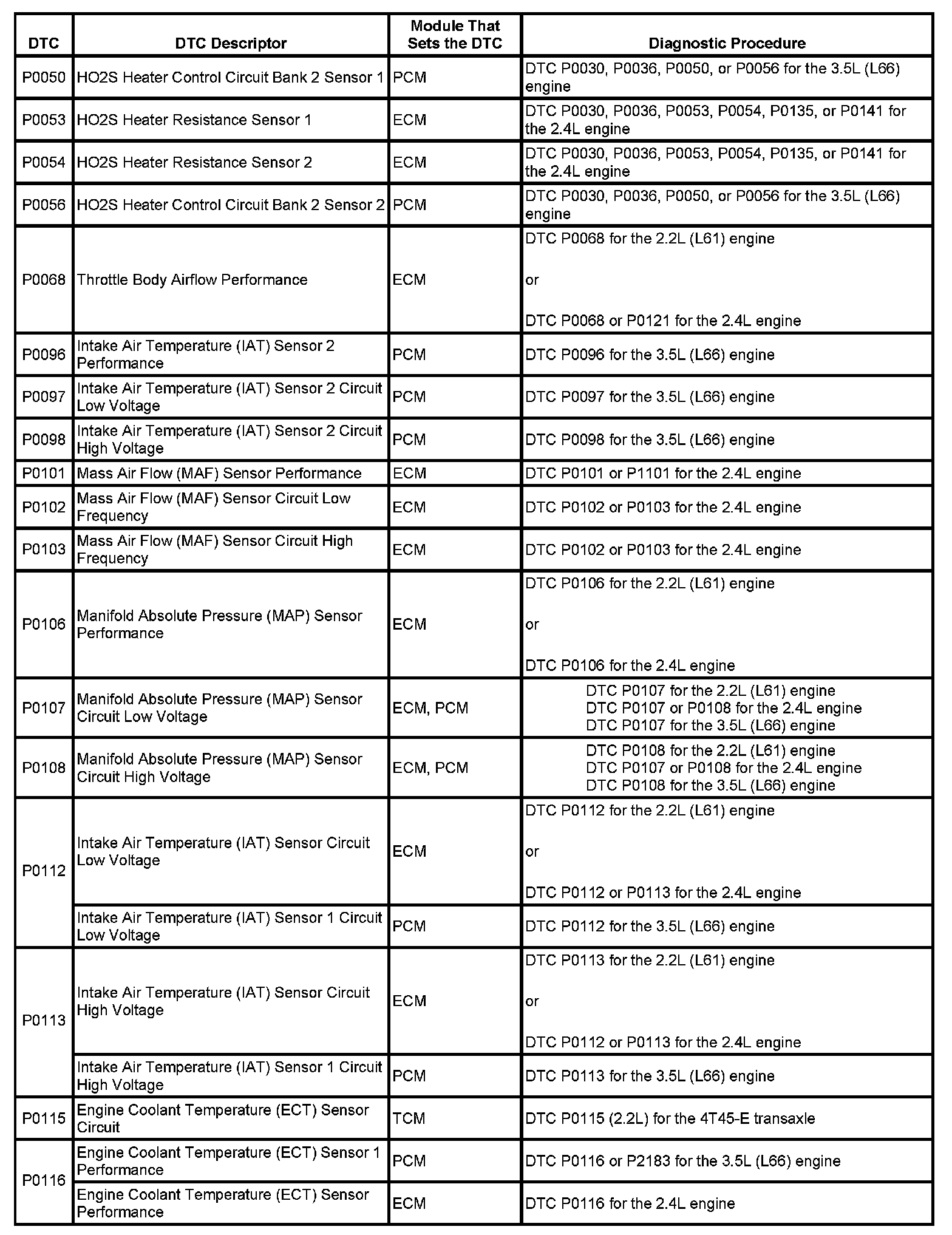

P0050-P0116:

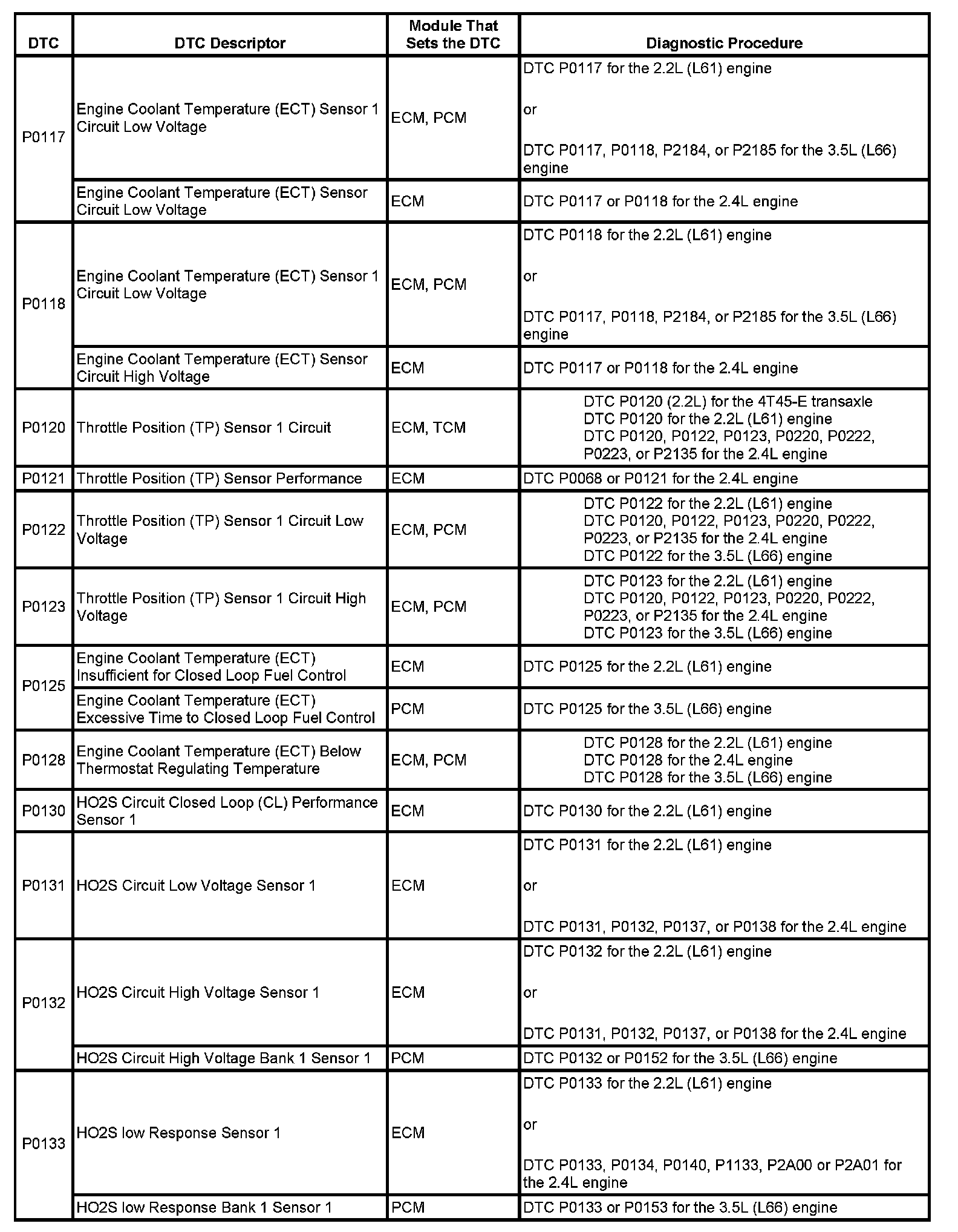

P0117-P0133:

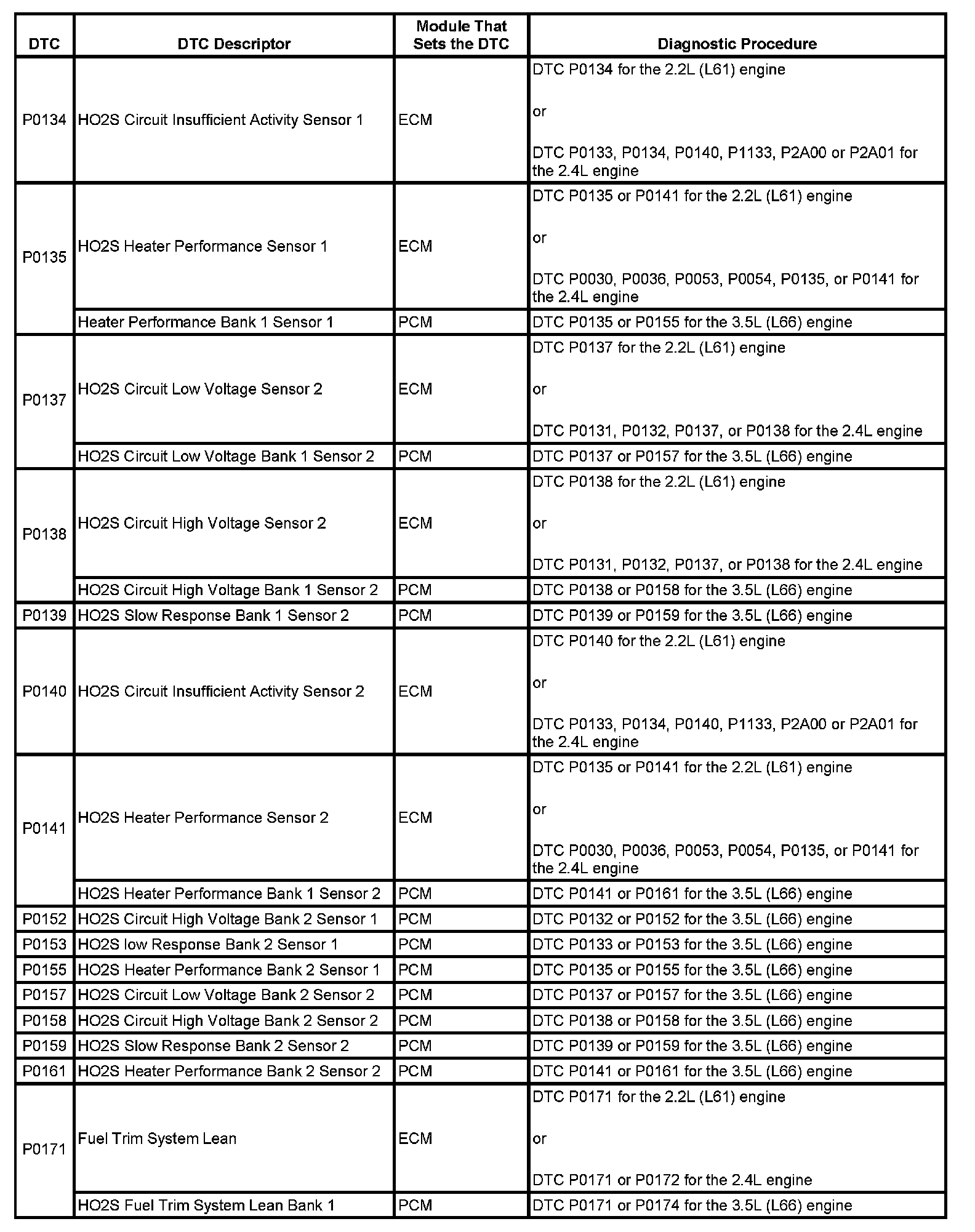

P0134-P0171:

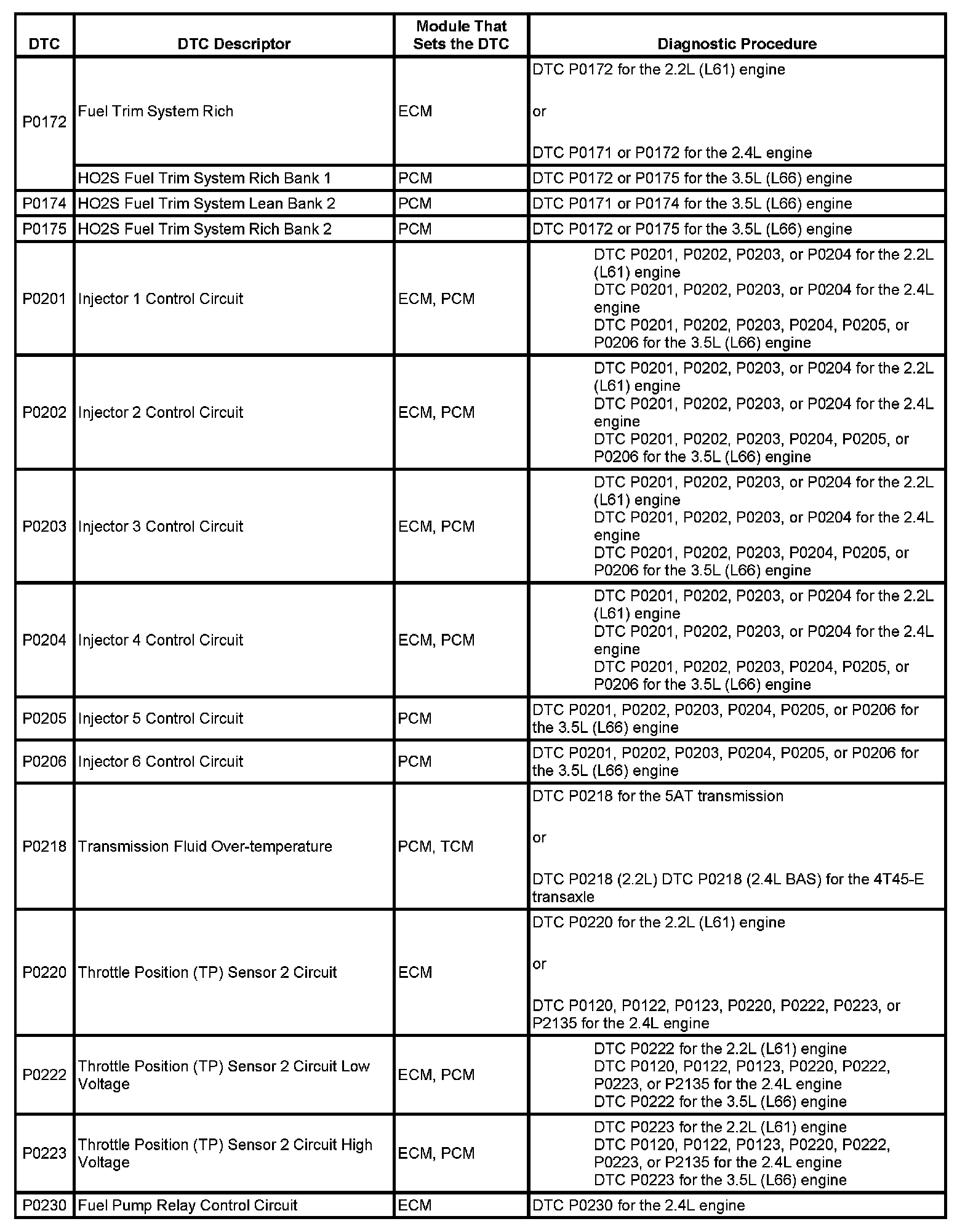

P0172-P0230:

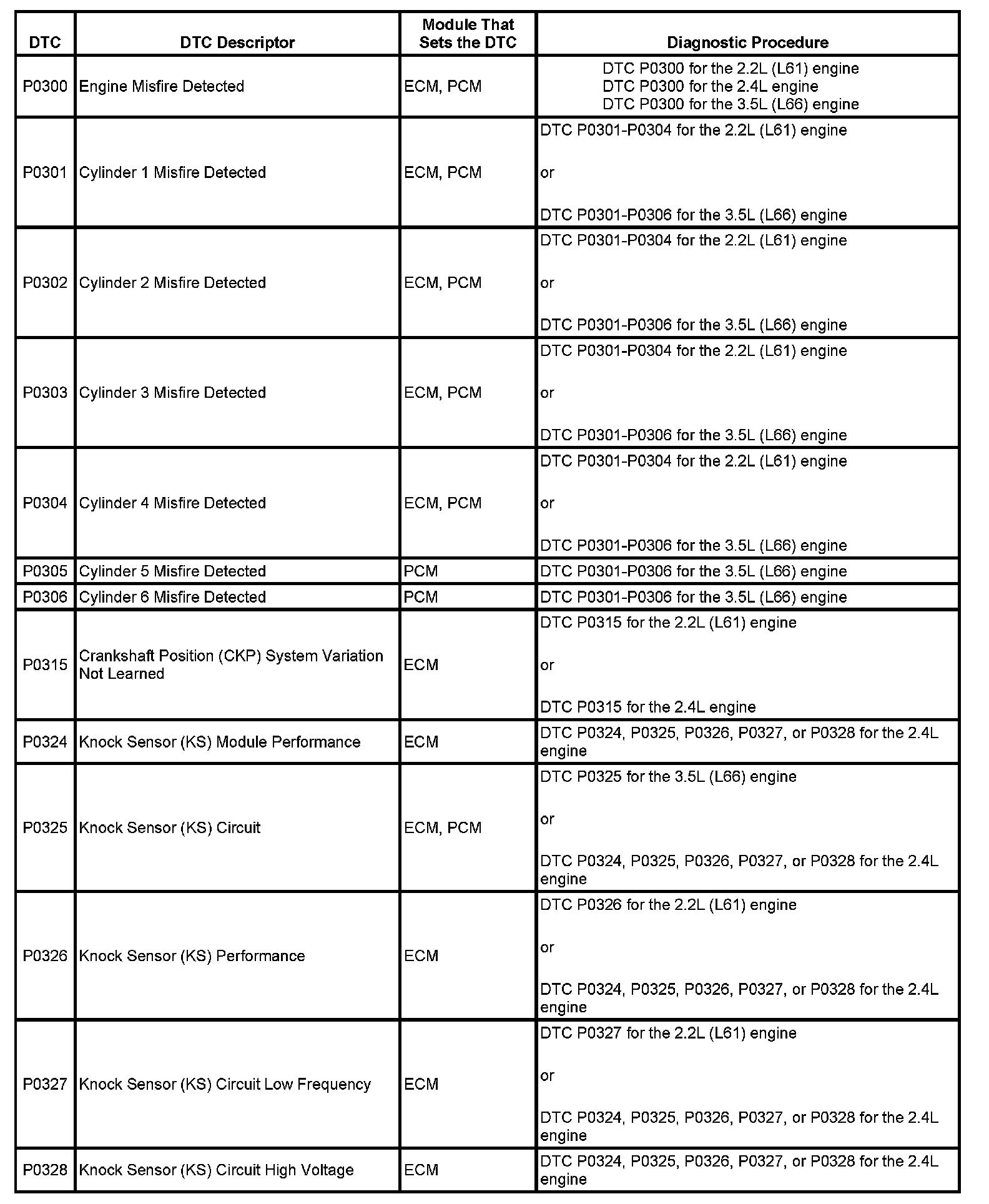

P0300-P0328:

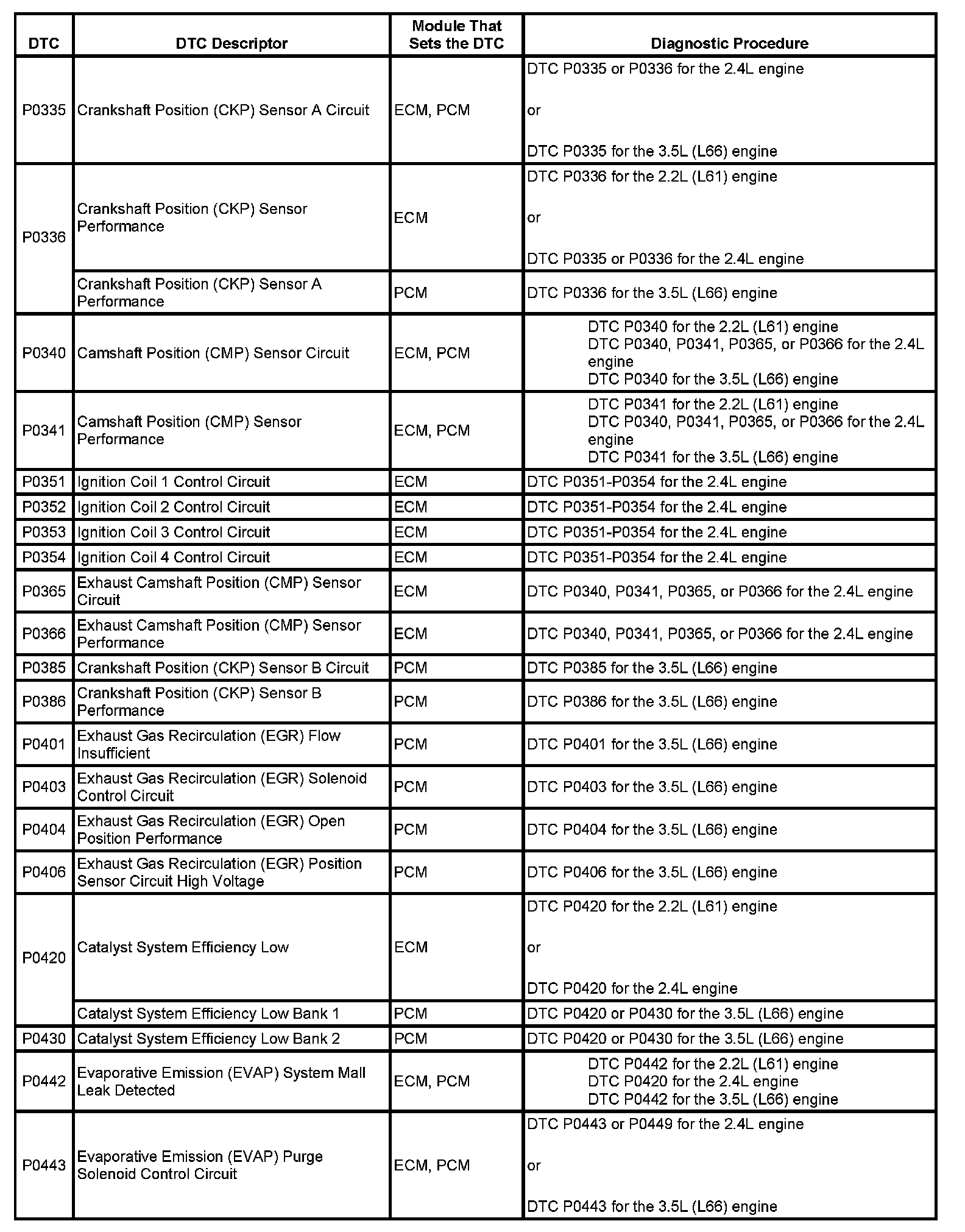

P0335-P0443:

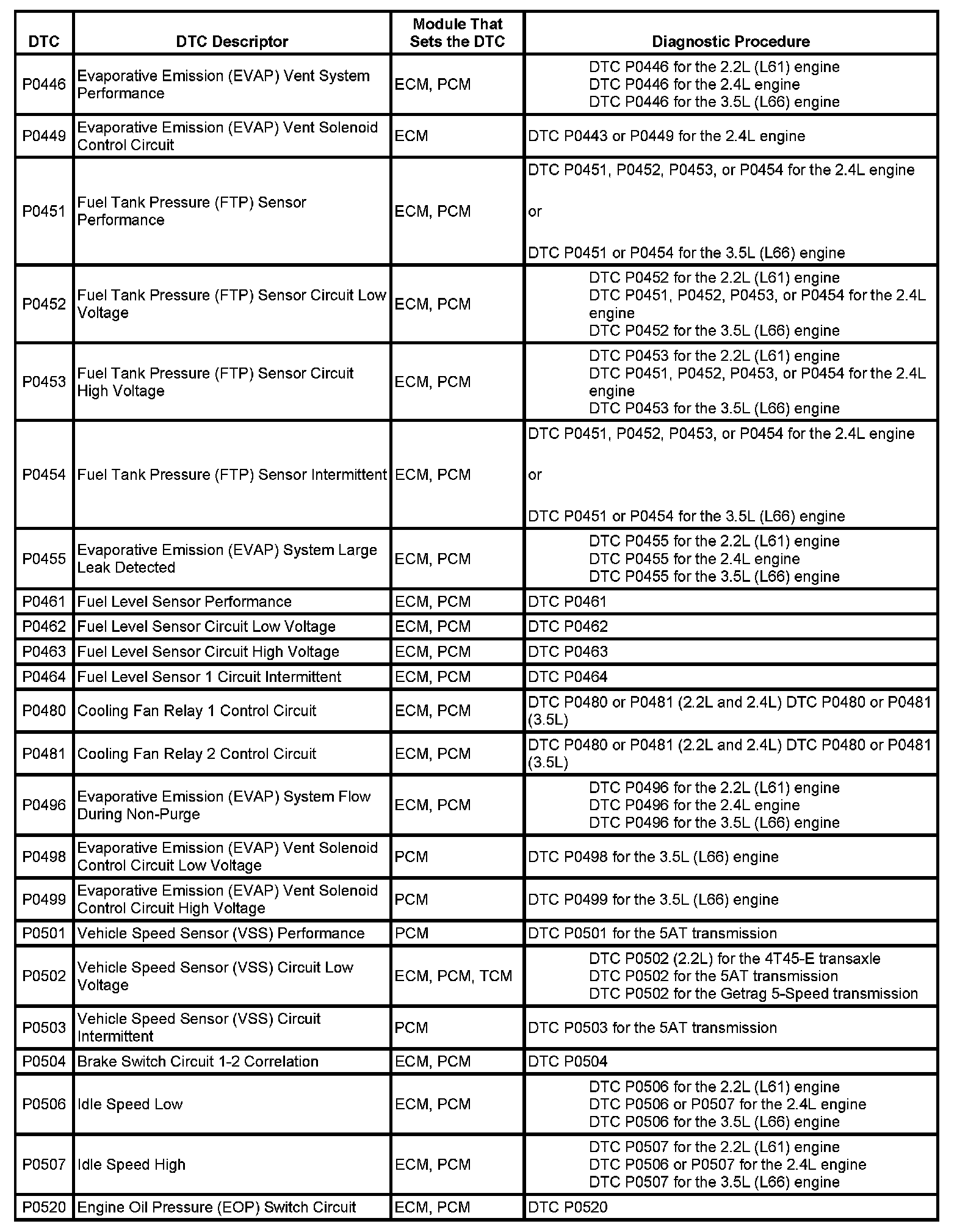

P0446-P0520:

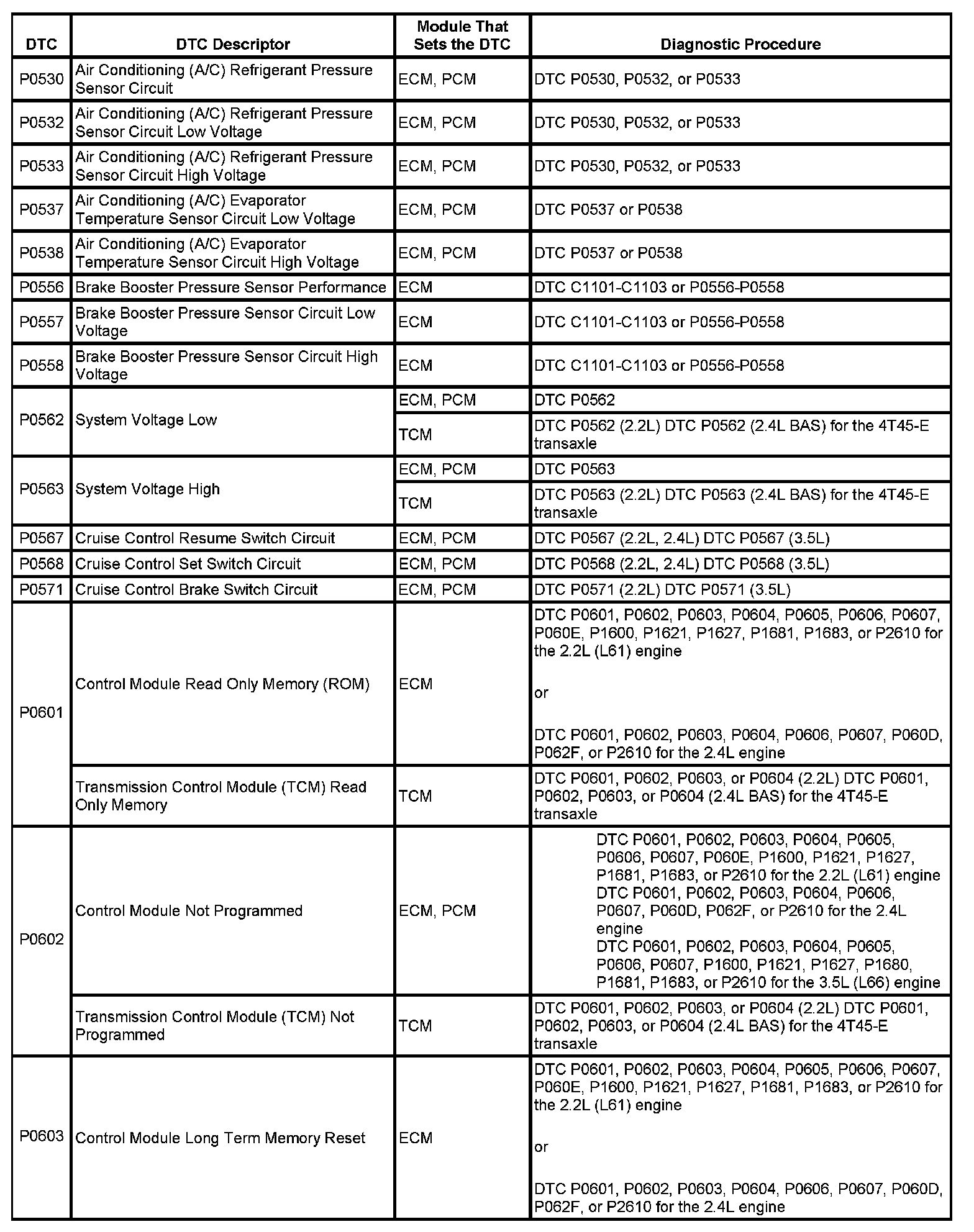

P0530-P0603:

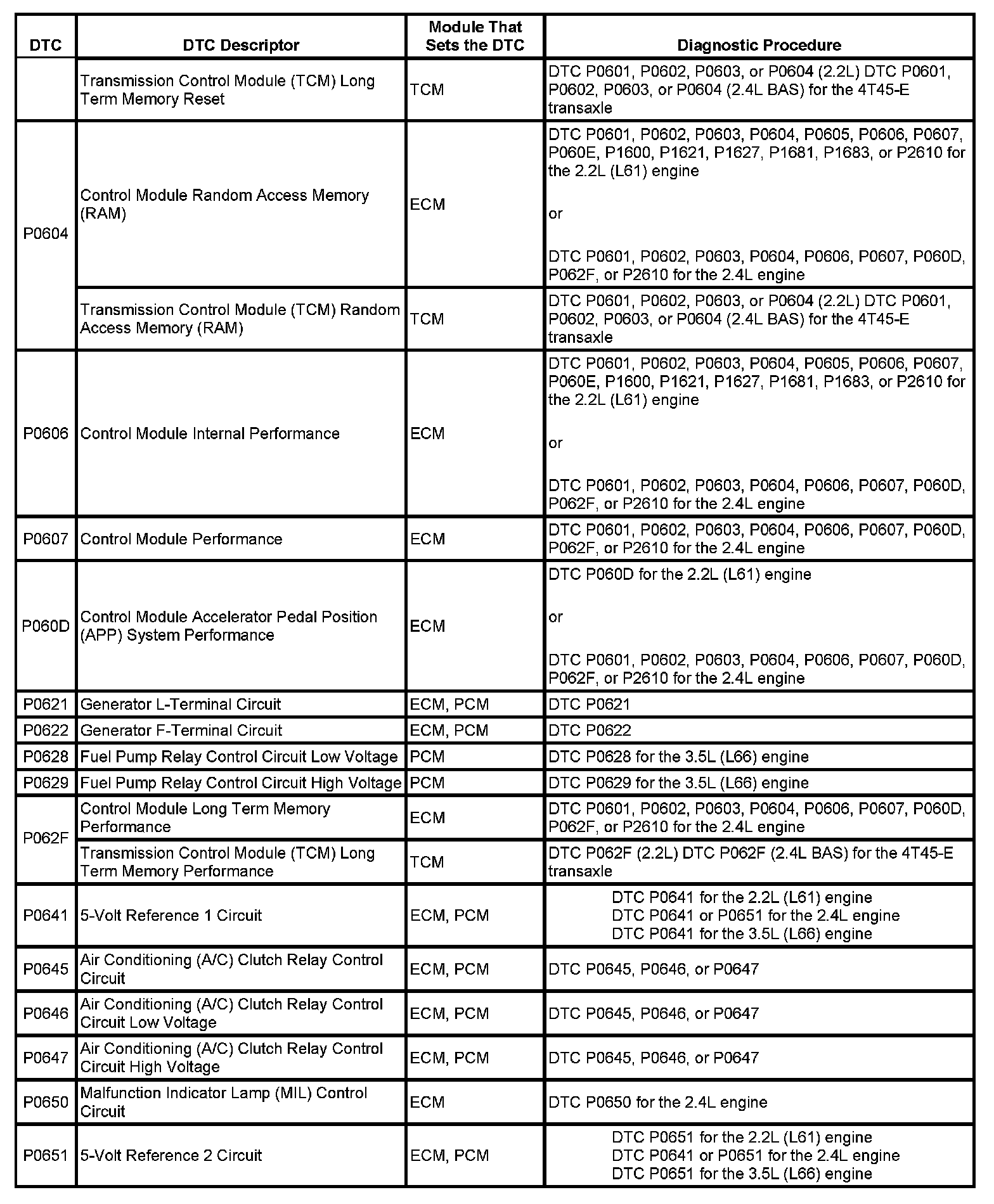

P0604-P0651:

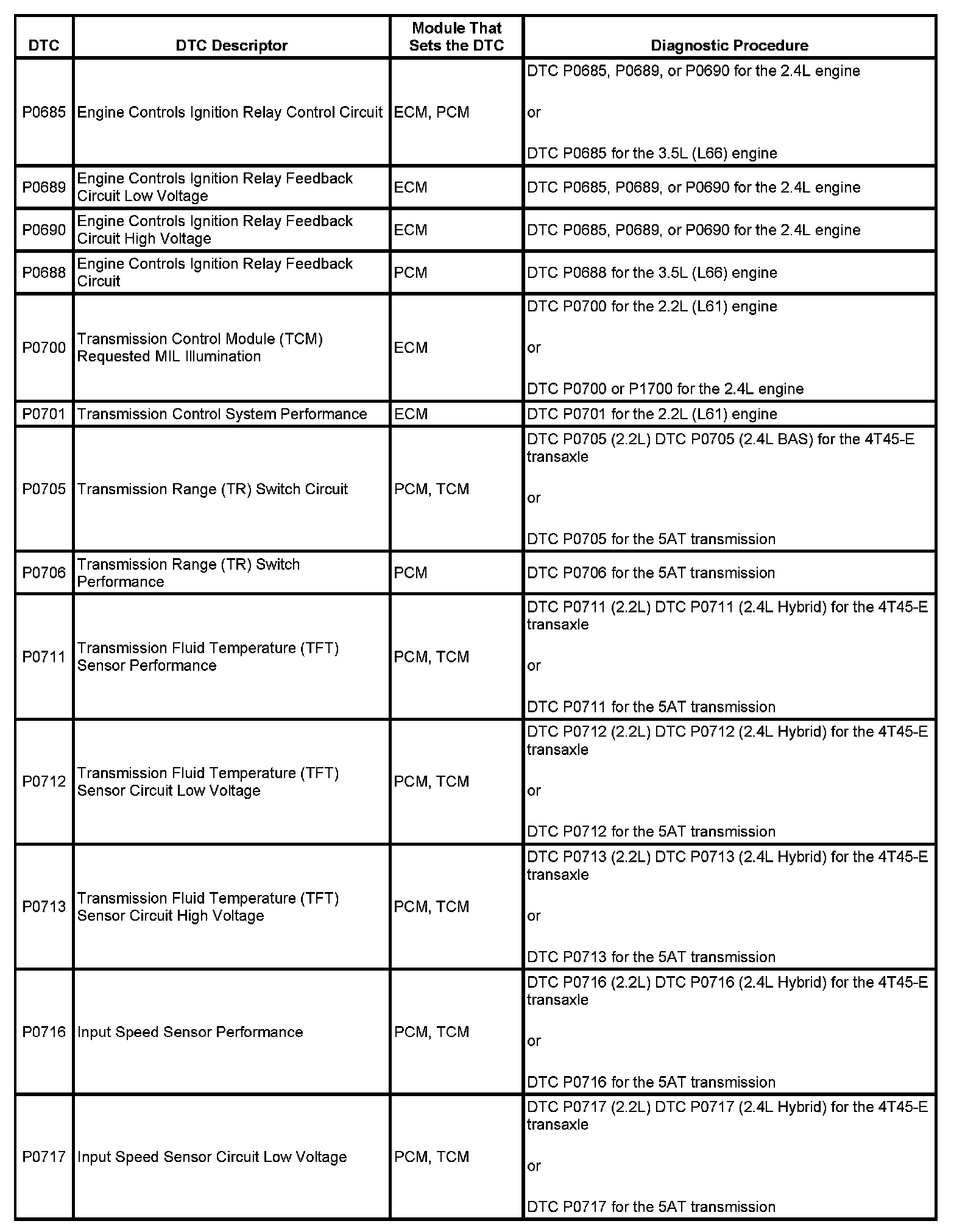

P0685-P0717:

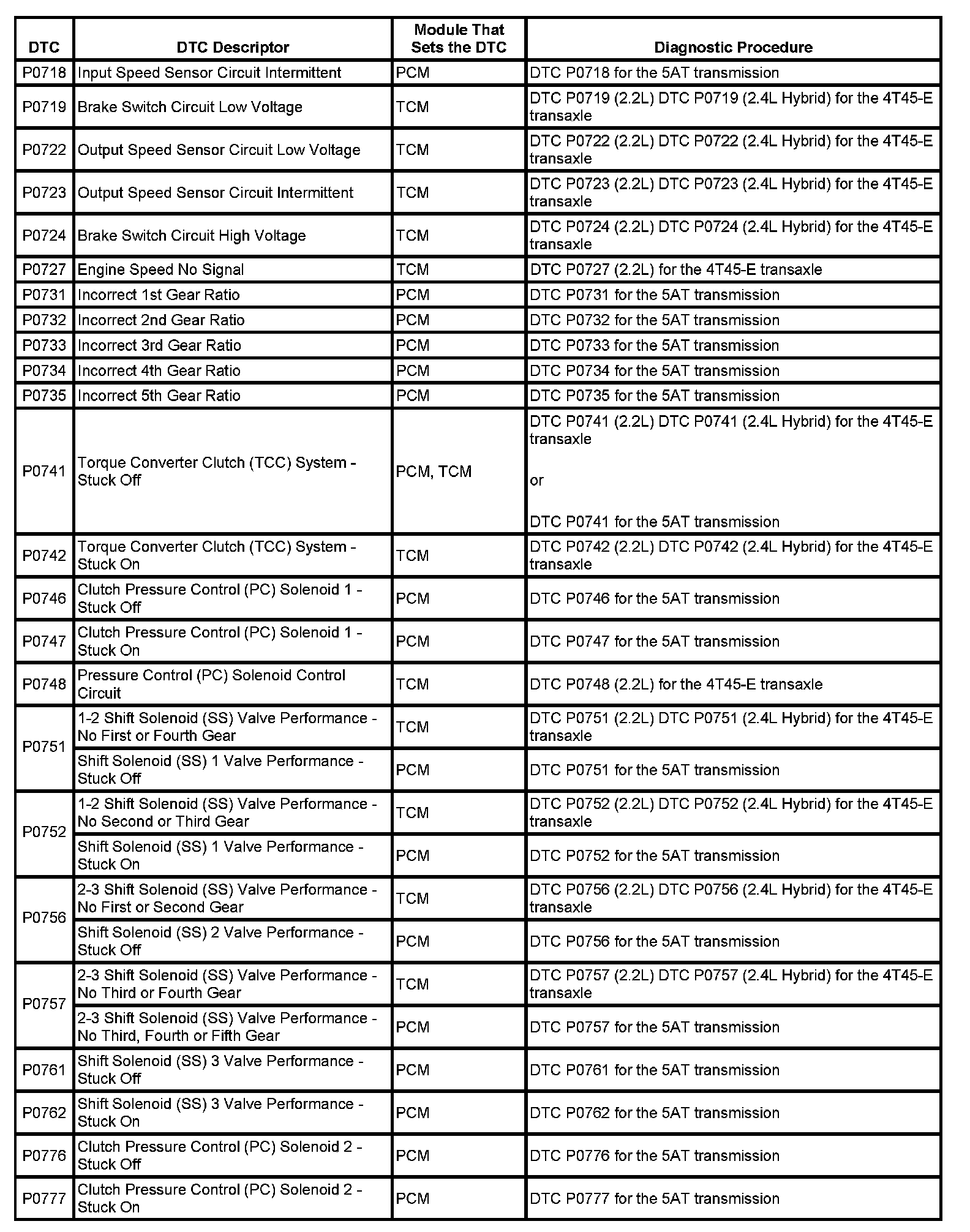

P0718-P0777:

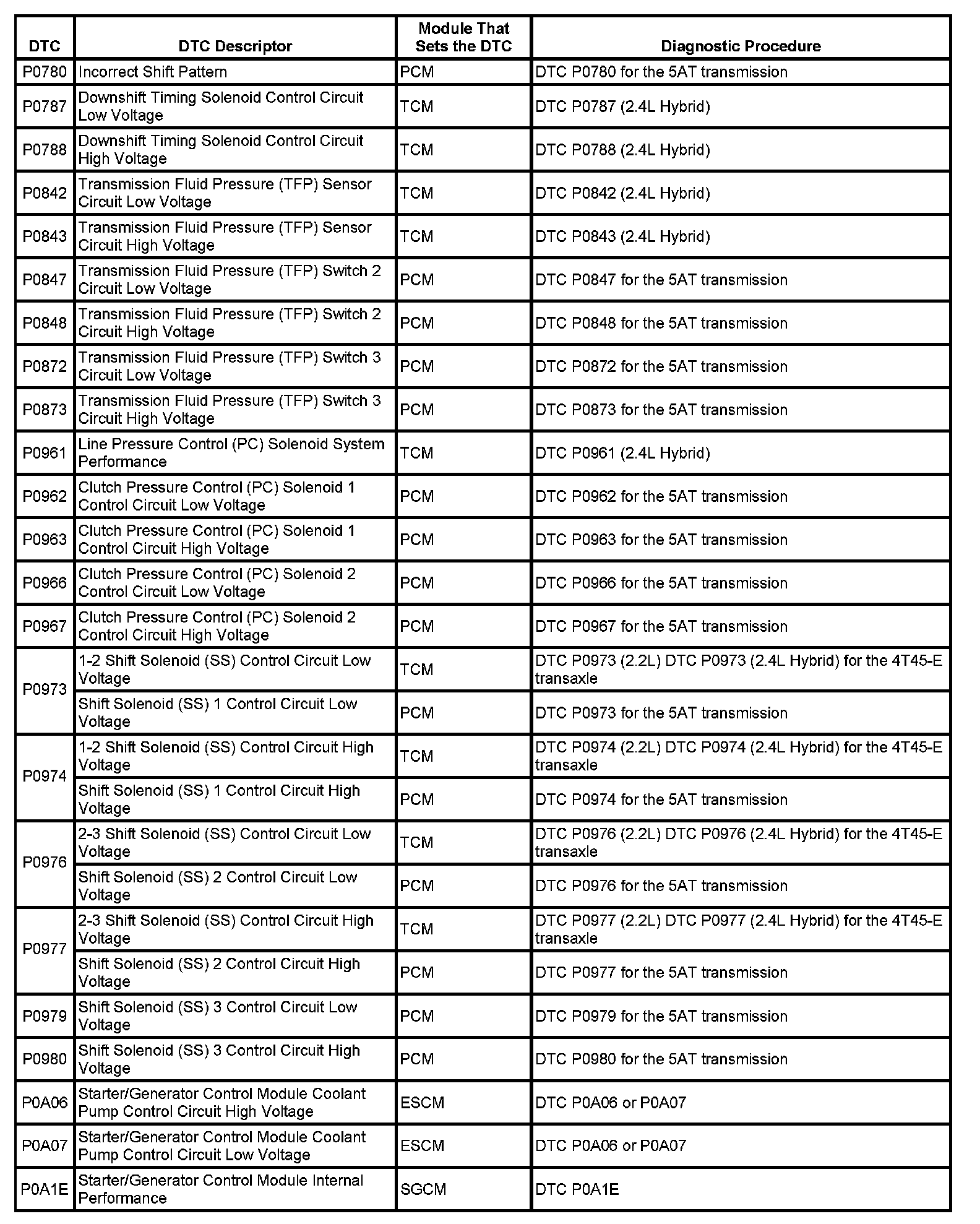

P0780-P0A1E:

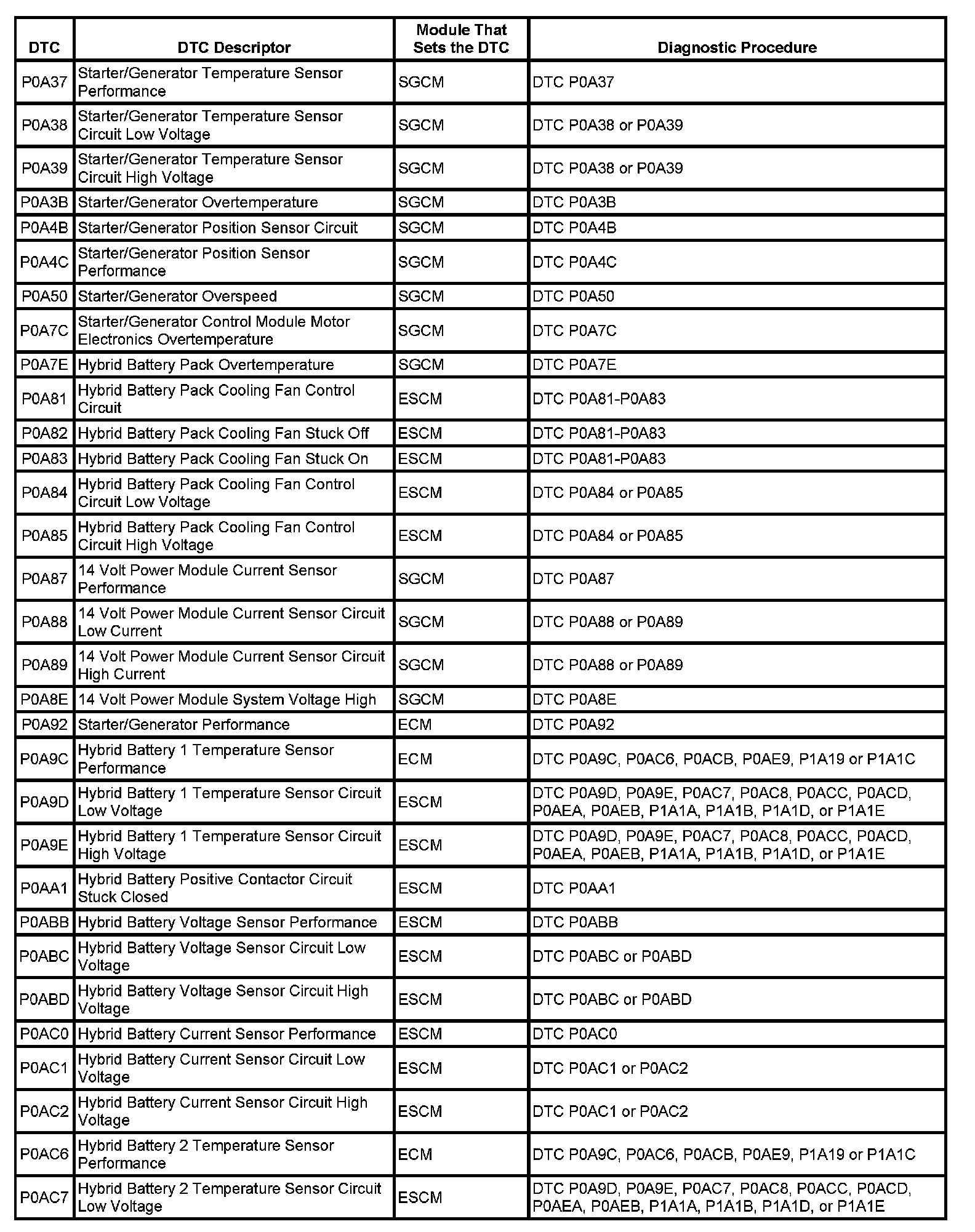

P0A37-P0AC7:

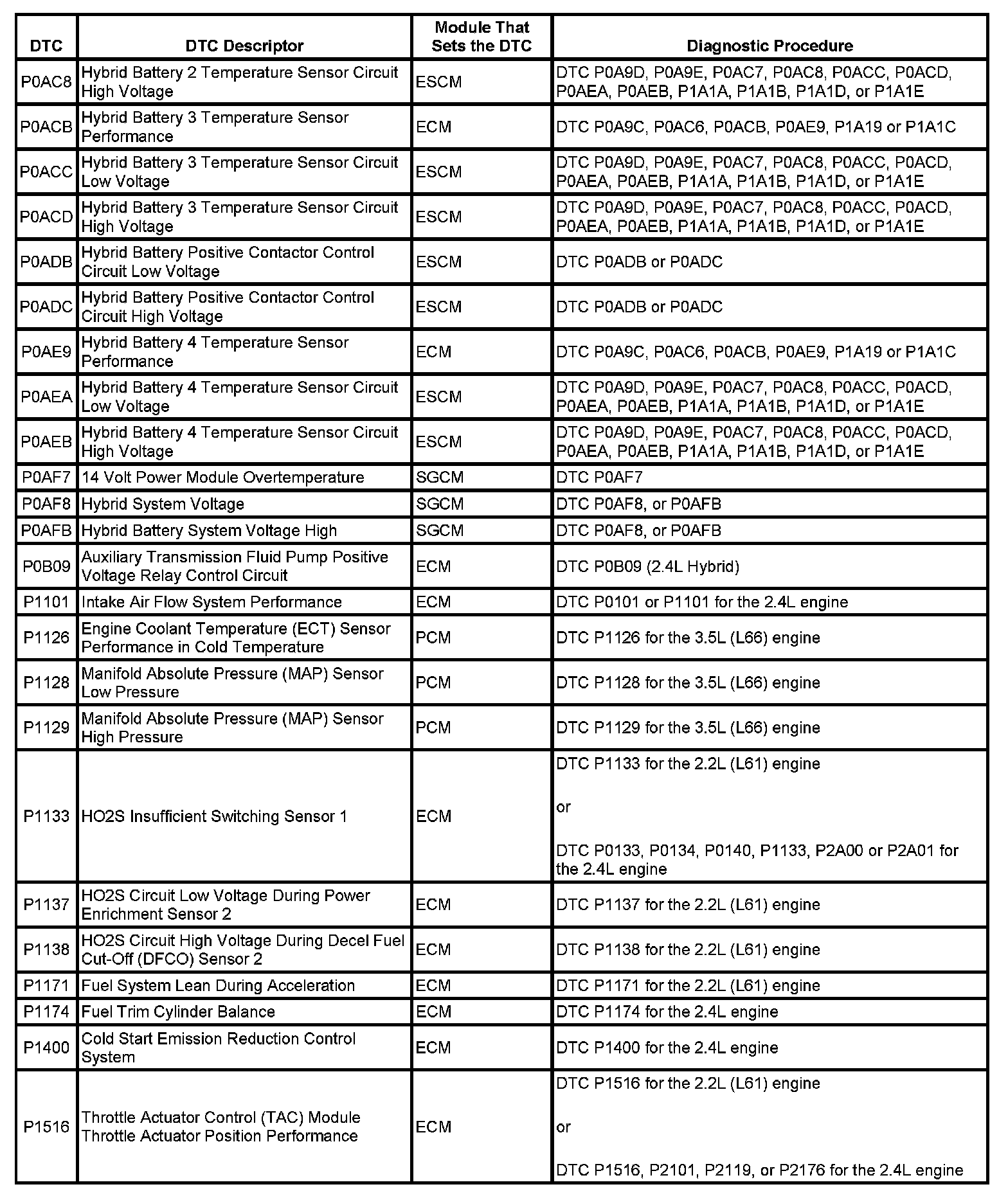

P0AC8-P1516:

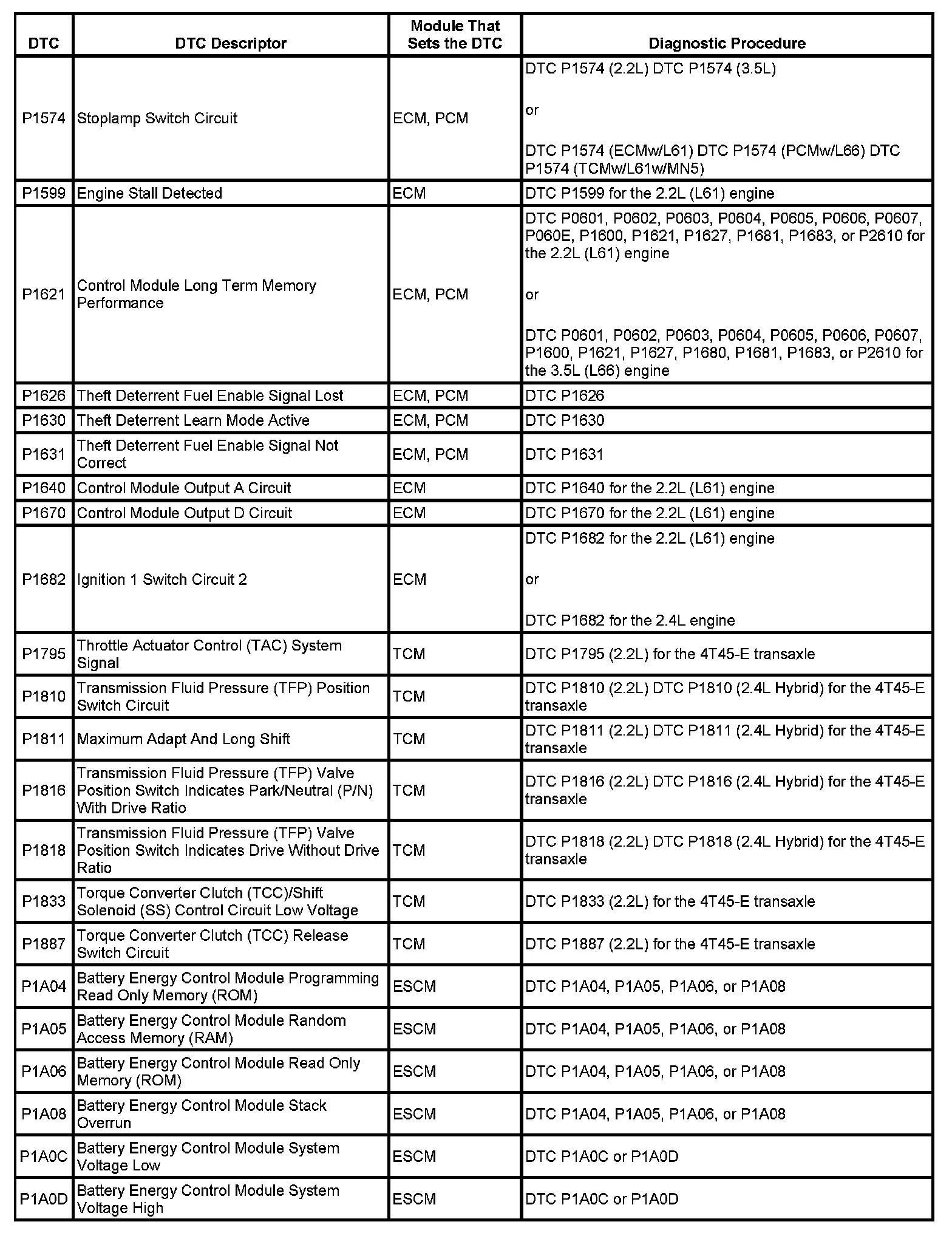

P1574-P1A0D:

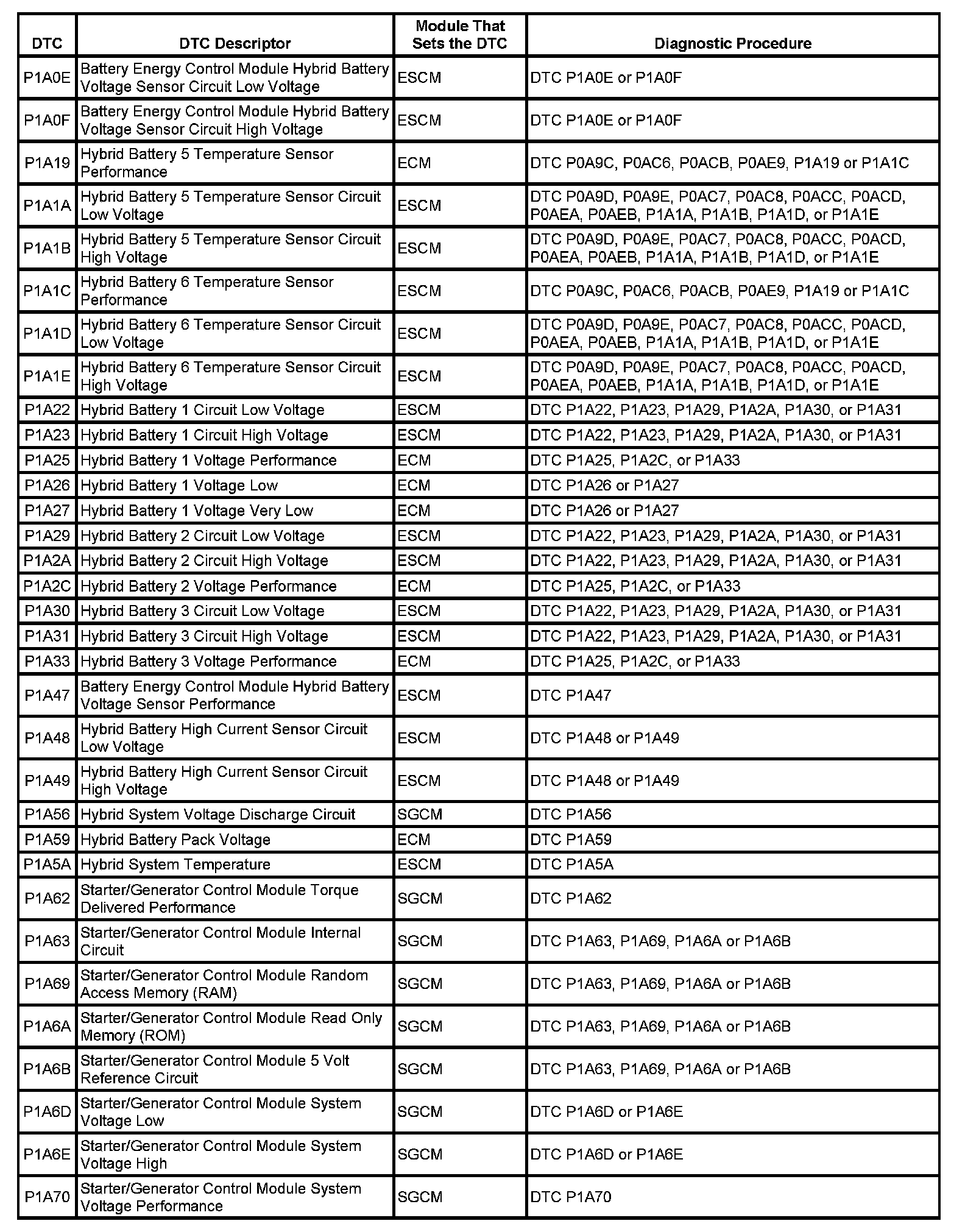

P1A0E-P1A70:

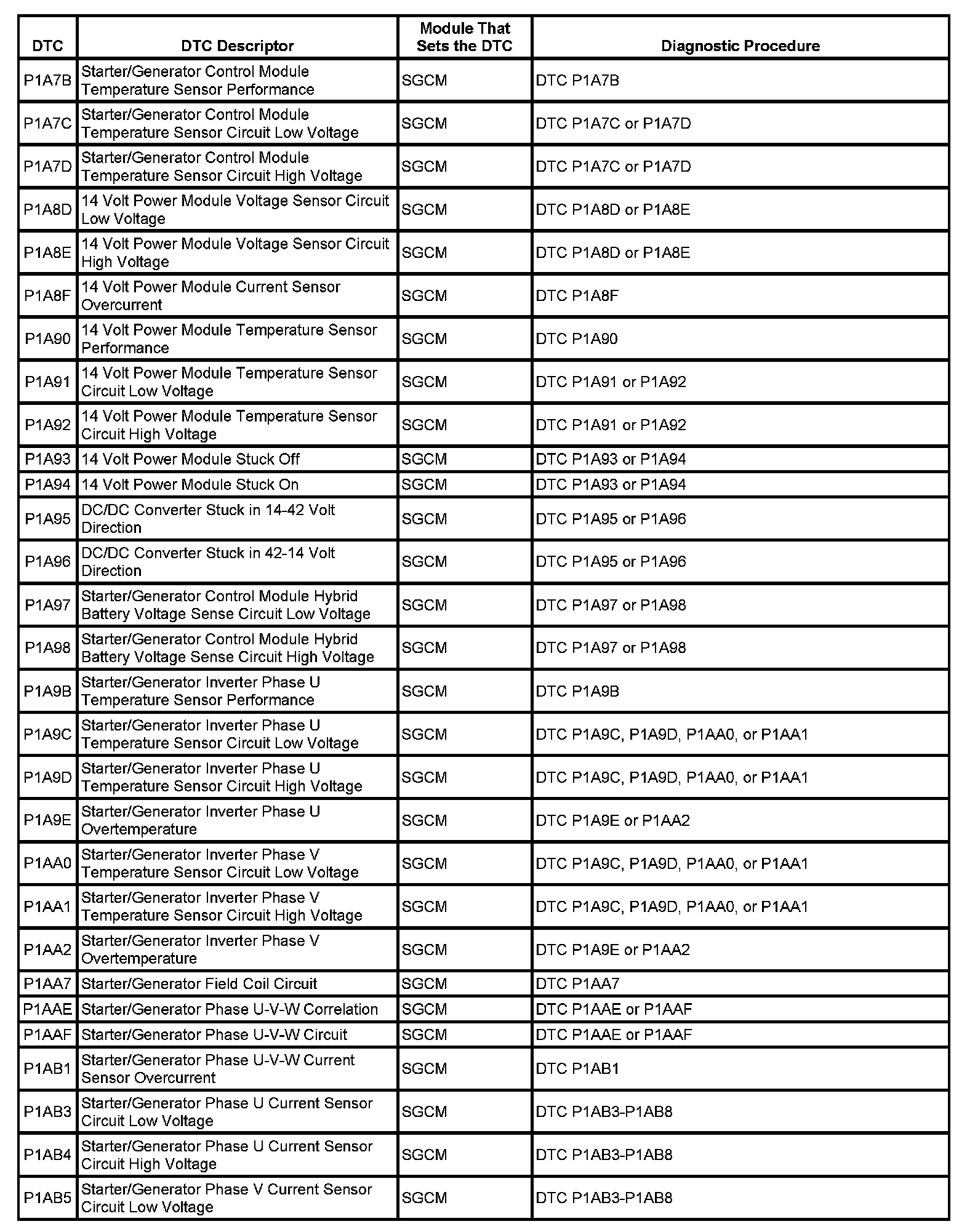

P1A7B-P1AB5:

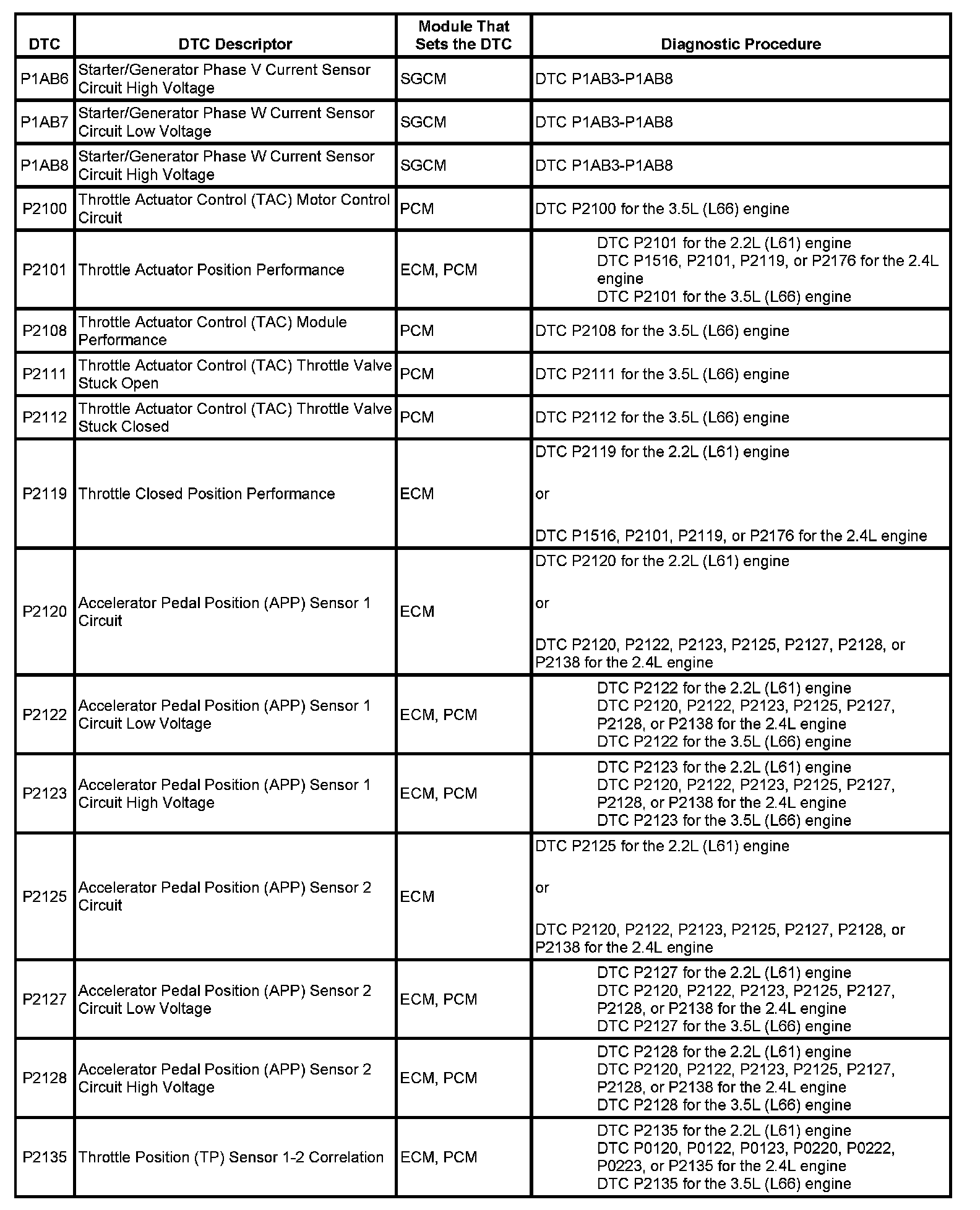

P1AB6-P2135:

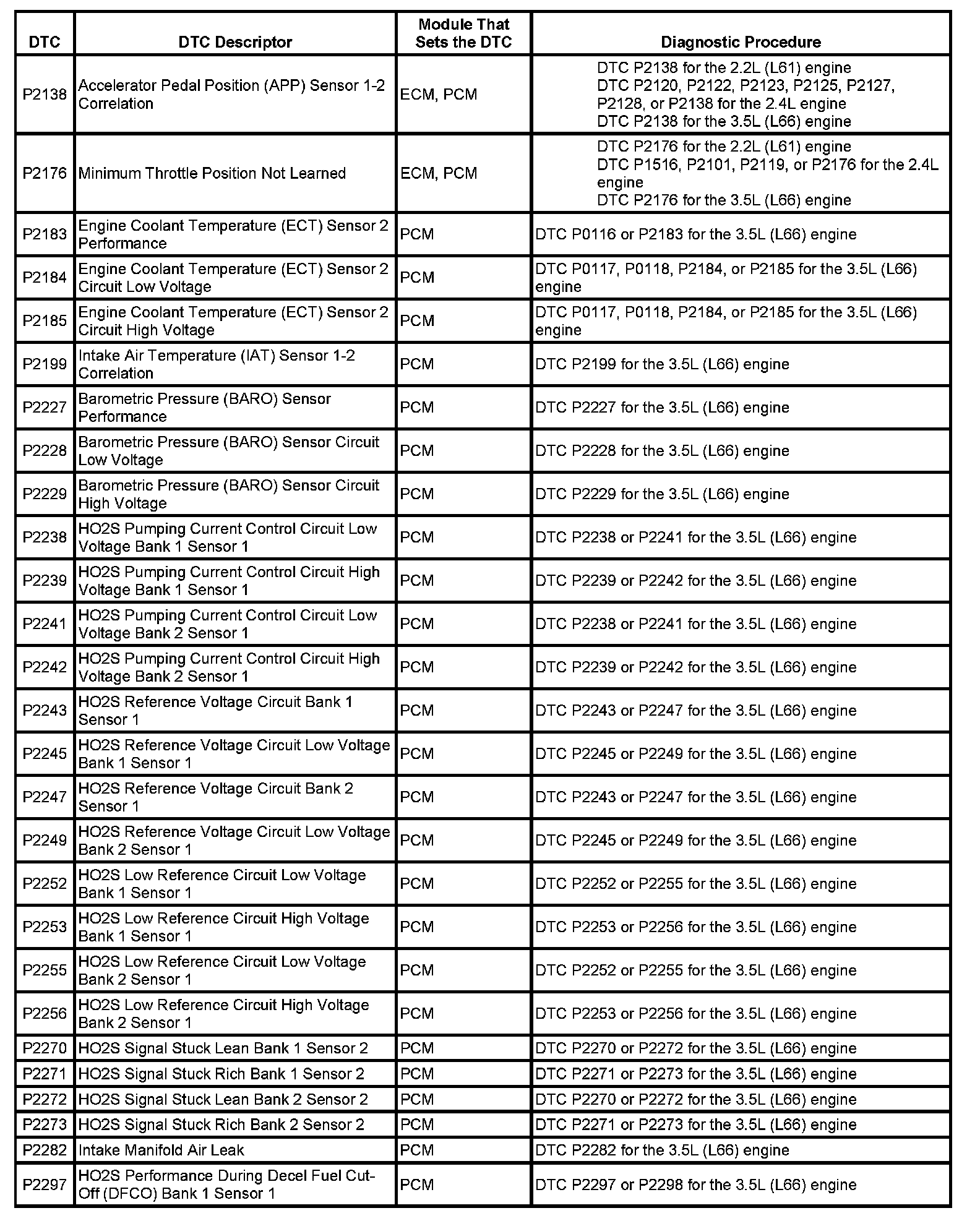

P2138-P2297:

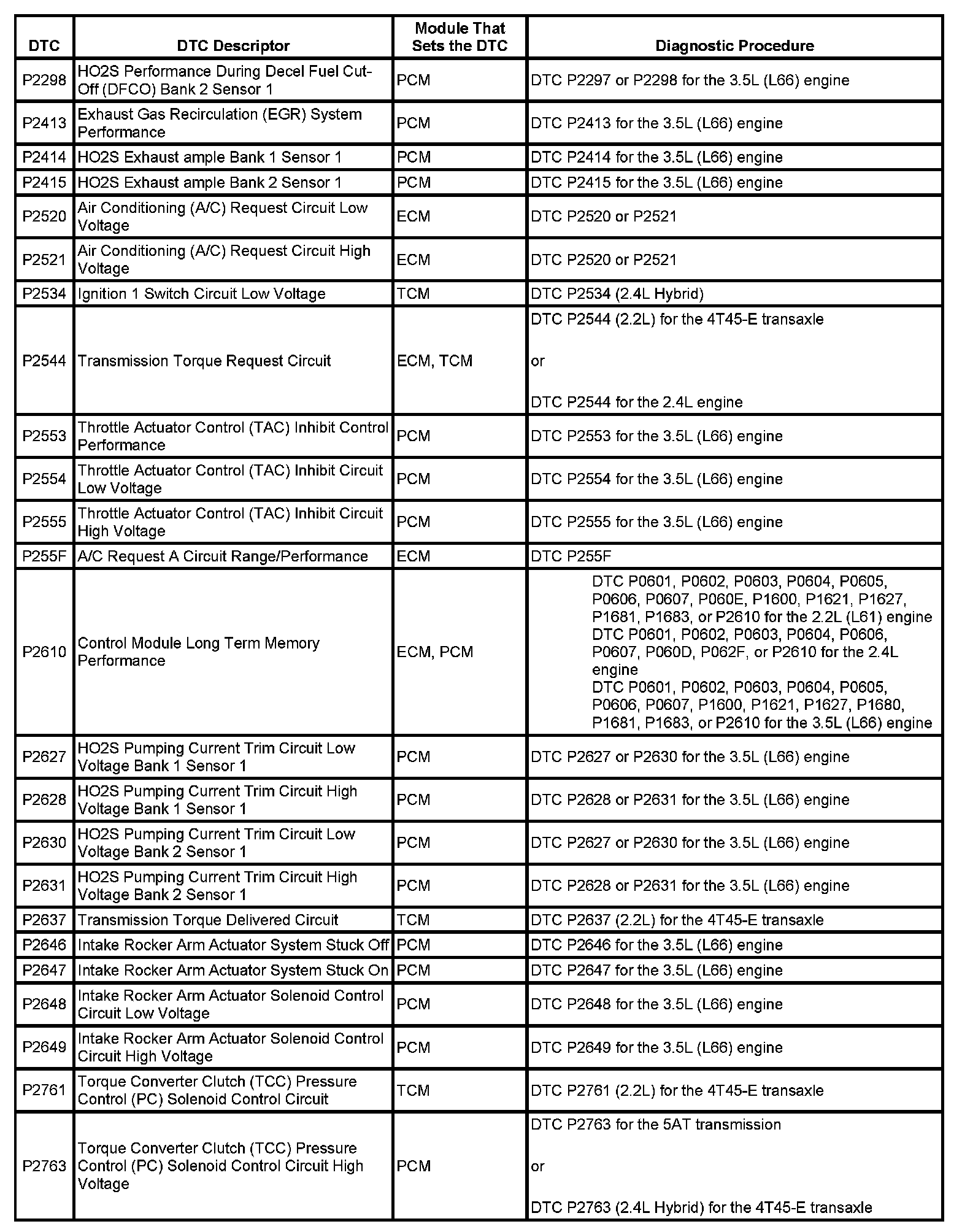

P2298-P2763:

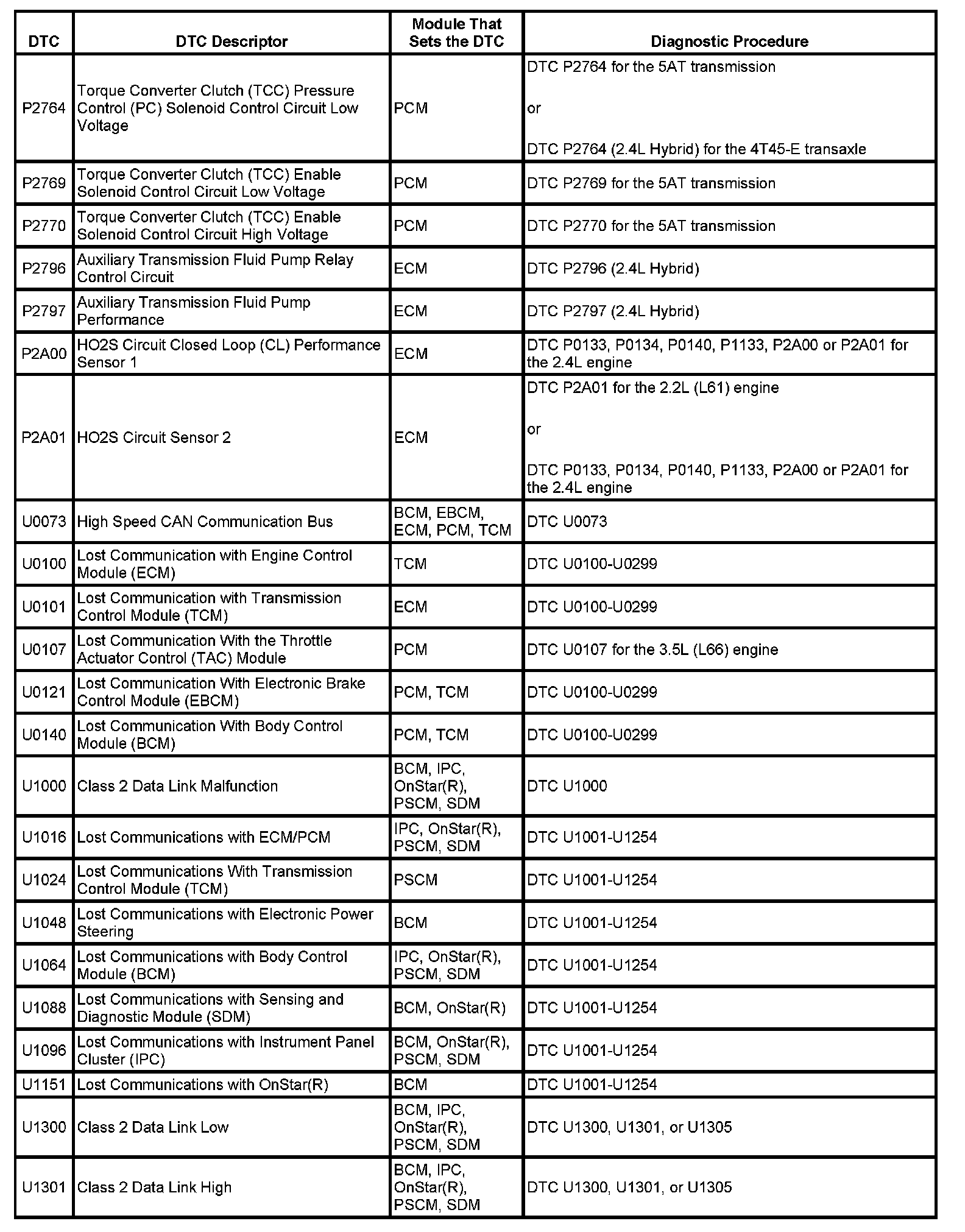

P2764-P2A01 / U0073-U1301:

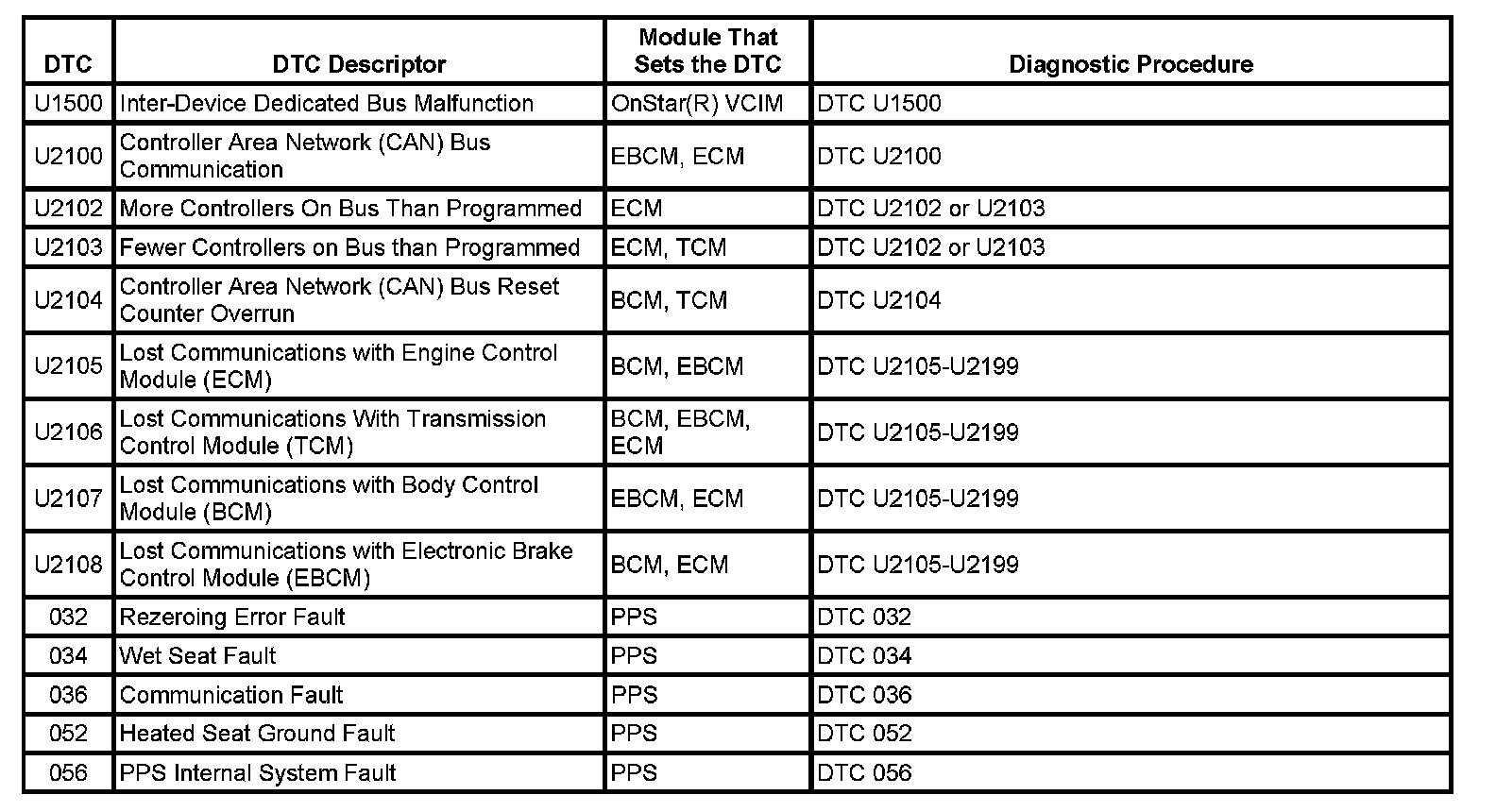

U1500-U2108 / 032-056:

This master DTC list includes all applicable DTCs in alphanumeric order with descriptors.

The GMLAN modules on this vehicle also support DTC Symptom information. Refer to DTC Symptom Description for additional information on DTC Symptoms. DTC Symptom Description
