Home >> Saturn >> 2007 >> Sky L4-2.4L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Yaw Rate Sensor >> Locations

Yaw Rate Sensor: Locations

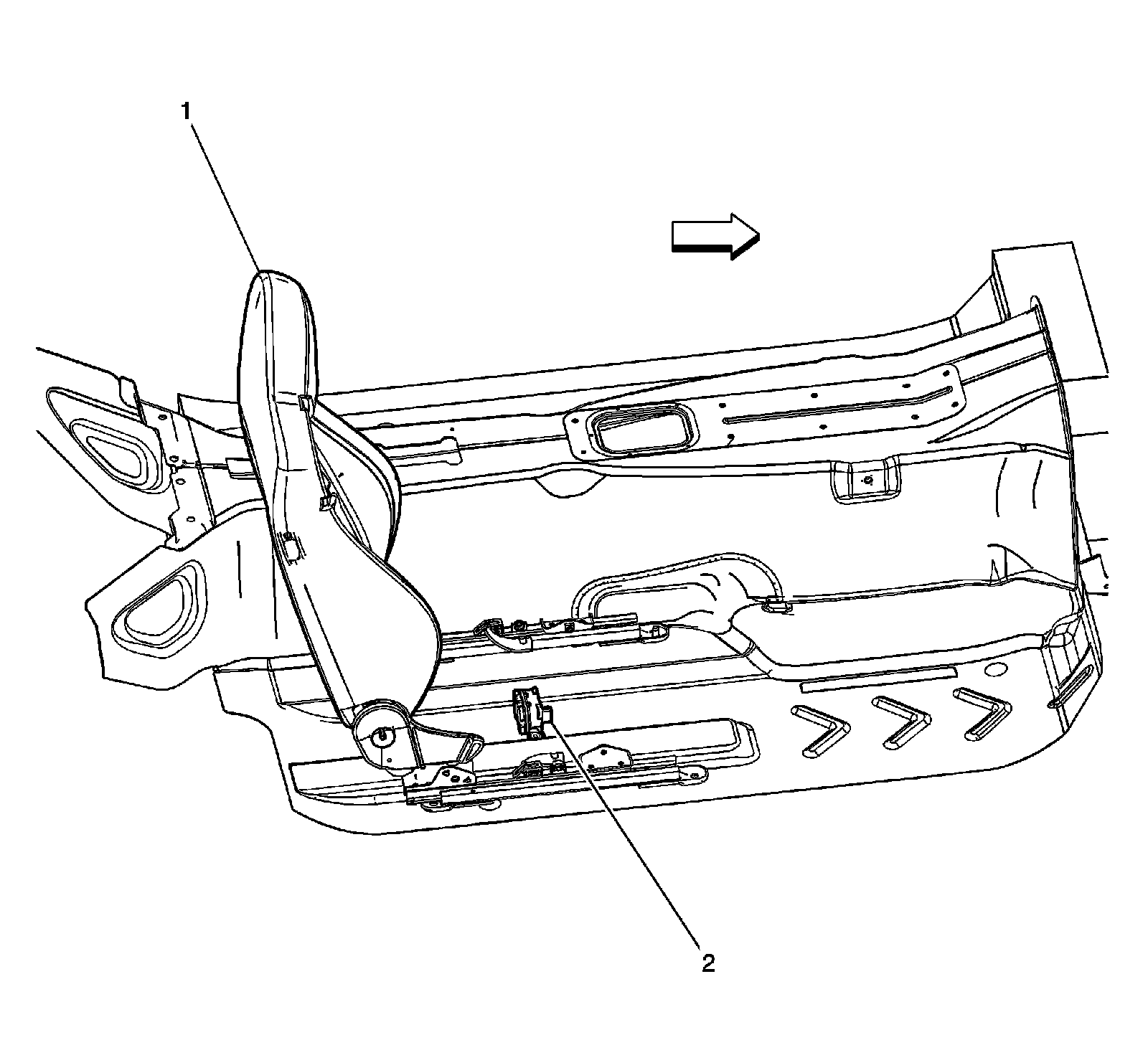

Under the Passenger Seat

Under the Passenger Seat:




1 - Passenger Seat
2 - Yaw and Lateral Acceleration Sensor (JL4)
