Evaporative Emission (EVAP) Hoses/Pipes Replacement - Chassis/Canister



Evaporative Emission Hoses/Pipes Replacement - Chassis/Canister

Removal Procedure




1. Remove the fuel tank.

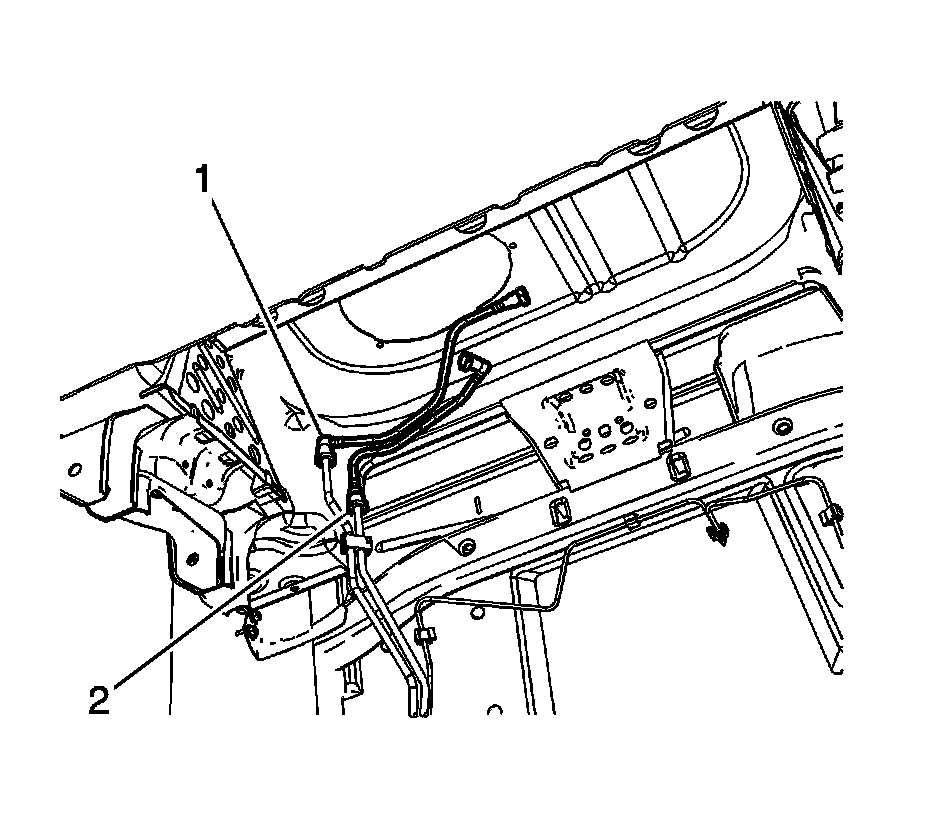

2. Disconnect the evaporative emission (EVAP) canister purge line quick connect fitting (1) at the chassis line.
3. Remove the EVAP canister purge line.

Installation Procedure




1. Install the EVAP canister purge line.
2. Connect the EVAP canister purge line quick connect fitting (1) to the chassis.
3. Install the fuel tank.
