Driver Door

Harness Routing Views

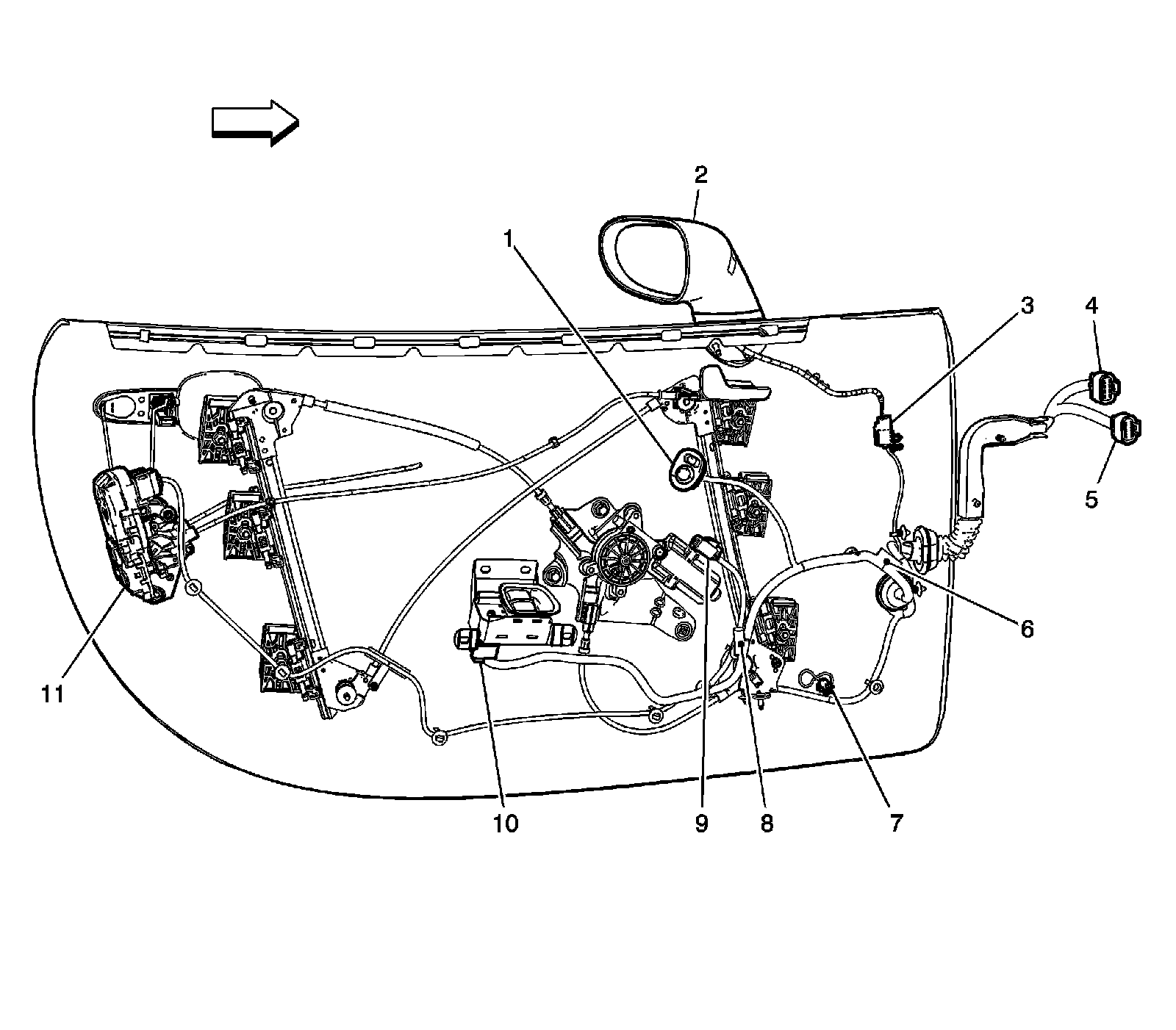

Driver Door




1 - Outside Rearview Mirror Switch
2 - Outside Rearview Mirror - Driver
3 - Outside Rearview Mirror Connector - Driver
4 - C166
5 - C165
6 - S501
7 - Speaker Connector - LF Door
8 - S500
9 - Window Motor - Driver
10 - Window Switch - Driver
11 - Door Lock Actuator - Driver
