Power Distribution Diagram 4



Power Distribution Schematics

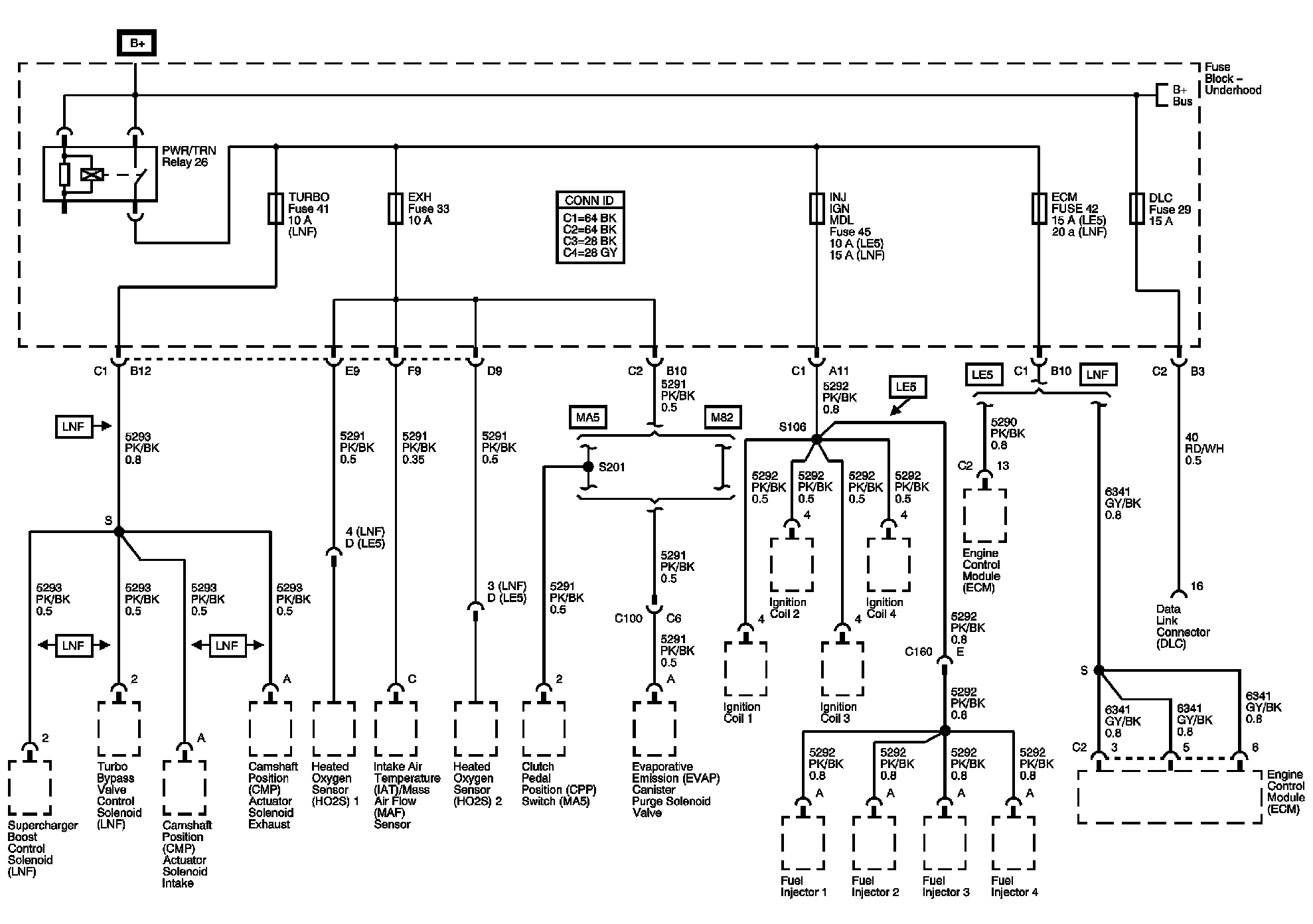

Fuse Block - Underhood DLC, ECM, EXH, INJIGN MDL, TURBO Fuses, and PWR/TRN Relay

Power Distribution Diagram 4:






Next Diagram: Power Distribution Diagram 5

Previous Diagram: Power Distribution Diagram 3

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
