G105

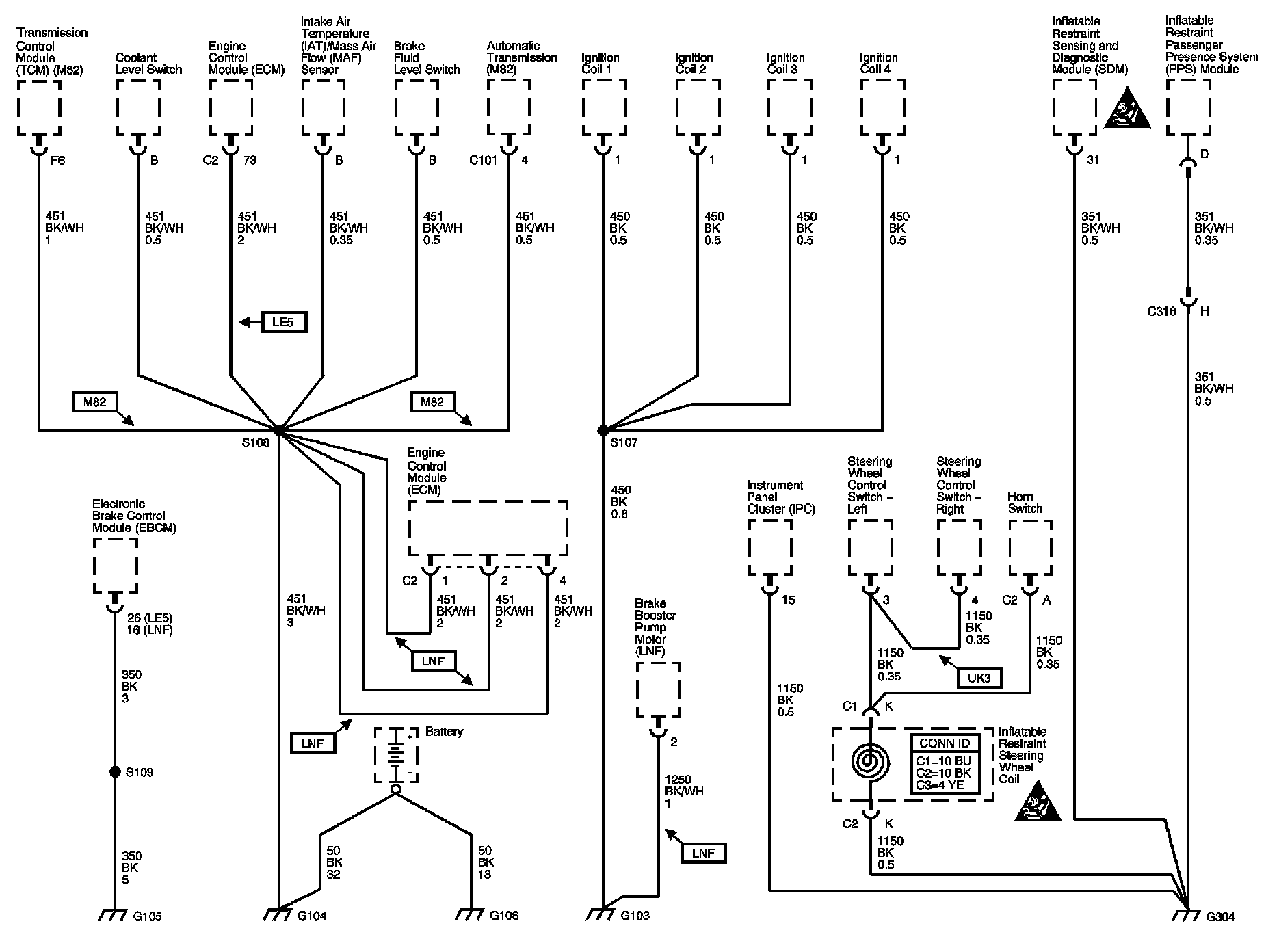

Ground Distribution Schematics

G103, G104, G105, G106 and G304






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
