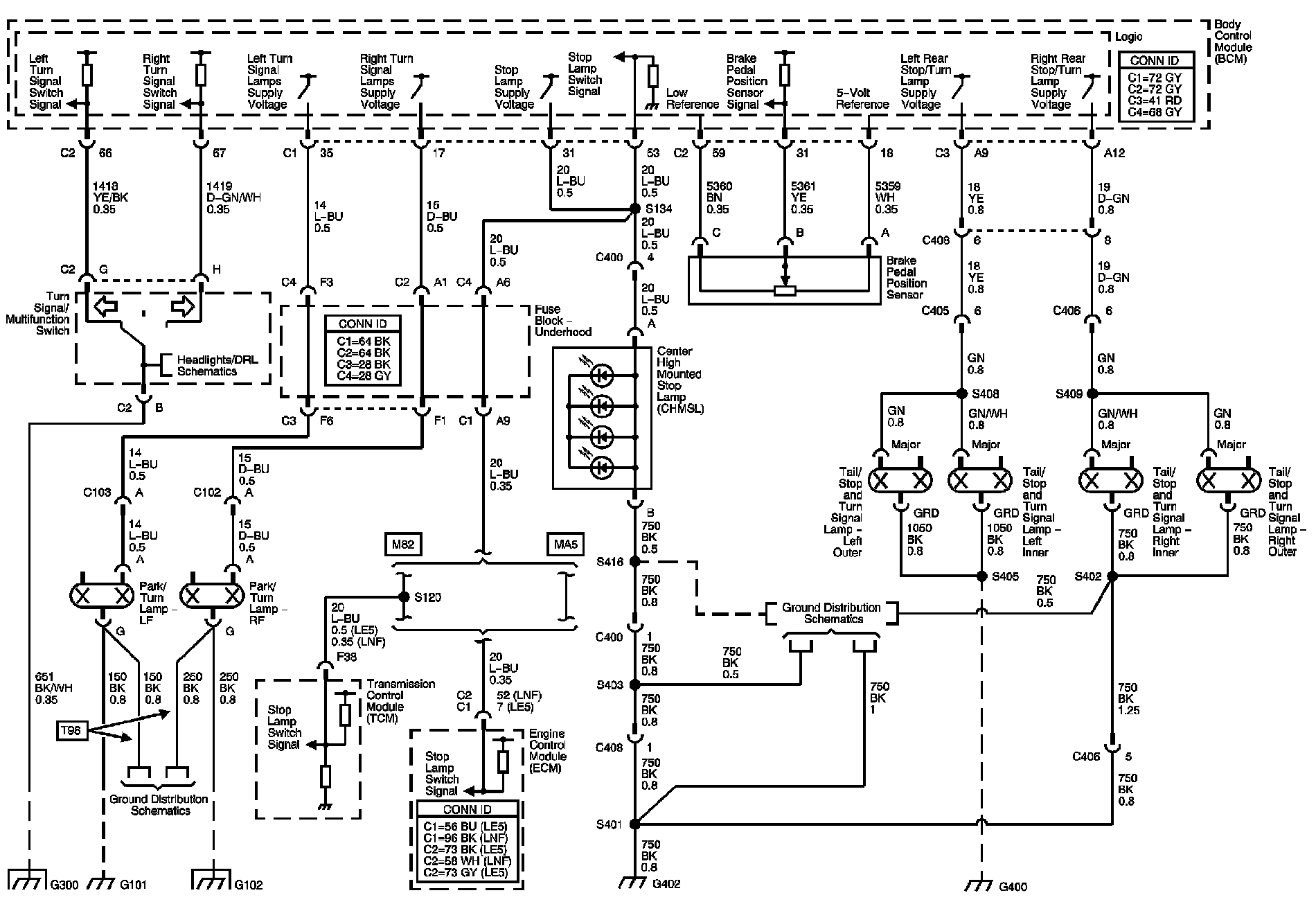

Exterior Lights Diagram 3



Exterior Lights Schematics

Stop and Turn Signal Lamps

Exterior Lights Diagram 3:






Previous Diagram: Exterior Lights Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
