Exterior Lights Diagram 2



Exterior Lights Schematics

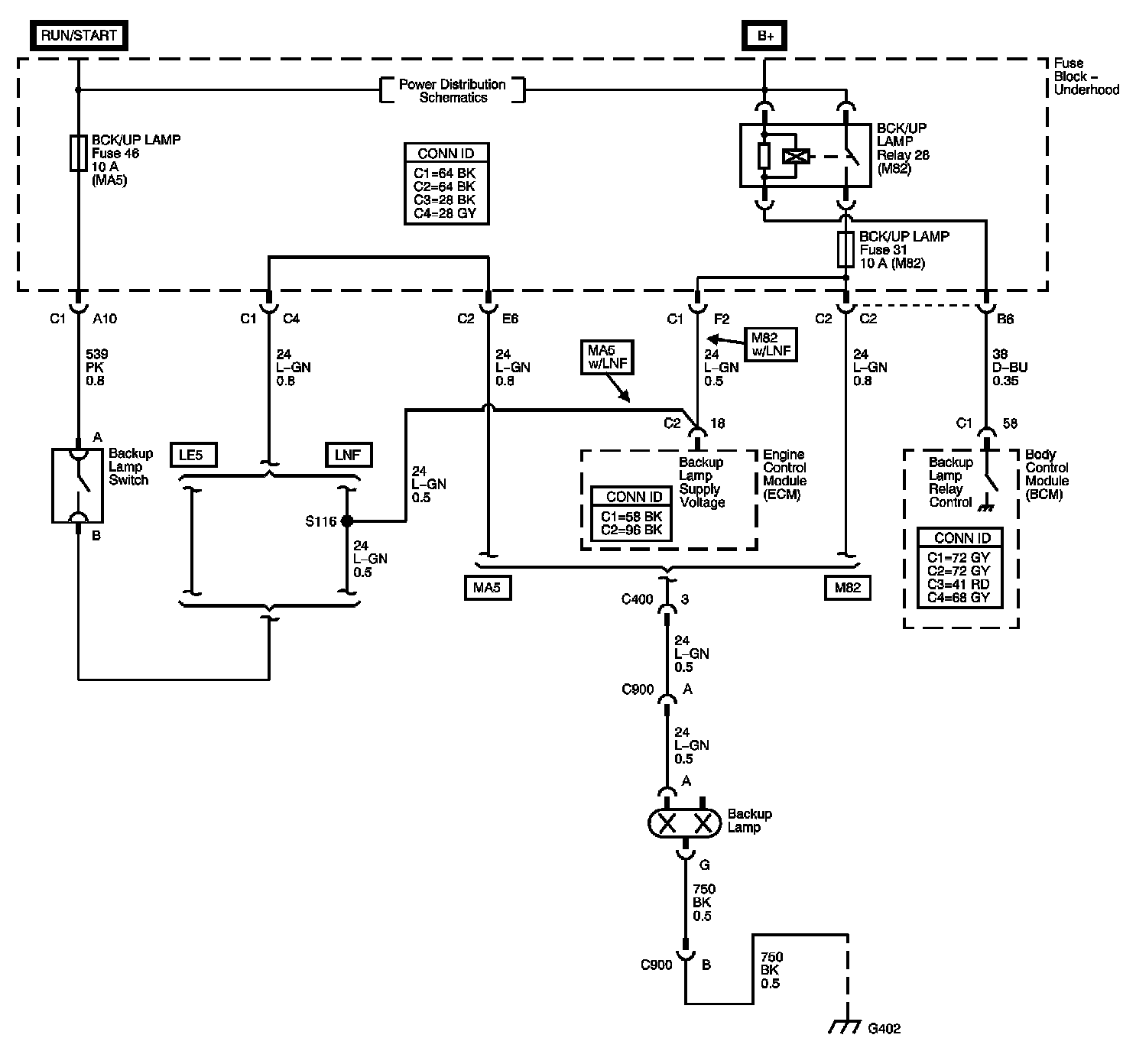

Backup Lamps

Exterior Lights Diagram 2:






Next Diagram: Exterior Lights Diagram 3

Previous Diagram: Exterior Lights Diagram 1

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
