Headlamp Bulb Replacement
Headlamp Bulb Replacement

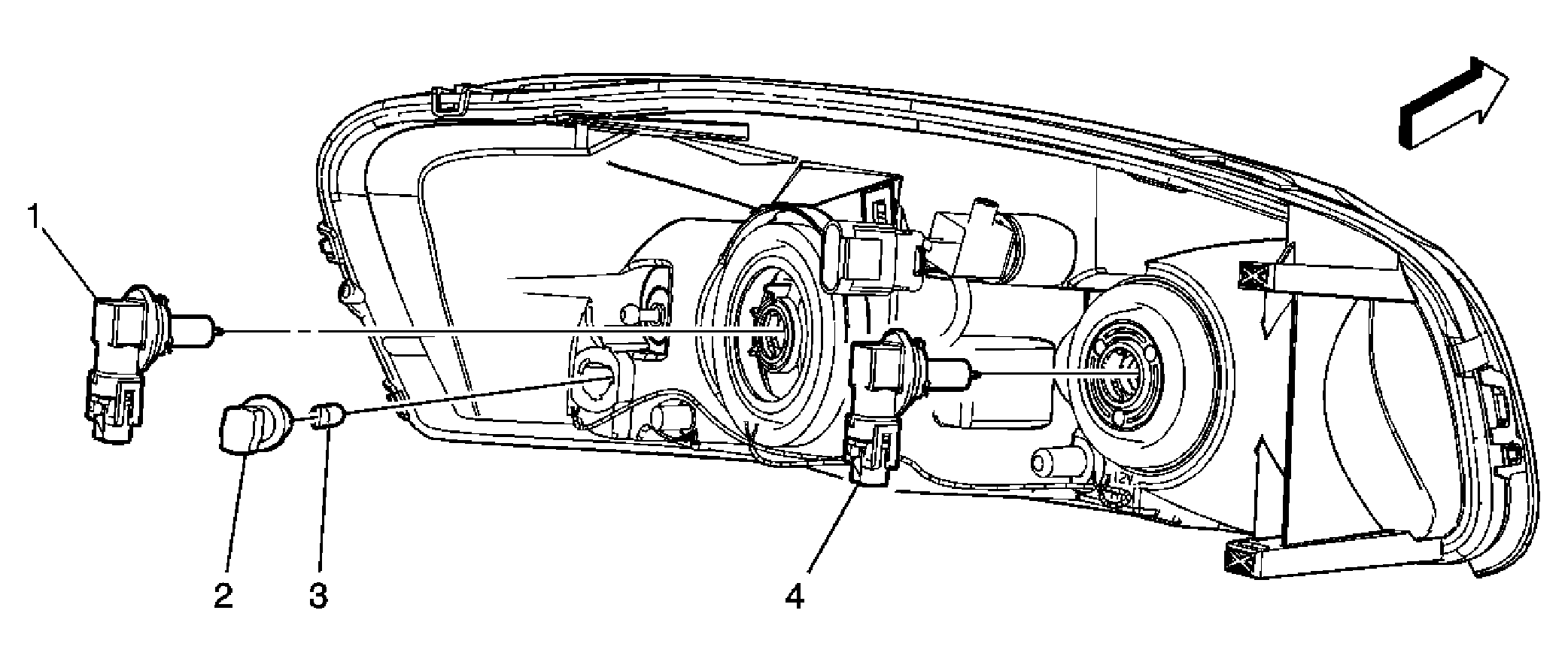

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove either the LF or RF headlamp assembly. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement . |
|
| 1 |
CAUTION:
Refer to Halogen Bulb Caution
. Remove the Lo beam headlamp bulb, twist the bulb socket counterclockwise. |
| 2 | Marker Lamp Socket |
| 3 | Marker Lamp Socket Bulb |
| 4 |
CAUTION:
Refer to Halogen Bulb Caution
. Remove the Hi beam headlamp bulb, twist the bulb socket counterclockwise. |
