Theft Deterrent System Schematics

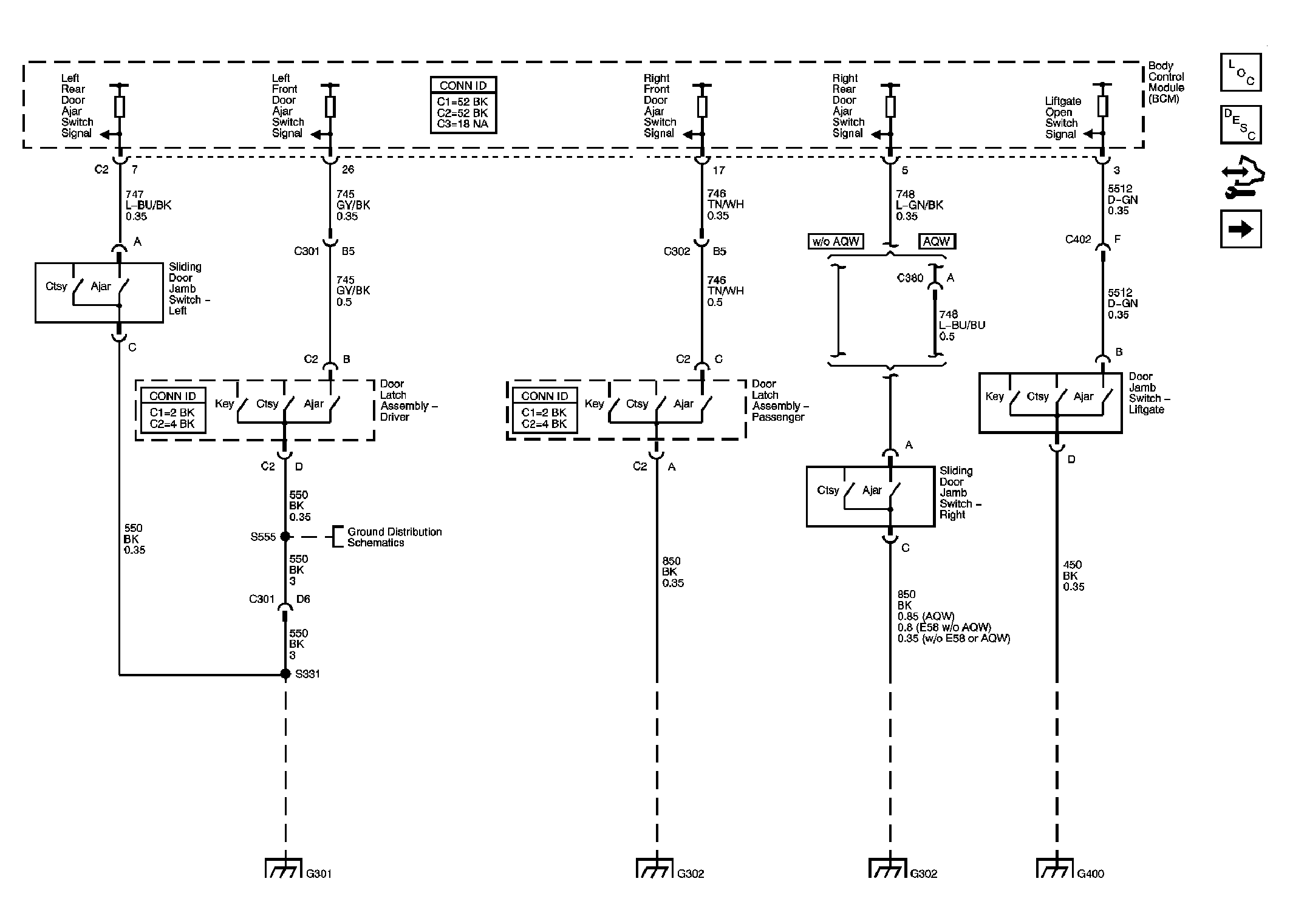

Fig 1: Ajar Switches

GM1740121

Courtesy of GENERAL MOTORS CORP.

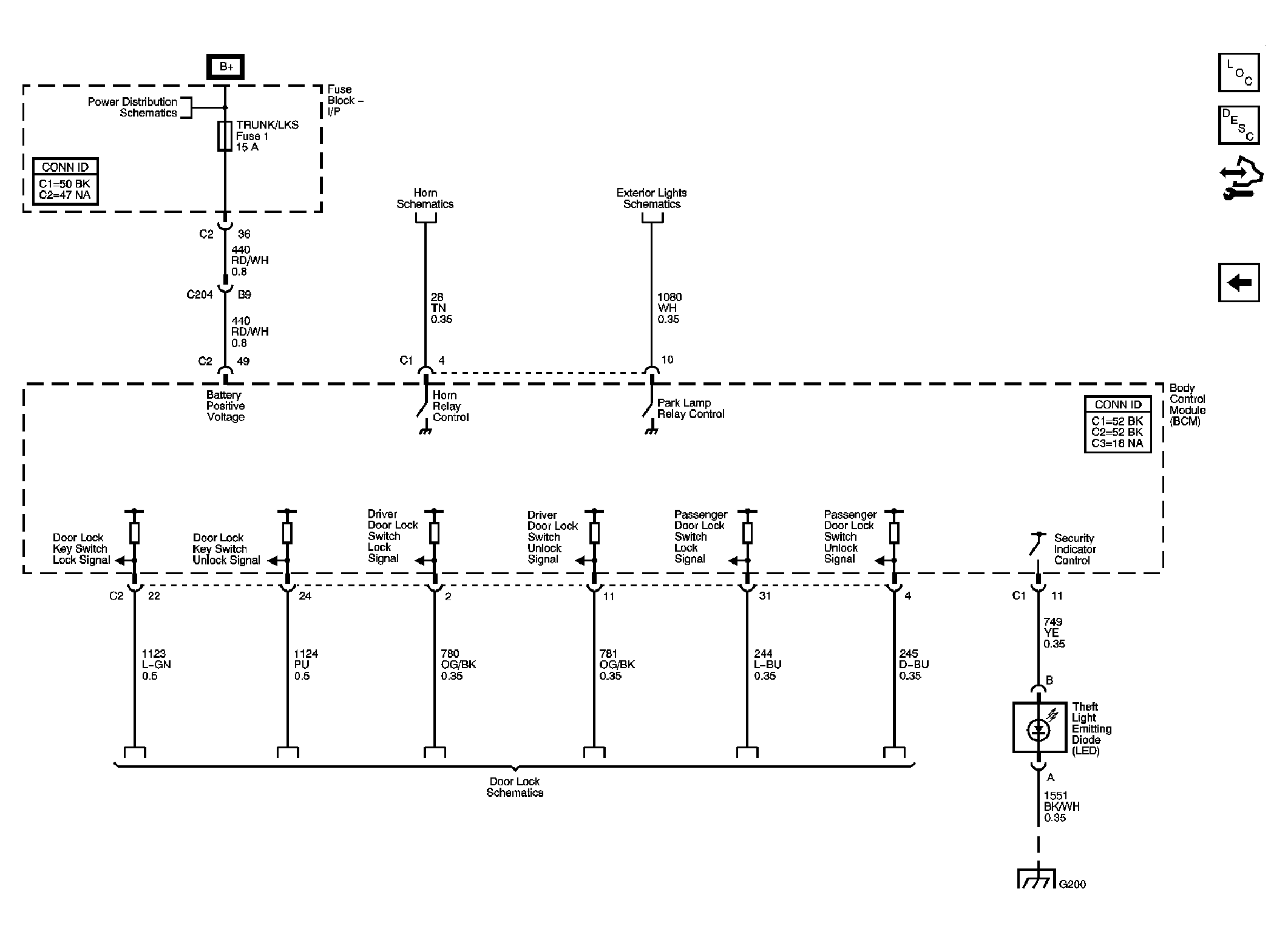

Fig 2: Arm, Disarm, and Warning

GM1740122

Courtesy of GENERAL MOTORS CORP.
