Interior Lights Dimming Diagram 1

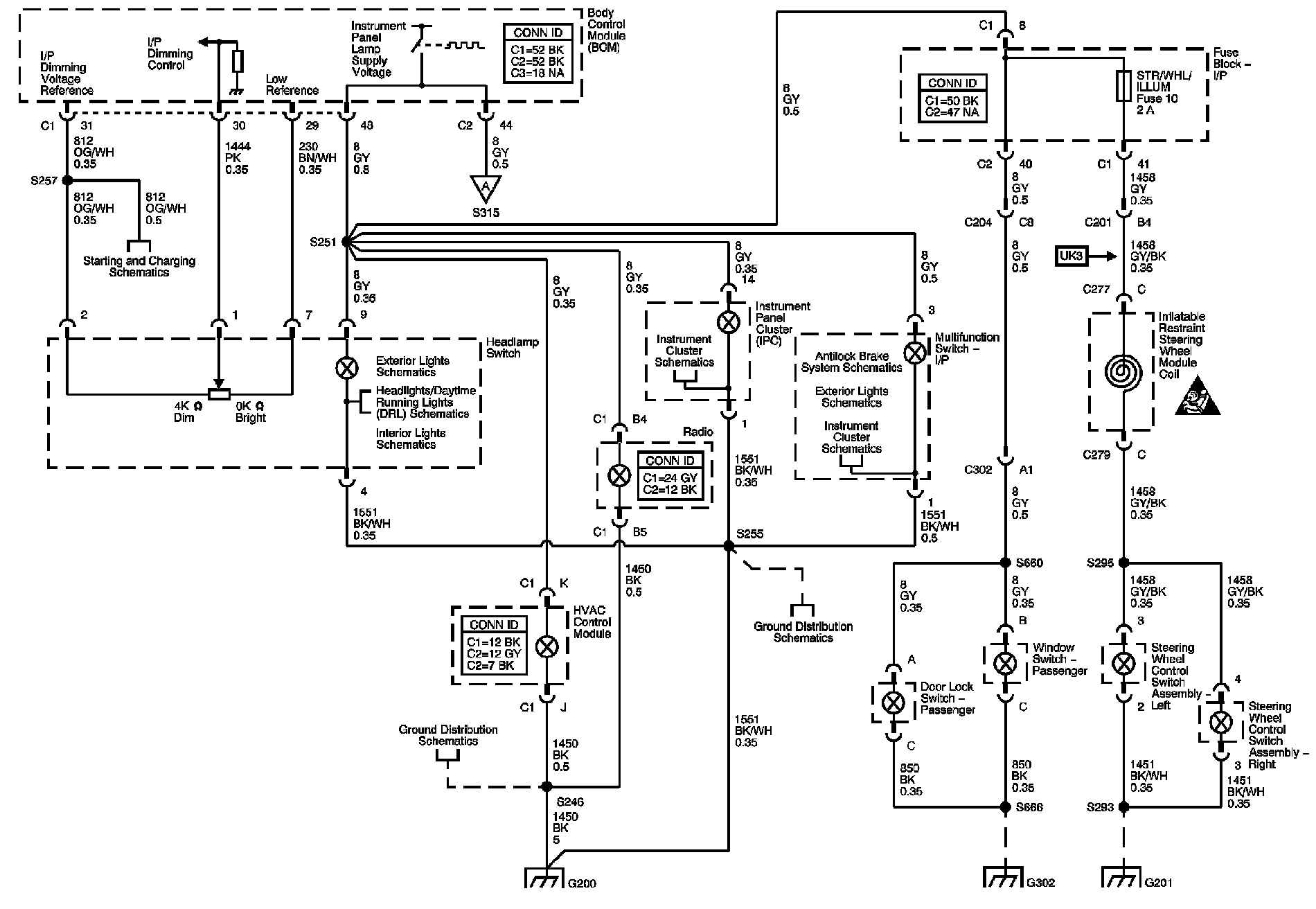

Interior Lights Dimming Schematics

Control, I/P, Passenger Door, and Steering Wheel Lamps






Next Diagram: Interior Lights Dimming Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
