Exterior Lights Diagram 1

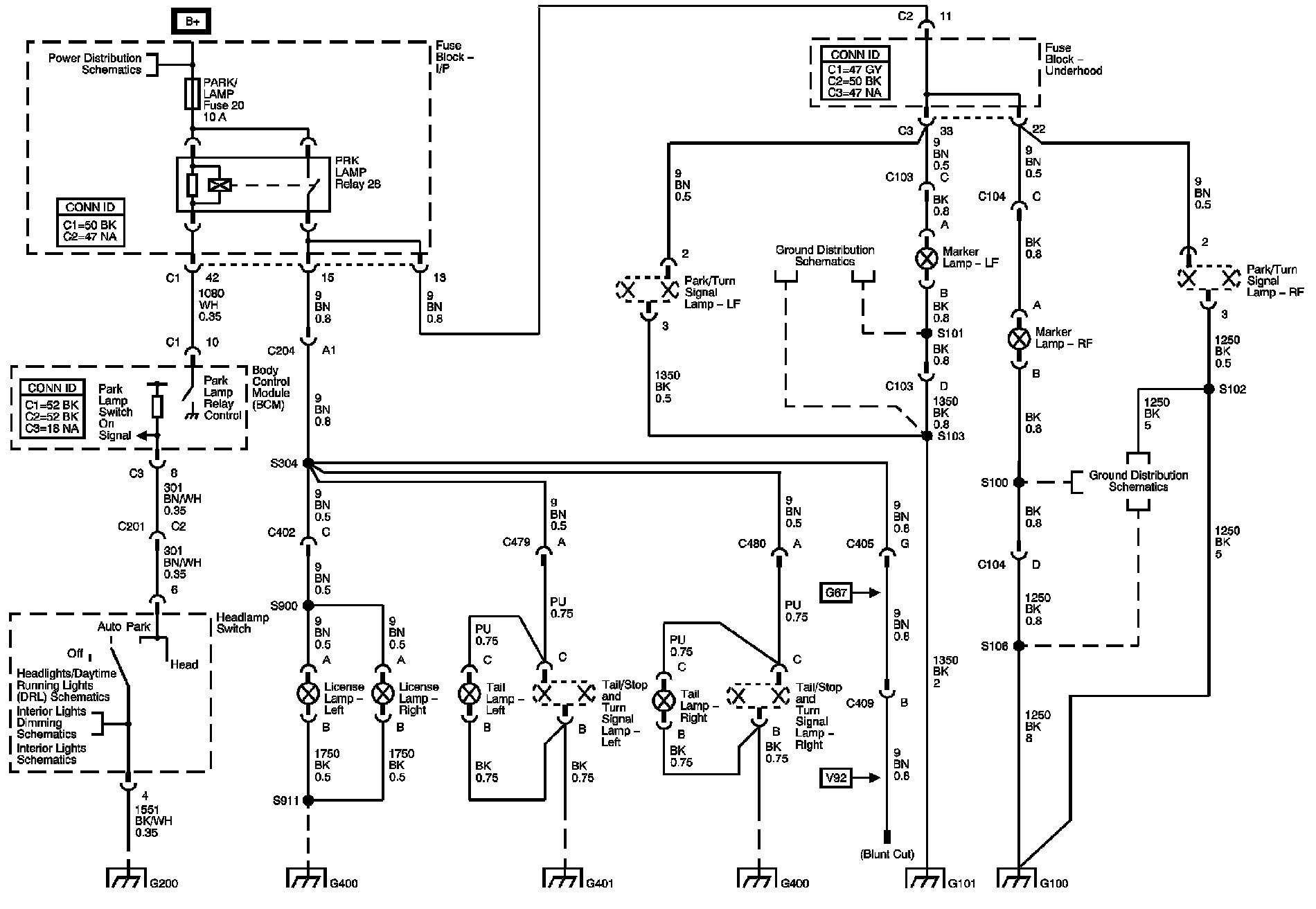

Exterior Lights Schematics

Park, Marker, and License Lamps






Next Diagram: Exterior Lights Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
