Connector Views

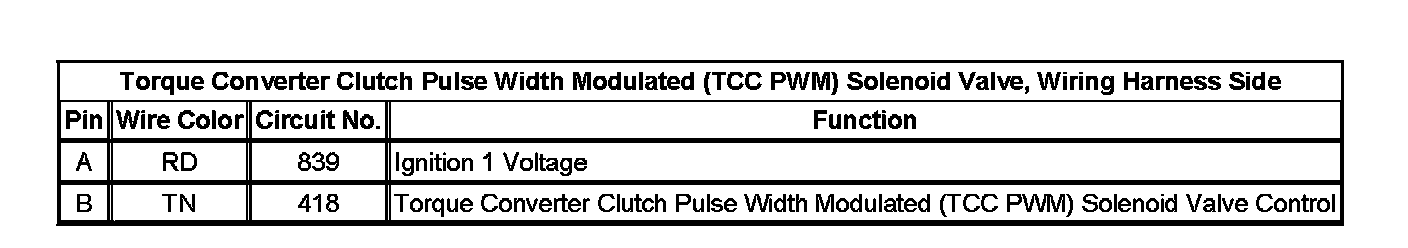

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve, Wiring Harness Side

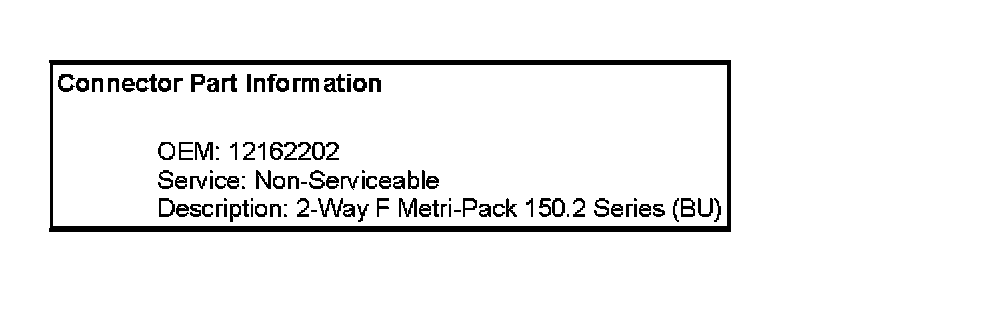

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve, Wiring Harness Side:
