Wheel Speed Sensor: Locations

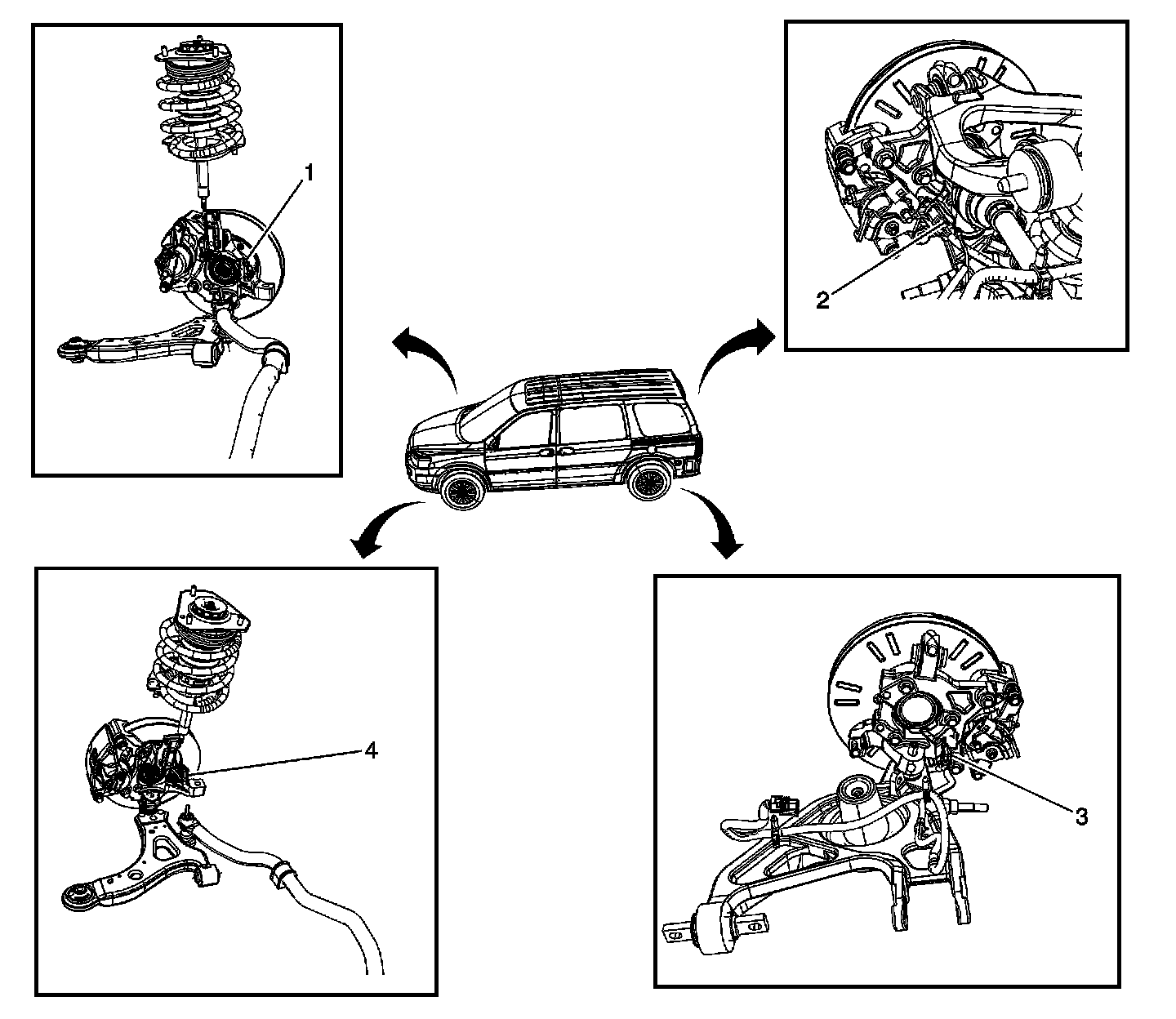

Wheel Speed Sensors (WSS)

Wheel Speed Sensors (WSS):




1 - Wheel Speed Sensor (WSS) - RF
2 - Wheel Speed Sensor (WSS) - RR
3 - Wheel Speed Sensor (WSS) - LR
4 - Wheel Speed Sensor (WSS) - LF
