Rear Parking Assist Malfunction



Rear Parking Assist Malfunction

Diagnostic Aids

Before performing this procedure, ensure that the following conditions are met:

* The vehicle park brake is SET.
* The rear parking assist (RPA) disable switch is ON.

Test

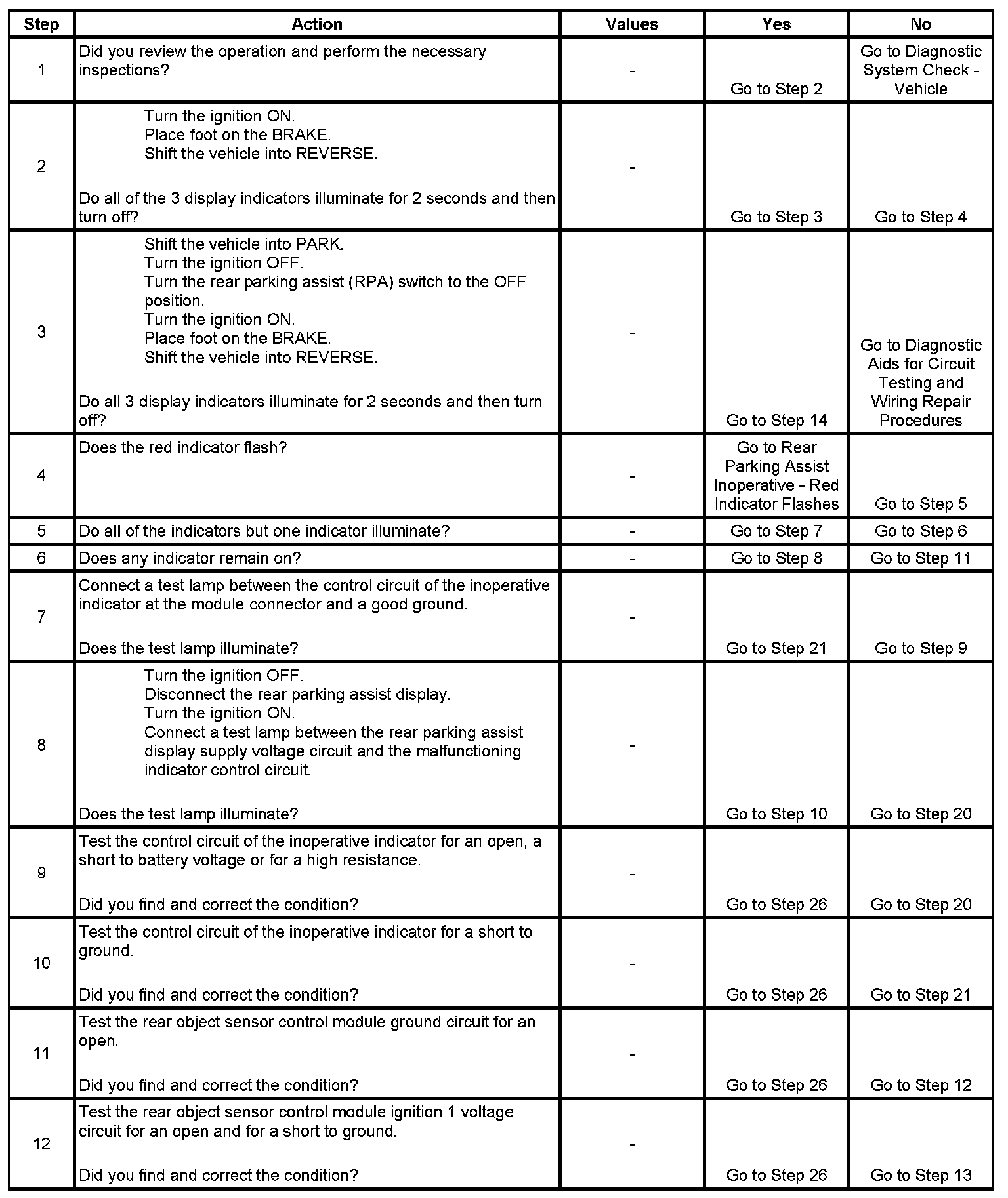

Step 1 - Step 12:

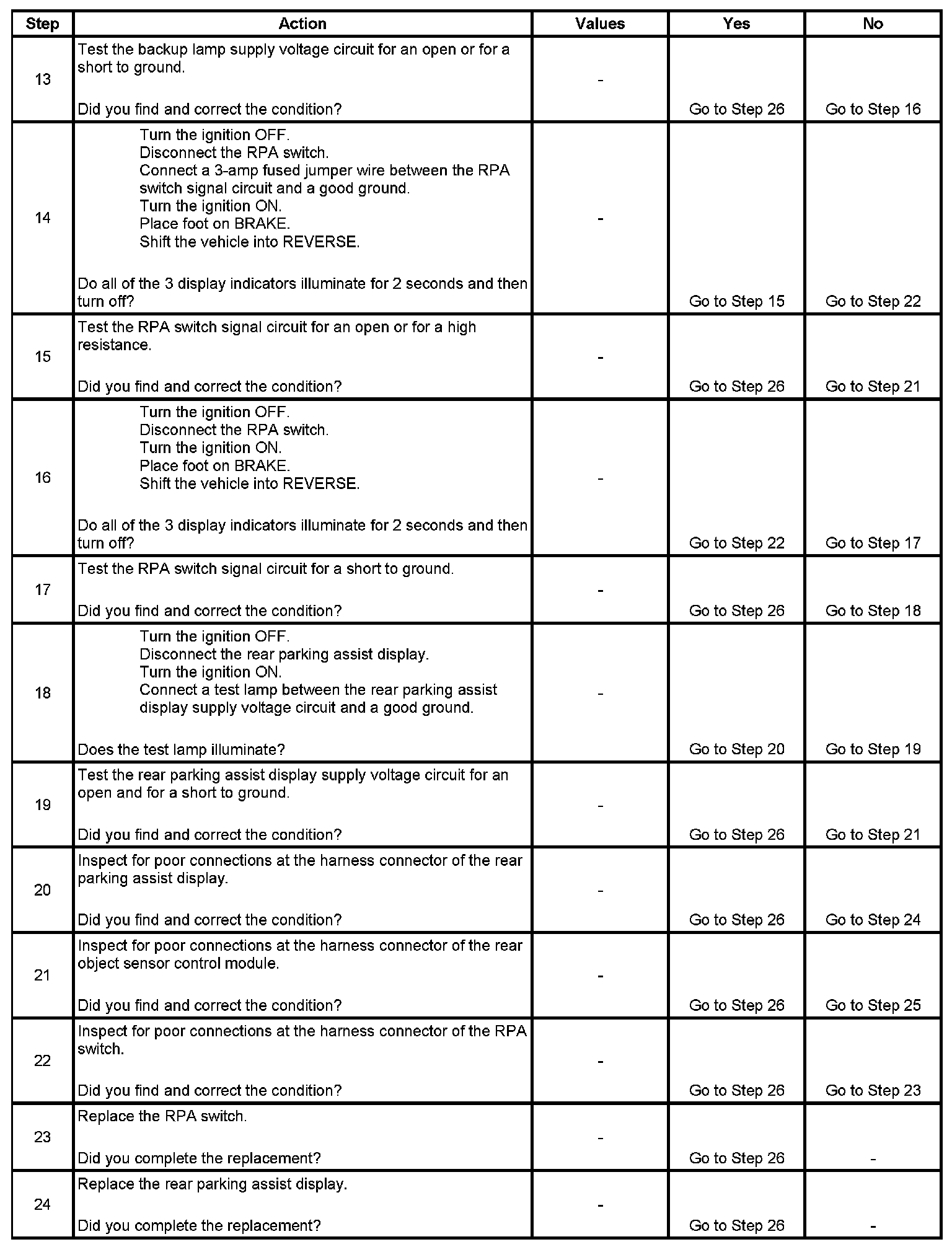

Step 13 - Step 24:




Step 25 - Step 26:
