Rear Parking Assist Inoperative - Red Indicator Flashes



Rear Parking Assist Inoperative - Red Indicator Flashes

Diagnostic Aids

Before performing this procedure, ensure that the following conditions are met:

* The vehicle park brake is SET.
* The rear parking assist (RPA) disable switch is ON.

Test

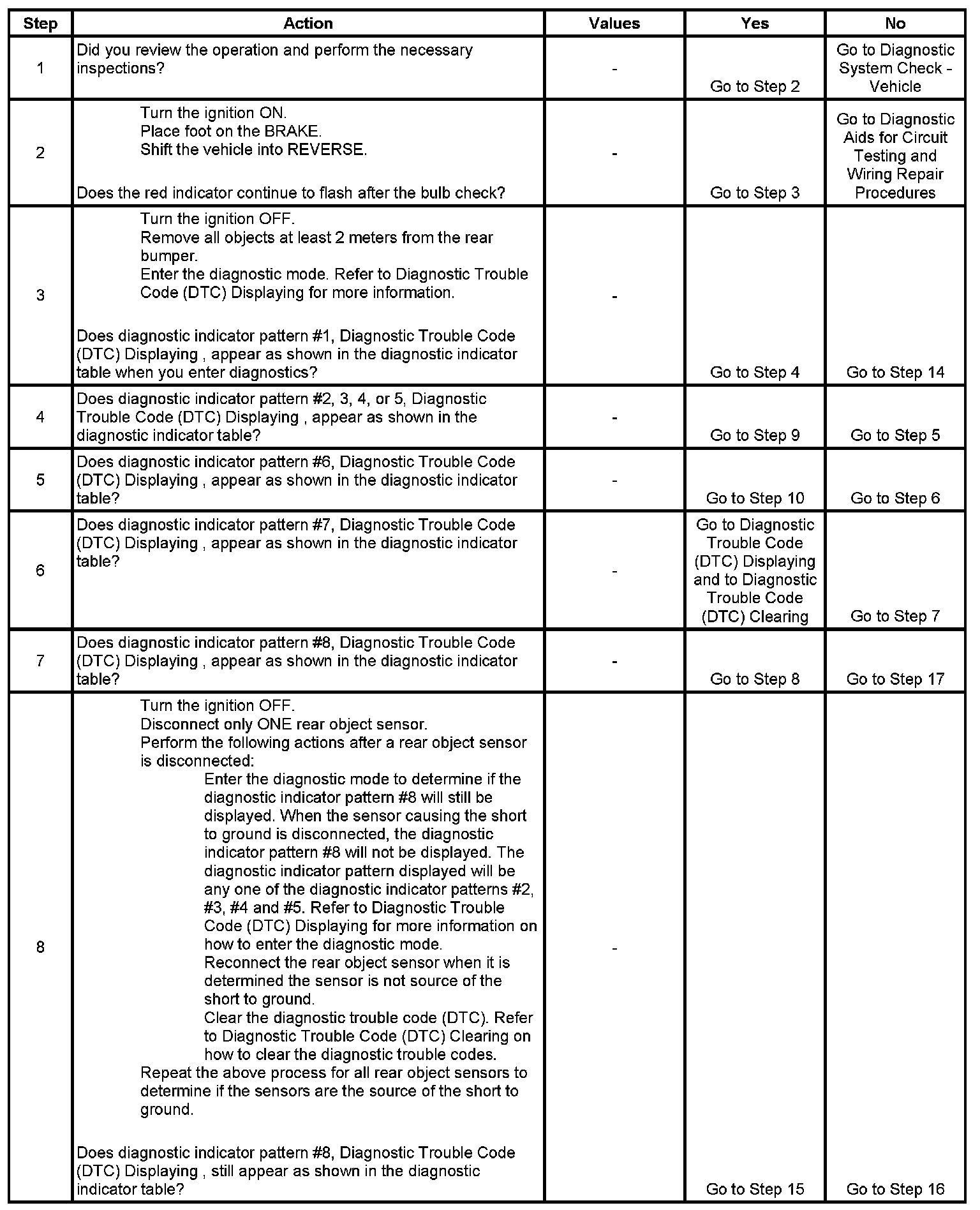

Step 1 - Step 8:

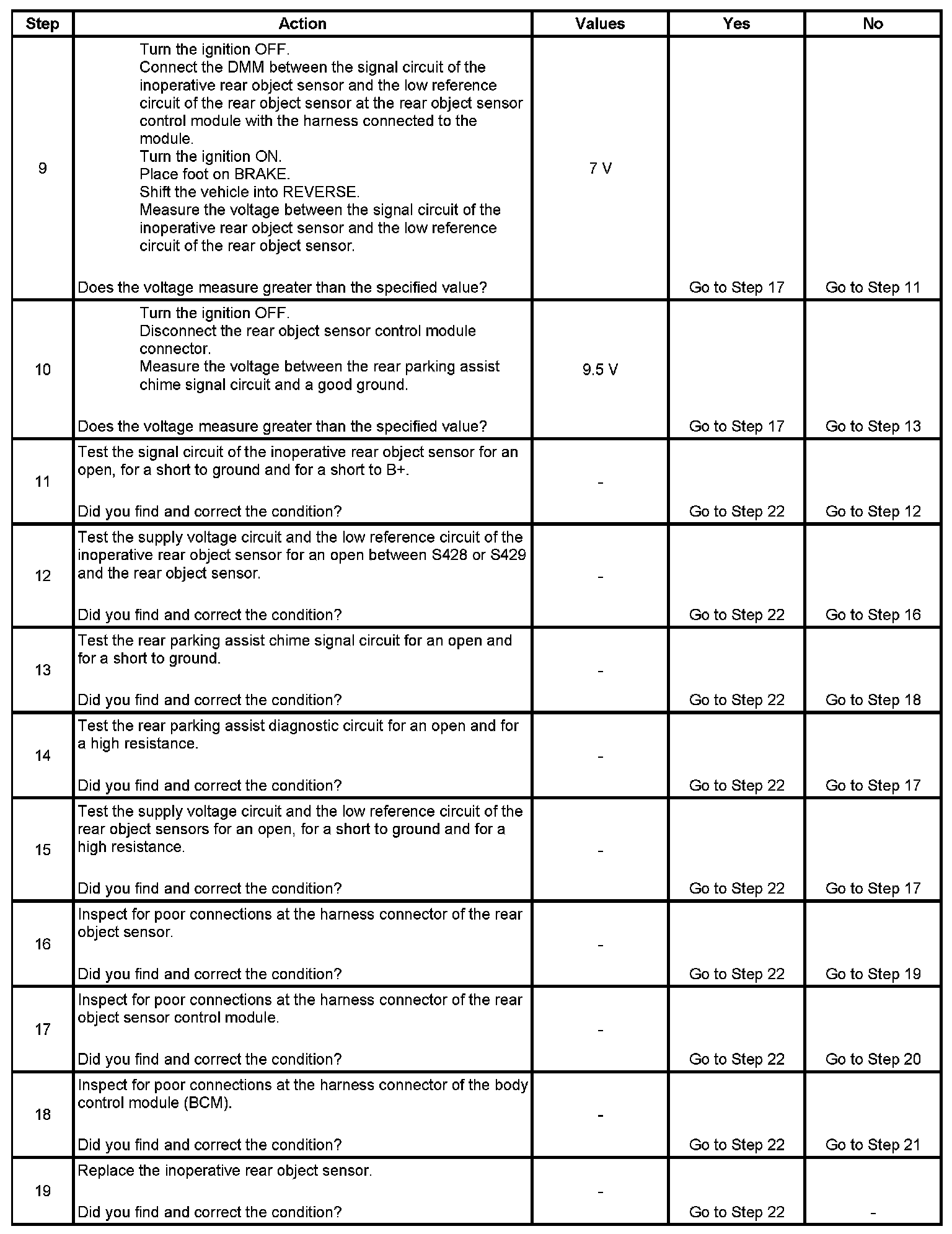

Step 9 - Step 19:




Step 20 - Step 22:
