Radio Antenna Cable Extension Cable Replacement



Radio Antenna Cable Extension Cable Replacement

Removal Procedure




1. Remove the instrument panel insulator.
2. Remove the radio.
3. Disconnect the antenna extension lead from the back of the radio.
4. Remove the cowl side trim panel.




5. Disconnect the antenna cable from the antenna extension lead.

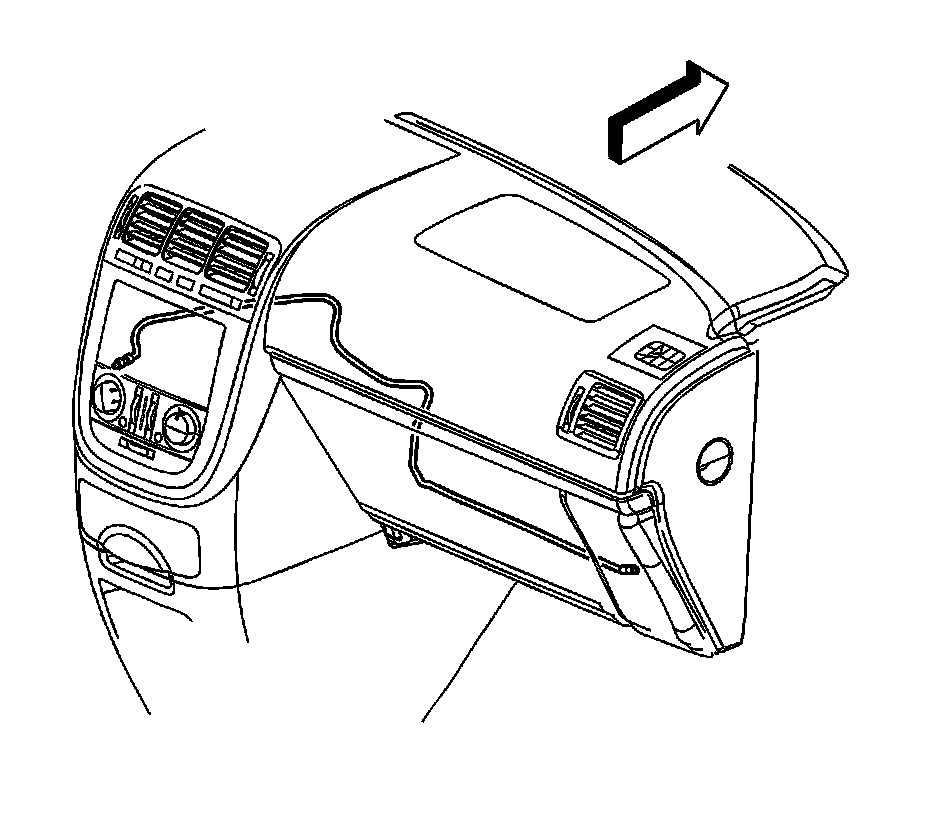

6. Note the routing of the antenna extension lead.
7. Remove the antenna extension lead from the vehicle.

Installation Procedure




1. Route the antenna extension lead in the vehicle as noted in the removal.
2. Connect the antenna cable to the antenna extension lead.




3. Install the cowl side trim panel.
4. Connect the antenna extension lead to the radio.
5. Install the radio.
6. Install the instrument panel insulator.
